Revolutionizing VFD Installation: The E200 Custom Mounting Lifter for Enhanced Safety and Precision



In the world of industrial automation and manufacturing, the Variable Frequency Drive (VFD) is a cornerstone of efficiency and control. These sophisticated electronic devices, however, present a significant material handling challenge. They are not only heavy and bulky but also expensive and sensitive. For one of our clients in the advanced manufacturing sector, the process of installing these crucial components into large electrical cabinets had become a major bottleneck, fraught with risks to both personnel and equipment.

This case study explores the challenges our client faced and how Sinolift engineered a bespoke solution—the E200 VFD Mounting Lifter—to transform their installation process from a high-risk, multi-person task into a safe, efficient, and precise one-person operation.

The Customer's Challenge: A Problem of Weight, Precision, and Safety

Our client’s core issue was not simply moving a VFD from point A to point B. The real challenge lay in the final, critical step: mounting the VFD inside an electrical cabinet. This process demanded a unique combination of strength, stability, and millimeter-level accuracy.

Their existing workflow highlighted several critical pain points:

• Extreme Physical Strain and Injury Risk: VFDs for their applications ranged in weight up to 100kg (220 lbs). The installation required two or even three technicians to manually lift, hold, and align the unit, often at awkward heights and angles. This created a significant risk of musculoskeletal injuries, particularly back strain, which is a leading cause of workplace absenteeism. The potential for a dropped unit also posed a severe risk of foot and hand injuries.
• Lack of Precision and Equipment Damage: Aligning the mounting holes on the back of a heavy VFD with the corresponding threaded holes inside a cabinet is an incredibly difficult task when done manually. Technicians relied on guesswork and brute force, leading to frequent scraping and scratching of both the VFD's casing and the cabinet's protective powder-coated finish. This cosmetic damage was unacceptable for high-value equipment, and occasionally, misalignment led to cross-threaded screws, compromising the integrity of the installation.
• Operational Inefficiency: The need for multiple skilled technicians for a single installation created a significant labor bottleneck. It was a slow, inefficient process that tied up valuable personnel who could have been performing other critical tasks. The coordination required between the team members often led to delays and frustration, directly impacting production line throughput.
• Inconsistent Results: The quality and speed of each installation depended heavily on the experience and physical strength of the team on duty. This lack of standardization made it impossible to predict task duration and maintain a consistent workflow, a critical issue in a tightly scheduled production environment.

The client realized that a standard pallet stacker or lifting table was not the answer. They needed a highly specialized tool—a mobile, powered, and precise “assistant” that could securely handle the VFD and provide the fine control necessary for a perfect installation every time.

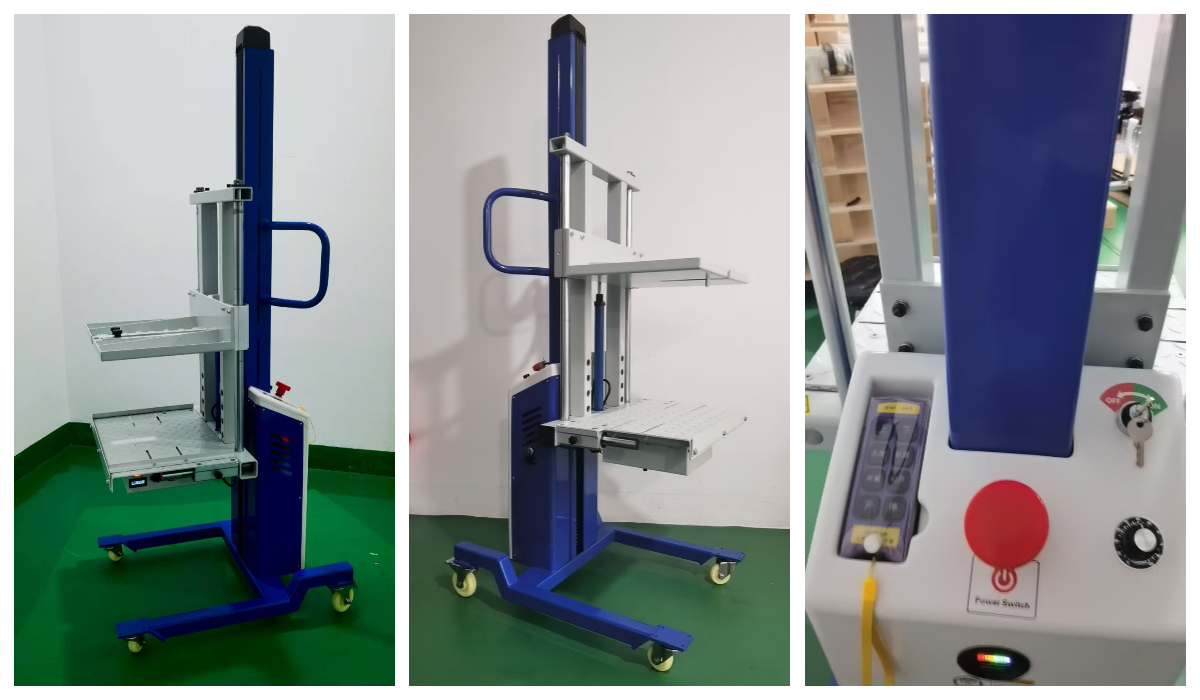

The Sinolift Solution: The E200 VFD Mounting Lifter

After a thorough consultation and analysis of the client's workflow and specific VFD dimensions, Sinolift's engineering team designed and built the E200 VFD Mounting Lifter. This custom-engineered device is far more than a simple lifter; it is an integrated installation work station designed to address every one of the client's challenges.

The solution was broken down into two core components: the Auxiliary Lifting Cart and the Custom Clamping Fixture.

Key Features and Specifications of the E200 System

1. The Auxiliary Lifting Cart: The Foundation of Power and Mobility

The base of the solution is a compact yet powerful electric lifter, engineered for stability and ease of use in a workshop environment.

• Robust Lifting Capability: With a rated load capacity of over 100kg and a maximum lifting height of 1500mm (measured to the bottom of the fixture), the cart easily handles the heaviest VFDs and elevates them to the necessary installation height.
• Efficient and Smooth Operation: The lifter is powered by a maintenance-free battery and a high-performance DC motor, providing a smooth and controlled lifting speed of ≥35mm/s. This allows the operator to raise the VFD quickly but without jarring movements.
• Compact Footprint: Designed with a footprint of less than 1 square meter, the E200 navigates narrow aisles and tight workspaces with ease. Universal casters on the front and braking casters on the rear ensure both effortless maneuverability and rock-solid stability during the critical installation phase.
• Extended Duty Cycle: A fully charged battery supports over 100 full lifting and clamping cycles, ensuring the E200 can operate through an entire shift without interruption for recharging.

2. The Custom Clamping Fixture: The Heart of Precision and Security

This is where the true innovation of the E200 lies. The custom fixture was designed to act as a secure, adjustable pair of hands, providing the fine control that manual lifting could never achieve.

• Versatile and Secure Clamping: The electrically powered upper and lower clamps are synchronized to securely grip VFDs of varying sizes, accommodating a dimensional range of L(300-600mm) x W(250-500mm) x H(200-400mm). This eliminated the need for different equipment for different product models.
• Precision Fore-Aft Adjustment: Recognizing the critical need for fine-tuning, the fixture incorporates a manual push-pull sliding mechanism, similar to a drawer slide. This allows the operator, after lifting the VFD to the correct height, to gently slide the entire unit forward by up to 100mm to perfectly align the mounting holes. A locking button secures the slide, preventing accidental movement.
• Protection-First Design: Key design elements focus on preventing damage. The support plate extends beyond the support legs, ensuring that no part of the lifter can accidentally contact and scratch the cabinet. Furthermore, detachable L-shaped guards on the front of the fixture act as a "mistake-proofing" measure, preventing the VFD from sliding forward and falling.
• Designed for Tight Spaces: The entire upper clamping frame and plate have a combined height of less than 50mm. This slim profile is critical, as it ensures that once the VFD is mounted, there is enough clearance (approximately 100mm) for the operator to release the clamps and easily withdraw the lifter from the cabinet.
• Rapid Changeover: The client handled multiple VFD models. The E200 was designed for flexible manufacturing, with a quick-change system allowing a technician to swap out the clamping fixture for a different size in under 10 minutes.

3. A Holistic Approach to Safety

Beyond its mechanical capabilities, the E200 was built with a comprehensive safety architecture.

• Structural and Electrical Integrity: The unit is built with high-strength carbon steel. Critical electrical components are rated to IP54 for dust and water resistance, and the system includes overload protection and an emergency stop button. The battery meets all industry safety and explosion-proof standards.
• Operational Safety: Hard limit switches prevent the lift from over-traveling. An audible and visual alarm signals when the unit is in motion. Most importantly, a "mistake-proofing" selector switch was added to the control box. The operator must choose between two modes: "Lift Only" or "Lower Only." This simple but effective feature prevents accidental lowering of the heavy load, a critical safety measure when an operator's hands are near the mounting area.

Results: A Transformation in Efficiency, Safety, and Quality

The introduction of the Sinolift E200 VFD Mounting Lifter delivered immediate and profound benefits to the client.

• Vastly Improved Workplace Safety: The risk of musculoskeletal injuries from heavy lifting was completely eliminated. The stable, secure clamping and controlled movements of the lifter removed the danger of dropped equipment, creating a much safer environment for technicians.
• Dramatic Increase in Efficiency: What was once a slow, three-person task became a swift, one-person job. This freed up two skilled technicians per installation, allowing them to be redeployed to other value-added tasks and significantly boosting the overall productivity of the assembly line.
• Enhanced Installation Quality: The precision of the E200’s lifting and fine-adjustment controls allowed for perfect alignment every time. This eliminated the scratching and scraping of VFDs and cabinets, improving the finished quality of the product and reducing rework costs.
• Improved Employee Morale: Technicians were relieved of a physically demanding and stressful task. The E200 empowered them to work more safely and efficiently, leading to higher job satisfaction.

The E200 VFD Mounting Lifter is a testament to Sinolift’s philosophy: the right tool doesn't just lift an object, it elevates the entire process. By listening closely to our client's unique challenges, we were able to engineer a custom solution that delivered returns in safety, productivity, and quality far beyond the initial investment.
