Case Study: Eliminating Strain with the Sinolift Self-Locking Rotorcraft Tow Tugger

Client: Confidential FBO (Fixed-Base Operator) Ground Crew, specializing in rotary-wing maintenance.

Product: Sinolift ML-Series Tow Tugger, customized with a proprietary self-locking mechanism.

Challenge: Minimizing operator injury risk and enhancing safety while moving Rotorcrafts on sloped hangar floors.

The Daily Challenge: Muscle, Momentum, and Risk

Ground crews and aircraft owners know the physical toll of moving planes. Getting an aircraft out of a hangar and onto the runway requires significant physical effort. The process involves overcoming four critical forces: Starting Force, Sustained Force, Turning Force, and Stopping Force.

Of these, the most dangerous for the human body are the Starting Force and Stopping Force. When you initiate movement, you must overcome inertia, friction, and gravity. This requires a huge, sudden burst of effort. If your body twists while you push or pull, you risk immediate muscle strain or a debilitating back injury.

The problem is compounded when the airplane is a Rotorcraft. Rotorcrafts often need to be maneuvered into tight spaces. Crews are sometimes forced to push or pull on skids or airframes. This results in asymmetric and uncomfortable body postures. The exertion of twisting and pulling heavy objects in an awkward stance is a recipe for muscle tears and repetitive stress injuries.

The ground crew at our client's facility faced an additional, critical safety hazard. Their hangar floor had a slight but noticeable slope necessary for drainage. This slope meant that every time a Rotorcraft was unchocked, gravity immediately added a significant Sustained Force that the operator had to constantly fight.

Standard tow Tuggers are a vast improvement over manual pushing. However, even with a standard powered tug, the operator still has to engage the brake every time the tug stops. On a slope, if the operator hesitates or momentarily loses focus, the heavy aircraft can begin to roll. This forces the operator to instantly overexert themselves to engage the brake or reposition the chocks. The physical strain is considerable. The risk of an accident is high.

Sinolift’s Ergonomic Solution: Customization for Control

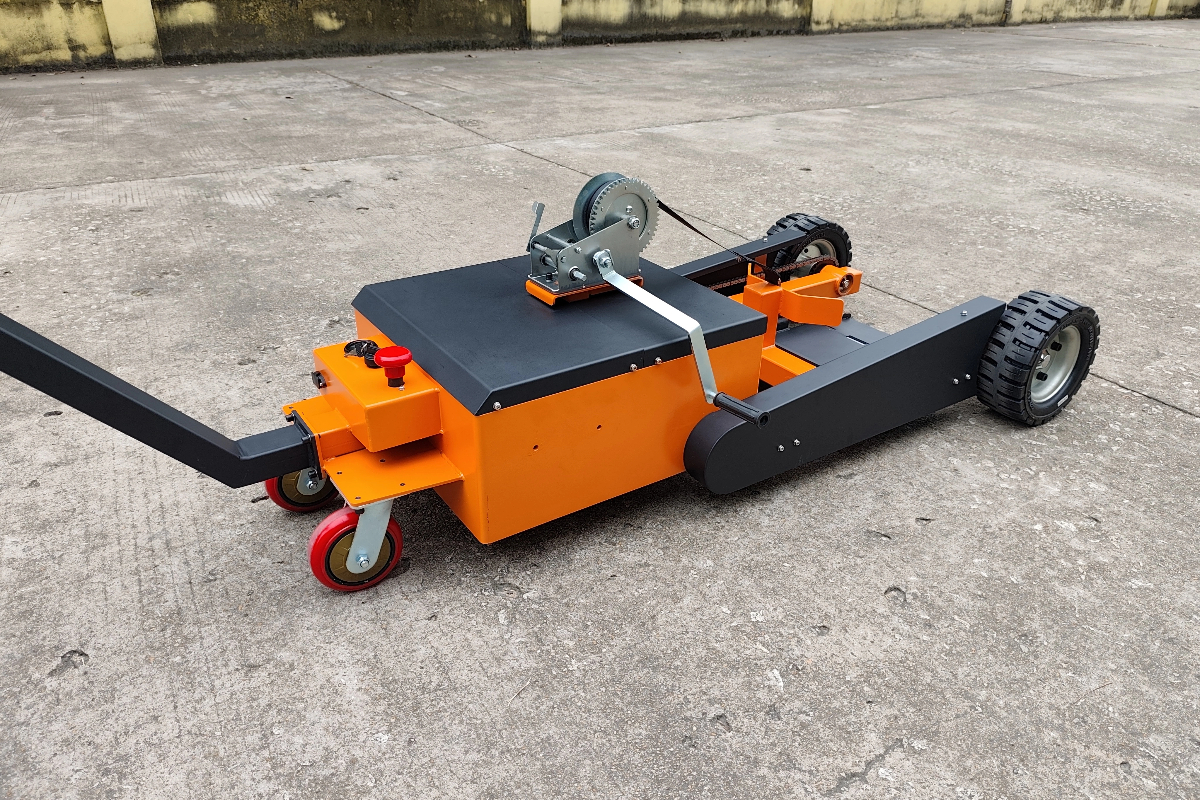

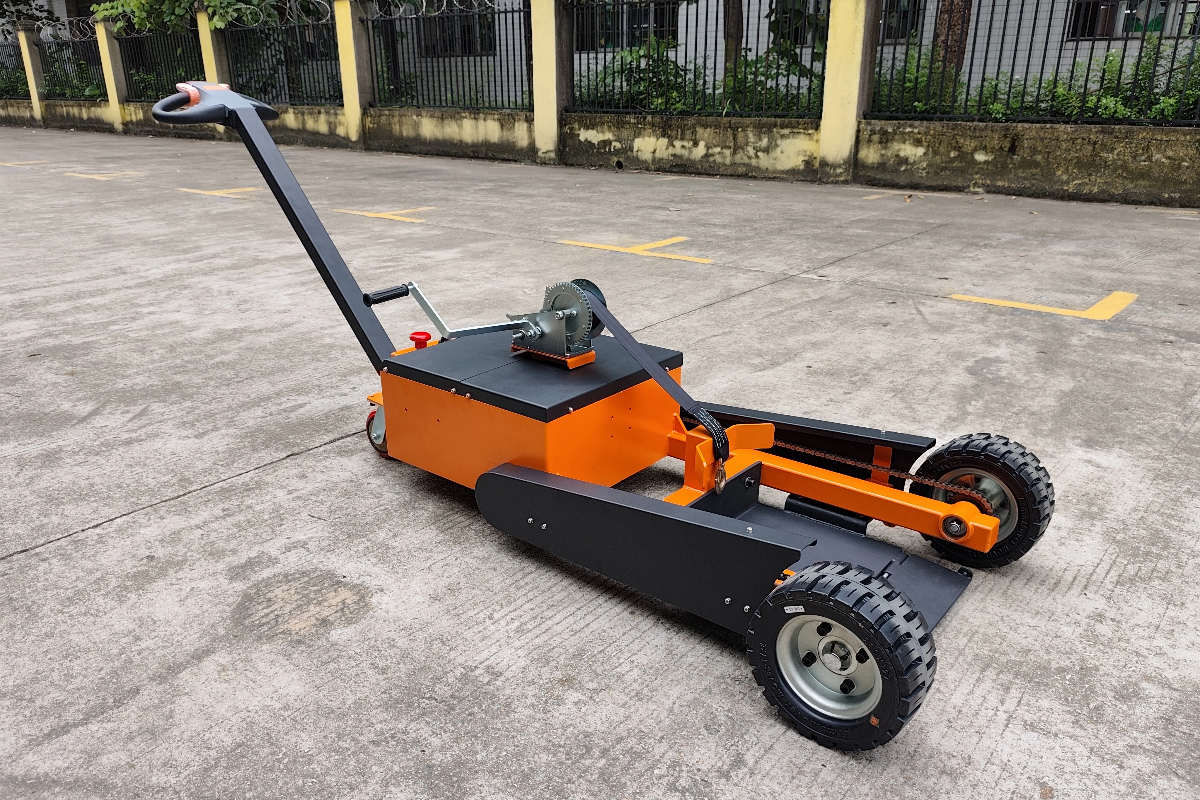

Our client was already using a standard Sinolift ML-Series walk-behind Tugger. They loved its reliability, tight turning radius, and clear visibility. However, they needed to completely eliminate the danger posed by the sloped floor and the high-effort Stopping Force requirement.

They approached Sinolift with a specific request: integrate a feature that would immediately and automatically lock the Tugger and the attached Rotorcraft the moment the forward or reverse throttle was released. They needed a Self-Locking Rotorcraft Tow Tugger.

Sinolift’s engineering team saw this as a perfect opportunity to apply principles of ergonomic design. Ergonomics directs force with maximum efficiency. By eliminating the need for the operator to physically react to or manually engage a brake against the force of gravity, we could reduce physical effort to an absolute minimum.

We took the robust platform of our ML-Series Tugger and designed a specialized self-locking mechanism. This mechanism works in direct concert with the throttle controls.

Here is how the customized system works:

1. The operator engages the forward or reverse control.
2. The Tugger moves the Rotorcraft smoothly into position.
3. The moment the operator releases the control, the self-locking mechanism activates instantly. It holds the entire load—Tugger and Rotorcraft—firmly in place.

This action is immediate and absolute. It removes the operator's need to apply any Stopping Force at all. The machine handles the counteraction against gravity and inertia automatically. This ensures the aircraft cannot drift or roll away on the slope.
