Precision Handling Perfected: Introducing the Customized Roll aand Reel Stacker with Diamond Pallet Fork

Handling large, heavy cylindrical items like rolls, reels, and coils presents a unique challenge in logistics and warehousing. Standard material handling equipment, such as conventional pallet stackers, often struggles to securely lift and transport these unconventional shapes, leading to safety risks and potential product damage.

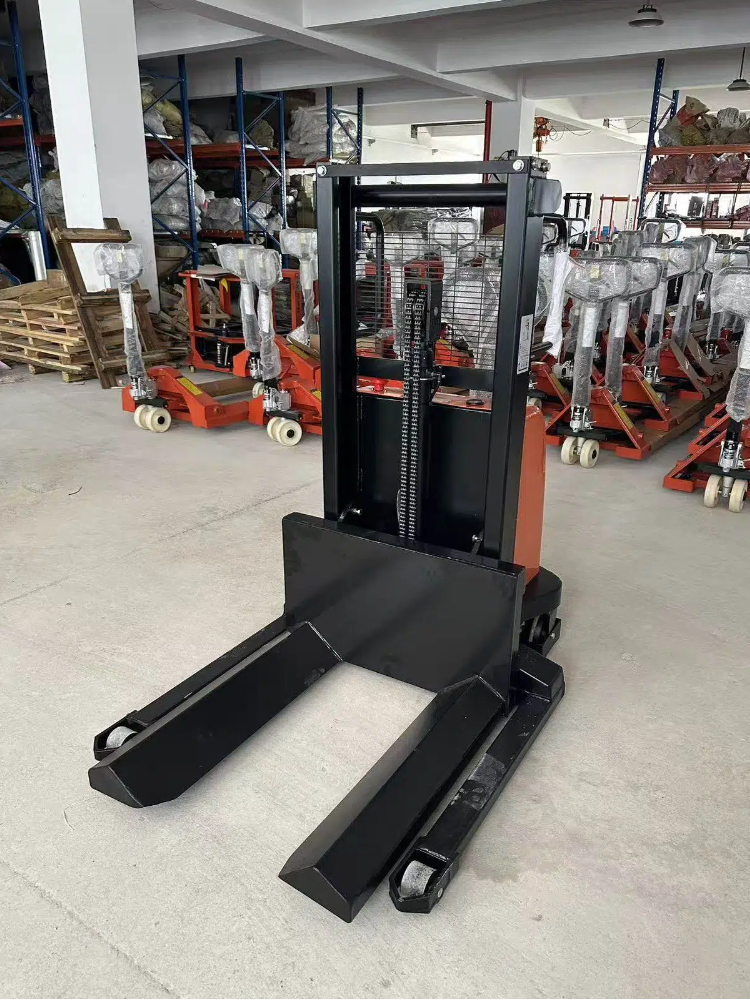

We recently developed a tailor-made solution for one of our valued clients, transforming a standard electric stacker truck into a specialist Roll and Reel Stacker. The key to this innovation? Replacing the conventional forks with a bespoke Diamond Pallet Fork attachment. This customization allows businesses to safely and efficiently manage their cylindrical inventory using the versatility and compactness of an electric stacker.

The Power of Customization: Solving the Cylindrical Load Problem

Our client needed an efficient way to stack and move large rolls of material within their facility. Traditional fork extensions or makeshift solutions were inadequate, compromising both safety and the integrity of the valuable rolls. Our engineering team addressed this directly by custom-designing the Diamond Pallet Fork.

This specialized fork configuration provides a secure, cradling grip on the rounded surface of the load, preventing slippage or rolling during lifting and transportation. This single customization immediately turns a multi-purpose machine into a dedicated roll and reel handler, offering a powerful, cost-effective alternative to larger, more expensive, and less maneuverable dedicated roll handlers.

Unlocking Key Benefits with the Customized Stacker

The Roll and Reel Stacker with Diamond Pallet Fork delivers a range of significant benefits that improve operational efficiency, safety, and inventory management:

1. Enhanced Safety and Stability

Safety is paramount, especially when handling heavy or high-value loads. The unique shape of the Diamond Pallet Fork is engineered for optimal load retention. By providing maximum contact and a secure 'hug' to the cylindrical load, it dramatically reduces the risk of the roll shifting or falling during lifting, moving, and stacking. This superior stability ensures a safer working environment for operators and protects your materials from costly damage.

2. Versatility in Power and Operation

Our customized solution offers flexibility to meet different operational needs and budgets. Customers can choose between a cost-effective manual hydraulic model for occasional use or a fully electric model for high-frequency operations. The electric version retains all the high-performance features of our standard stackers:

• Powerful Lifting: A robust 1.6KW lifting motor powers quick and efficient vertical movement, minimizing cycle times.
• Precision Control: The lifting system includes automatic deceleration during heavy load descent, ensuring the smooth, controlled placement of valuable reels onto their stacks or workbenches.

3. Compact and Agile Design

Unlike bulky, dedicated roll handling forklifts, our stacker is designed for tight spaces. Its compact footprint makes it perfect for maneuvering in narrow aisles, congested workshops, or areas with limited floor space. This agility allows for maximum use of vertical storage, optimizing warehouse capacity.

4. Adaptability to Infrastructure

For facilities requiring maximum stability and the ability to handle various pallet or reel sizes, we offer the option to customize the machine with straddle legs. This configuration allows the machine to straddle the load, providing increased stability for heavier or wider reels, without sacrificing the stacker’s inherent maneuverability.

High-Performance Standard Features

The customized Roll and Reel Stacker is built on the proven framework of our reliable semi-electric line, inheriting a host of high-quality standard features:

• Durable Construction: Integrated stamped steel plate forks, despite their diamond modification, maintain structural integrity and durability. The adjustable fork width, typically from 330 to 640mm, offers flexibility for various reel diameters.
• Operator Focus: The machine includes an ergonomically designed, rubber-coated handle for comfortable operation and reduced strain.
• Reliable Power: An external charger with an advanced aviation connector ensures high safety and easy operation. A precise battery level indicator prevents unexpected downtime.
• Secure Movement: A mechanical brake guarantees secure stopping under all conditions. High-strength all-nylon steering wheels (size 180*50) provide high load capacity and flexible steering, complemented by universal wheel protection and safety guards.
• Safety Assurance: The visible, easily accessible emergency stop button offers instant power cutoff for immediate safety assurance.

A Smart Investment in Specialized Handling

By modifying a standard stacker with the Diamond Pallet Fork, our client achieved a tailored material handling solution without the enormous capital outlay of a completely new, purpose-built vehicle. They gained the precision required for cylindrical loads, the efficiency of an electric machine, and the compactness needed for their space—a truly smart investment that pays dividends in safety, productivity, and reduced product damage.

Seeking a Standard Solution?

If your focus is primarily on conventional pallet stacking, you may be interested in our core model: the SPN15SL semi-electric stacker truck with straddle legs. The SPN semi-electric stacker truck is ideal for low-frequency stacking operations. With a maximum lifting height of 3000mm, it offers an economical alternative to vehicles equipped with full drive motors.
