When standard handling equipment falls short of the precision demanded by advanced manufacturing, innovation must bridge the gap. This case study details how SINOLIFT engineered a custom Semi-Electric Hydraulic Clamp Rotating Lifter to solve the critical handling challenges of a premier precision component manufacturer, transforming their operations with targeted, intelligent design.

Customer Challenges

Our client is a leading manufacturer of high-end precision components. Their daily operations involve the frequent and highly accurate handling and positioning of various medium-sized cylindrical or rectangular metal blanks and semi-finished products. These loads typically weigh up to 500kg, require a scratch-free surface, and must be transported, lifted, rotated, and precisely aligned between different workstations on the production line.

The traditional handling methods—such as using forklifts with standard attachments or relying on manual labor combined with overhead cranes—presented several pain points:

• Low Positioning Accuracy: Standard clamps lacked micro-adjustment functions, making it difficult to achieve precise centering and placement, which directly impacted subsequent machining accuracy.
• Cumbersome and Inefficient Operations: Correcting the orientation of loads required multiple vehicle adjustments or manual intervention, leading to long handling cycles.
• Safety Hazards: Manually fixing or adjusting heavy loads posed risks of pinching or dropping. Furthermore, overhead crane operations often had limited visibility, increasing the risk of collisions in dense production lines.
• Limited Adaptability: The customer’s workstations were relatively compact. Traditional large-scale equipment struggled with maneuverability and flexibility in tight spaces.
• Inadequate Load Protection: Rigid clamping methods often risked damaging the delicate surfaces of precision workpieces.

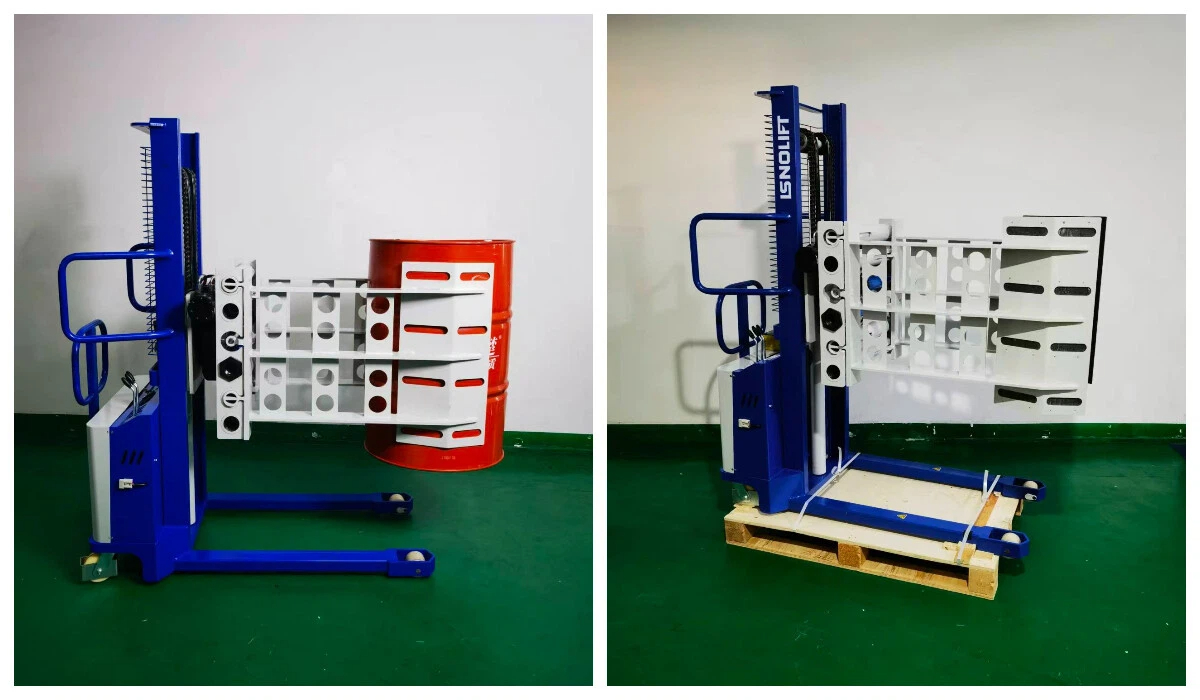

Solution: SINOLIFT Customized Semi-Electric Hydraulic Clamp Rotating Lifter

To address the client’s unique requirements, the SINOLIFT technical team engineered a tailor-made solution: a semi-electric clamp rotating lifter with a 500kg capacity, 1.5-meter lift height, and full hydraulic control. While drawing upon the proven reliability of our standard CTD1000-M700 Semi-Electric Paper Roll Lifter, this lifter was entirely re-engineered from the ground up to achieve unprecedented precision. The core design revolves around "smooth centering, precise positioning, safety, and efficiency," perfectly fitting the client's production environment.

Applicable Scenarios

This custom equipment is the ideal choice for:

• Precision Component Production Lines: Achieving damage-free gripping, lifting, rotation, and precise placement during machine loading/unloading and inter-process transfers.
• Warehouse and Workshop Logistics: Efficiently handling metal coils, formed pipes, large bearings, or regularly bundled materials.
• Assembly Workstations: Smoothly lifting heavy components to the required height and performing 360-degree rotation to facilitate multi-angle assembly by workers.
• Space-Constricted Areas: Navigating flexibly through narrow aisles or crowded workshop floors thanks to its compact design and small turning radius.

Core Advantages of the Custom Product

Compared to standard products, this deeply customized solution offers the following outstanding advantages:

1. Hydraulic Synchronized Side-Shift Clamp: Utilizing a dual-hydraulic cylinder drive to move the clamp arms inward simultaneously. This not only ensures evenly distributed clamping force to protect the load surface but also automatically centers the load. This eliminates the need for manual adjustment, significantly improving positioning accuracy and operational speed.
2. Fully Integrated Hydraulic Control (Clamping, Lifting, Rotating): All core movements—clamping, lifting, lowering, and rotating—are powered by the hydraulic system and centralized through simple control valves. It offers ample power, smooth operation, and stepless speed regulation, effectively preventing load swaying and ensuring high controllability and safety.
3. 360-Degree Hydraulic Rotation: The integrated heavy-duty slewing mechanism allows the operator to easily rotate the load a full 360 degrees while in a lifted state. This feature makes adjusting load direction in narrow spaces effortless, significantly enhancing operational flexibility without the need to move the entire vehicle.
4. Semi-Electric Drive, Robust and Durable: Powered by a 1.6KW drive motor and a large-capacity 12V/100Ah battery, the unit provides sufficient traction and endurance. Operators can move the equipment with minimal effort via a light-touch handle, achieving zero-emission, low-noise clean production.
5. Focus on Safety and Ergonomic Design: The equipment adheres to strict safety standards, integrating multiple safety devices (such as emergency descent valves and anti-collision protection). The ergonomically designed control handle puts all functions within easy reach, reducing operator fatigue and the risk of misoperation.

Conclusion

This customized semi-electric hydraulic rotating clamp lifter does more than just replace the client’s inefficient handling methods; it integrates deeply into their core production process with its precision, flexibility, and safety. It has solved the pain points of precision handling, improved overall production line flow efficiency, and enhanced workplace safety.

Currently, the equipment has passed rigorous pre-shipment performance testing (see the attached testing video) and is about to be delivered to the client for immediate use. SINOLIFT remains committed to providing the most suitable material handling solutions through our innovative non-standard customization capabilities.
