From Strain to Gain: How a Semi-Electric Lifter Solved a Printing Plant's Heavy Roll Dilemma
In the fast-paced world of industrial manufacturing, the ability to move heavy materials safely and quickly is essential. Many companies struggle with handling heavy cylindrical items like film rolls, paper reels, and drums. These items are often bulky, difficult to grip, and heavy enough to cause serious workplace injuries if handled manually. This case study explores how the Sinolift ZJ100 Semi-Electric Drum and Roll Lifter provides a modern solution to these age-old warehouse challenges.
Facing the Realities of Manual Roll Handling
One of our clients in the flexible packaging and printing industry faced significant bottlenecks in their production line. Their daily operations required moving film rolls weighing between 300kg and 500kg. Initially, the workers used basic trolleys or relied on pure physical strength to tilt and load these rolls onto printing presses.
The challenges were clear and costly. First, the risk of employee injury was high. Back strains and foot injuries were becoming a recurring issue. Second, manual handling often led to product damage. If a roll of expensive printing film is dropped or bumped against a hard surface, the entire roll might become unusable. Finally, the process was slow. It took three workers to safely align and mount a heavy reel, which led to frequent machine downtime. The company needed a specialized tool that was compact, powerful, and easy for a single operator to use.
The Sinolift Solution: Precision and Power
After evaluating their workflow, we introduced the Sinolift ZJ100 Semi-Electric Roll / Drum Stacker. This machine was designed specifically to bridge the gap between manual labor and fully automated, expensive systems.

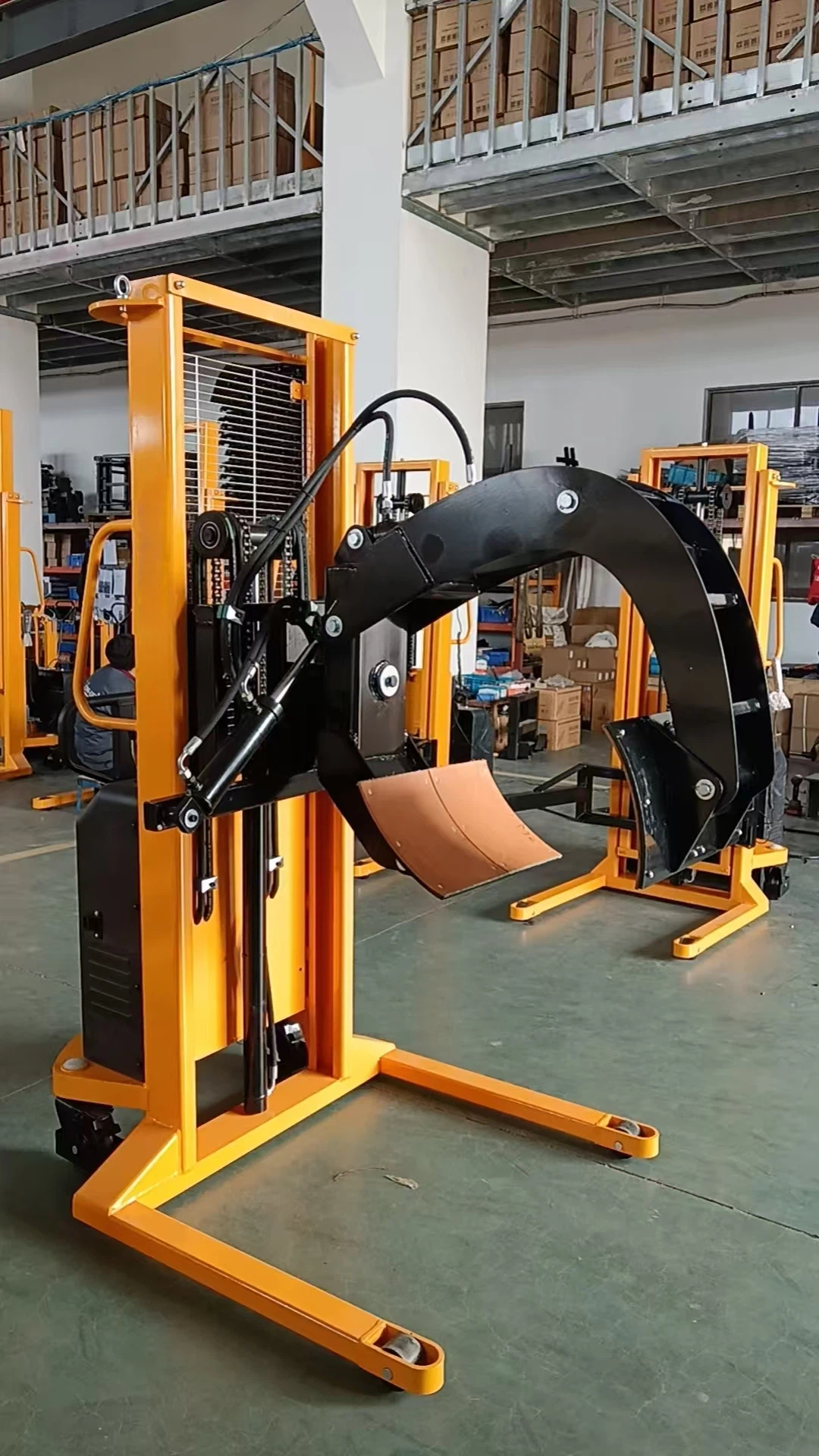

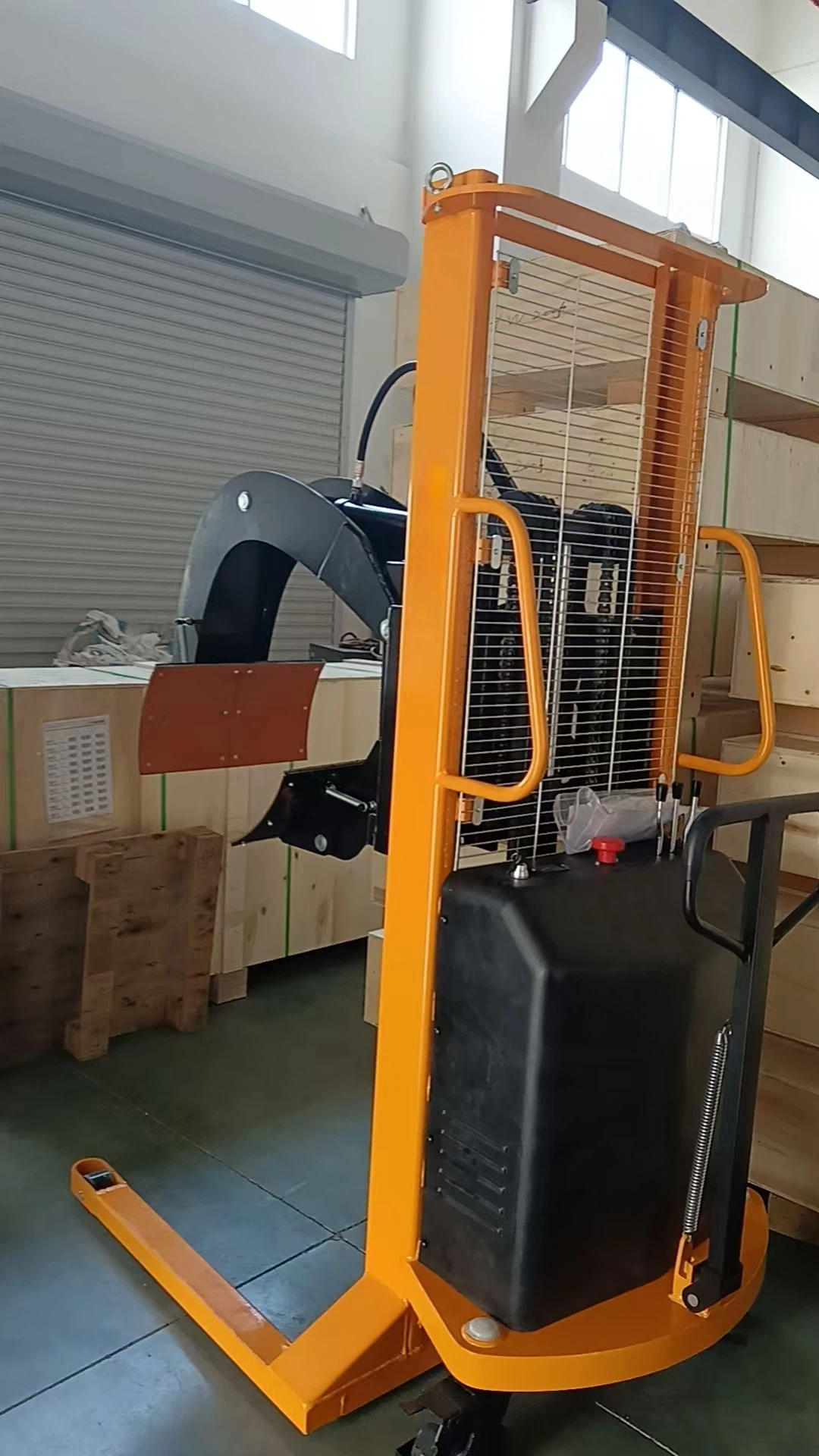

The ZJ100 features a unique "C" frame structure. This frame is manufactured using a special rolling process that ensures maximum stability and safety. Unlike standard lifters, the ZJ100 is equipped with a high-strength hydraulic clamp. This allows the operator to grab a roll directly from the ground. Once the roll is securely clamped, the hydraulic system raises the material and can rotate it by 90 degrees. This rotation is the most critical feature for the printing industry, as it allows rolls to be transitioned from a vertical storage position to a horizontal loading position with total control.
Where the ZJ100 Performs Best
This product is not just for one type of factory. Its design makes it perfect for various "round material" scenarios:
- Printing Industry: Loading heavy paper or film reels onto spindles.
- Packaging Plants: Moving rolls of plastic wrap or aluminum foil.
- Chemical Facilities: Handling standard steel or plastic drums for pouring or transport.
- Textile Mills: Transporting fabric rolls between storage and processing areas.
Because the unit is lightweight and has a tight turning radius of 1400mm, it excels in narrow aisles where a standard forklift cannot reach.
Key Advantages of the Custom ZJ100 Design
The ZJ100 stands out because of its high-quality components and thoughtful engineering. Here are the primary benefits of this custom product:
- Robust "C" Frame Construction: The special rolling process creates a frame that is solid and safe, preventing bending even under maximum load.
- Efficient Hydraulic System: Each unit uses a joint venture hydraulic pump station. This ensures that clamping and lifting are smooth, consistent, and reliable.
- 90-Degree Precision Rotation: The hydraulic rotation allows for easy loading and unloading of round materials, reducing the physical effort required by the operator.
- High-Strength Components: We use wear-resistant cylinder systems and famous-brand battery components (12V/100Ah) to guarantee a long service life and high efficiency.
- Easy Maneuverability: While the lifting is electric, the movement is manual. This makes the unit lightweight and easy to steer in tight corners.
- Versatile Loading Options: With capacity options ranging from 300kg to 500kg, the machine can be tailored to the specific weight needs of your facility.
Technical Data for Reference
Sinolift ZJ100 Semi-Electric Roll / Drum Stacker
- Brand: SINOLIFT
- Model: ZJ100
- Loading Capacity: 300kg / 400kg / 500kg (Options)
- Max. Lifting Height: 1450mm / 2300mm (Options)
- Forklift Turning Radius: 1400mm
- Suitable Roll/Drum Diameter: 600mm ~ 800mm (Standard) / Customized Available
- Maximum Handling Diameter: 600mm
- Front Wheels: Ø80mm * 55mm
- Balance Wheels: Ø150mm * 50mm
- Lift Motor: 1.6KW
- Battery: 12V / 100Ah
- Operation Type: Hydraulic clamping, hydraulic rotation, manual moving, electric lifting.
