How to Choose a Counterbalanced Stacker: A Practical B2B Buyer’s Guide
How to Choose a Counterbalanced Stacker: A Practical B2B Buyer’s Guide

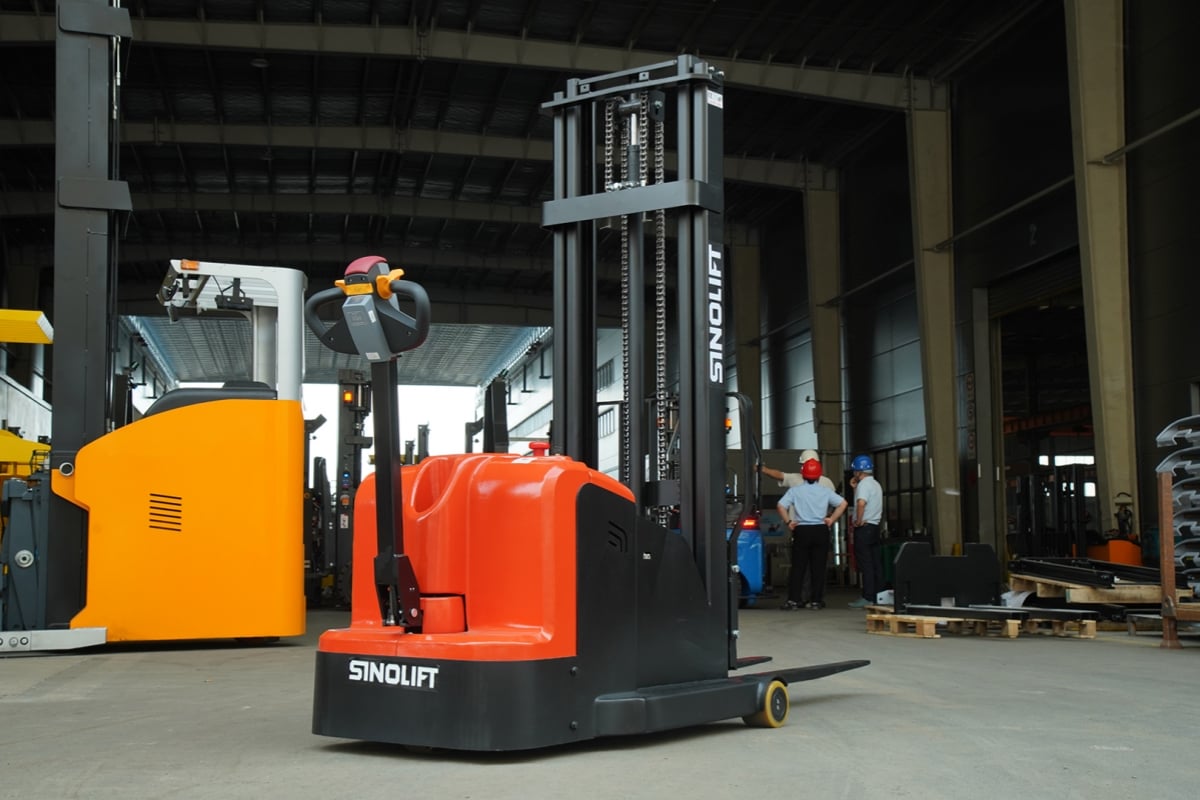

A counterbalanced stacker is often shortlisted when a warehouse must handle closed-bottom pallets, load trailers, or place goods where straddle legs cannot enter. The hard part is not finding a truck with the right headline capacity. It is confirming that the truck can lift the real load, at the real load center, to the required height, while still turning inside the available aisle and completing a full shift safely.
Buying from a catalogue alone can create expensive constraints. A 1,000 kg nameplate does not guarantee 1,000 kg at maximum lift. A compact width does not guarantee a compact turning envelope. “Suitable for any pallet” does not remove the need to verify fork entry, fork spread, load stability, and pallet condition.
Technical Core: How a Counterbalanced Stacker Works
A counterbalanced stacker places a counterweight behind the drive axle to oppose the forward load moment. It therefore needs no outriggers or load arms beside the forks. The forks can approach many open, closed-bottom, and perimeter-base pallets without front-leg interference, provided the pallet has suitable fork-entry openings. That geometry is the main difference from a straddle stacker.
The governing principle is load moment: load mass multiplied by its horizontal distance from the truck’s stability reference point. Suppose a truck is rated for 1,000 kg at a 500 mm load center. Moving the center to 600 mm increases the load-side moment by 20%. Dividing 1,000 × 500 by 600 gives 833 kg only as a rough moment illustration—not an approved operating capacity. The truck must be assessed against the manufacturer’s residual-capacity plate.
Lift height adds another constraint. Mast deflection, forward tilt, attachments, uneven loading, braking, turning, and floor slope can all reduce the stability margin. Ask for a chart showing capacity at each specified lift height and load center, including every attachment. ISO 3691-1 covers safety requirements and verification for self-propelled industrial trucks, while ISO 22915-4:2018 defines stability tests for pallet stackers and related trucks up to 5,000 kg rated capacity. Buyers should confirm which published standard and regional rules apply when the truck is delivered.
Chassis and Counterweight
Removing outriggers improves forward access, but the counterweight usually makes the chassis longer and heavier. Check overall length, service weight, axle loads, turning radius, and right-angle stacking aisle—not width alone.
Mast and Forks
Simplex, duplex, and triplex masts trade collapsed height, free lift, visibility, and maximum elevation. Specify fork length, section, spread, carriage class, load backrest, mast tilt, and side shift where required.
Traction, Steering, and Braking
AC drive, electronic steering, regenerative braking, electromagnetic parking brakes, proportional lift control, emergency reverse, and creep speed can improve control. Ask how speed is limited with the forks raised.
Battery System
Battery ampere-hours alone do not guarantee runtime. Usable shift time depends on travel, lift cycles, load, gradient, temperature, auxiliary demand, charging windows, and battery condition.
Applications and a Selection Method That Works
1. Start with the Load, Not the Truck
Build a load matrix. Record maximum mass, dimensions, center of gravity, pallet type, fork-entry direction, stability, and handling frequency. Include the longest and most uneven load, not only the average pallet. If drums, reels, dies, or clamps are involved, have the manufacturer approve the attachment and issue a revised capacity plate.
A walkie counterbalance stacker for any pallet should be understood as a compatibility goal, not a literal promise. It can avoid the bottom-board conflict created by straddle legs, yet fork thickness, fork spread, under-clearance, load overhang, and damaged pallets still decide whether entry is safe.

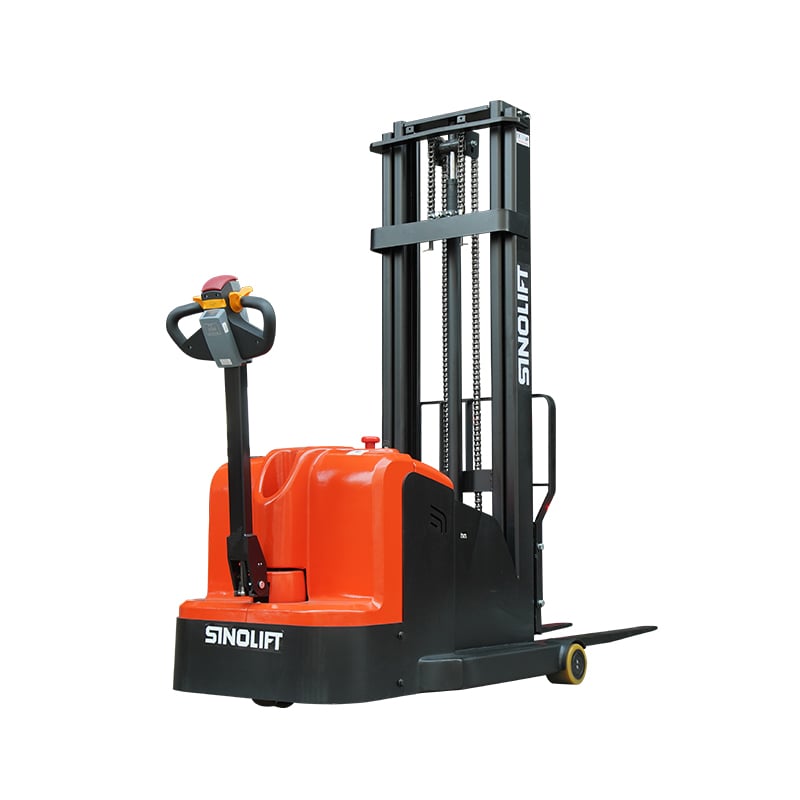

CPDW10 / CPDW12 Counterbalanced Walkie Pallet Stacker
A compact 1.0–1.2-ton counterbalanced walkie stacker designed to handle varied pallet types without front support-leg interference. Lead-acid and lithium-ion options support different operating rhythms.
View Product
2. Map the Complete Route
Measure the right-angle stacking aisle with the intended pallet orientation. Then inspect door heights, rack beams, sprinkler clearance, elevators, ramps, thresholds, dock levellers, trailer floors, turning areas, and pedestrian crossings. Use the manufacturer’s aisle calculation and add an operational safety allowance based on site rules.
For trailer work, confirm concentrated wheel loads and total truck-plus-load mass against the trailer floor and dock-plate ratings. Secure the vehicle before entry. In the United States, OSHA 1910.178 requires truck brakes to be set and rear-wheel chocks used during powered-industrial-truck boarding; it also notes that an uncoupled semitrailer may require fixed jacks to prevent upending.
3. Choose the Operator Format by Travel Demand
A pedestrian walkie unit suits short transfers, controlled speeds, and compact work cells. It keeps capital cost and footprint moderate. Repeated long travel, however, increases walking time and fatigue.
A foldable-platform or stand-on model is better for medium travel and higher cycle counts, provided the route and guarding support it. For long runs, high throughput, high lift, or frequent ramps, compare a rider stacker, reach truck, or sit-down forklift. The lowest purchase price is not economical if labor minutes become the bottleneck.
4. Match Mast Geometry to the Building
Set four values before choosing a mast: maximum fork height, required free lift, maximum collapsed height, and maximum extended height. Free lift matters inside trailers and low mezzanines because the forks can rise before the mast extends. Confirm overhead clearance at every route point.
Do not specify maximum lift with no capacity context. Ask the supplier to state residual capacity at the top rack level for the actual load center. If the pallet is 1,200 mm deep and entered on the 1,000 mm face, its nominal load center may differ from a 1,200 mm fork entry. The load itself may also have an offset center of gravity.
5. Size the Battery from Measured Work
Estimate daily travel distance, lifts by height band, average load, gradients, idle time, and available charging windows. Ask the supplier to model the duty cycle and state every assumption. Then verify the estimate in a site trial.
- Lead-acid: suitable when there is a dedicated charging area, trained maintenance, and enough time for full charging and battery cooling.
- Lithium-ion: suitable for multi-shift or opportunity-charging schedules when the battery and charger are certified as a system and local fire controls are addressed.
- Cold storage: requires confirmed battery output, hydraulic-fluid specification, seals, condensation protection, and allowable temperature range. A generic indoor truck should not be assumed freezer-ready.
6. Compare Solutions on Operational Evidence
| Decision Factor | Traditional Selection | Recommended Application-Engineered Selection |
|---|---|---|
| Pallet access | Assumes one standard pallet. | Verifies every pallet’s entry, under-clearance, fork spread, and load center; no straddle-leg interference. |
| Capacity | Uses rated capacity at the nominal load center. | Uses documented residual capacity at actual height, load center, mast, and attachment. |
| Space | Compares overall width only. | Checks overall length, turning radius, right-angle stacking aisle, collapsed mast height, and route clearances. |
| Efficiency | Uses maximum travel or lift speed. | Models pallets per hour, travel distance, lift height, charging time, and operator walking time. |
| Battery | Selects ampere-hours from a brochure. | Sizes usable energy to the shift and validates charging, temperature, and battery replacement support. |
| Safety | Relies on alarms and an emergency stop. | Adds site risk assessment, visibility review, speed zoning, load testing, inspections, and trained operators. |
| Cost | Compares purchase price. | Compares acquisition, charger, battery, labor, maintenance, downtime, parts, floor wear, and residual value. |
| Acceptance | Signs off on delivery appearance. | Conducts a worst-case site trial and documents pass/fail criteria. |
CPD10W / CPD15W Counterbalanced Electric Stacker
The product specification lists 1,000 and 1,500 kg rated capacities at a 500 mm load center, a 3,000 mm standard lift, and different aisle and turning dimensions by model and platform position. Reconfirm all figures on the final quotation and capacity plate.
View Product
7. Use a Disciplined Purchasing Checklist
Frequently Asked Questions
Is a counterbalanced stacker suitable for every pallet type?
It is compatible with more pallet-base designs than many straddle stackers because there are no front support legs. It is not automatically suitable for every pallet. Verify fork-entry height, opening width, fork length and spread, pallet condition, underside geometry, load overhang, and center of gravity. A physical trial is the safest confirmation.
How much capacity should I buy above my maximum load?
Do not apply a generic percentage margin. Specify the maximum load, actual horizontal and vertical center of gravity, highest lift, mast, attachment, and gradient. Select a configuration whose approved residual capacity exceeds that duty. Extra nominal capacity can add chassis length, weight, cost, and floor loading without solving the real constraint.
Is a counterbalanced stacker better than a straddle stacker?
It is better when outriggers would conflict with pallets, racks, machinery, or trailer loading. A straddle stacker can be shorter, lighter, and efficient when its legs fit around the load. Compare both using the same load matrix, aisle survey, lift height, throughput target, and total-cost horizon.
Do walkie stacker operators need training?
Yes. Legal terminology differs by country, but “no forklift licence required” must never be read as “no training required.” In the United States, OSHA requires employers to ensure powered-industrial-truck operators are competent through training and evaluation, including practical instruction and workplace performance assessment. Local rules may impose additional requirements.
Conclusion: Turn Site Data into a Defensible Purchase
The right counterbalanced stacker provides unobstructed fork access, controlled electric handling, and a smaller operating format than many sit-down forklifts. Its business value appears only when the chosen truck can manage the actual pallet, residual load, rack height, aisle, floor, duty cycle, and charging plan.
Make the purchase decision from measured site data and approved documentation. Compare pedestrian and stand-on configurations against real cycle demand. Then test the final specification with the worst-case load.
Request an Application Review
Send your pallet drawings, load matrix, rack heights, aisle plan, shift profile, gradients, and operating temperature. Request a residual-capacity review, configuration drawing, energy estimate, and site trial before final approval.
