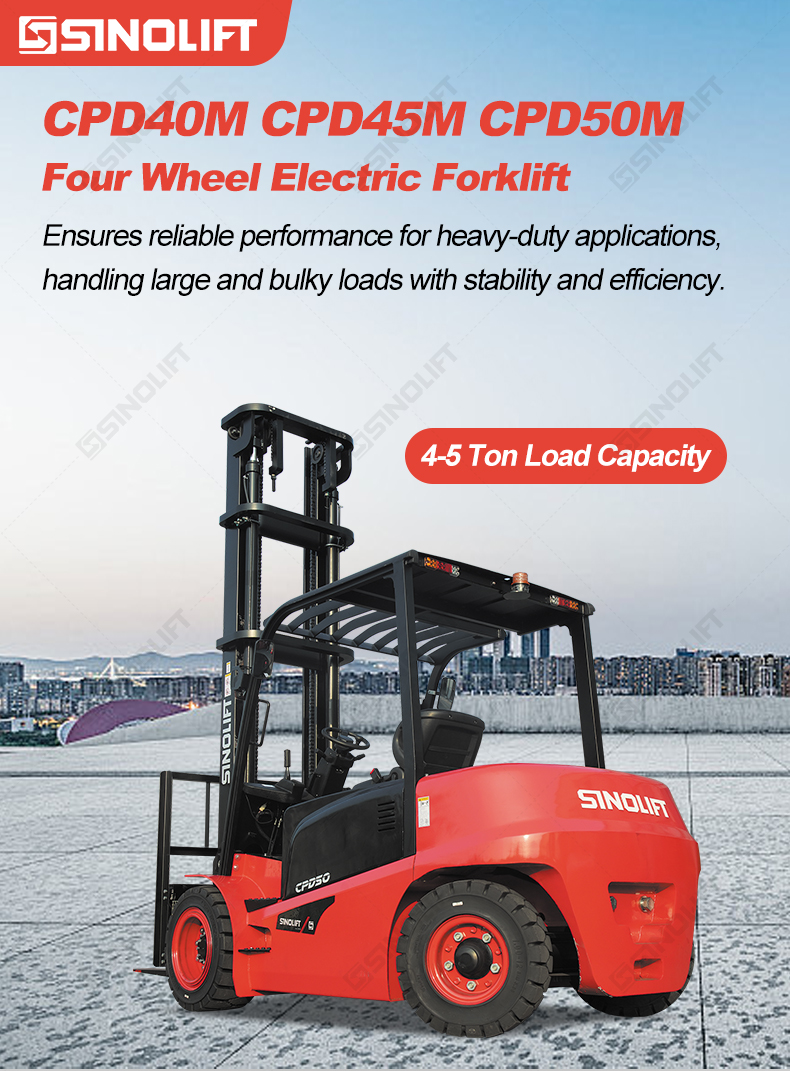

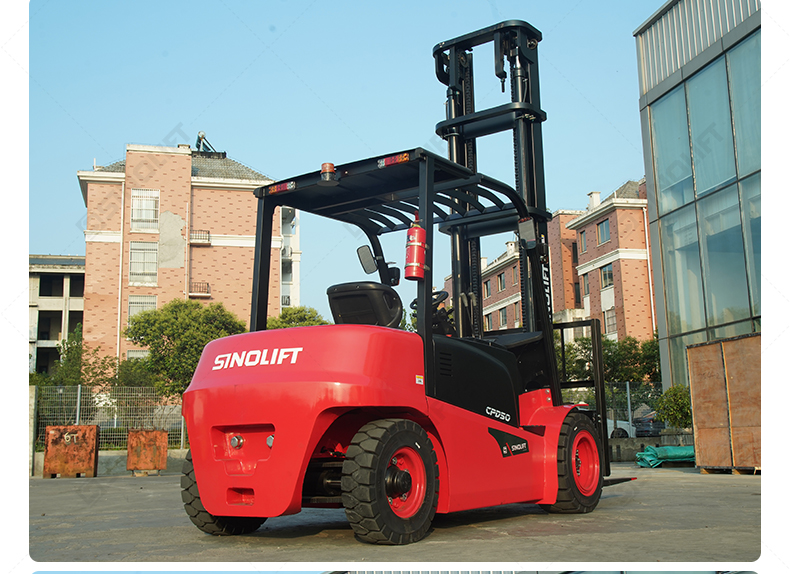

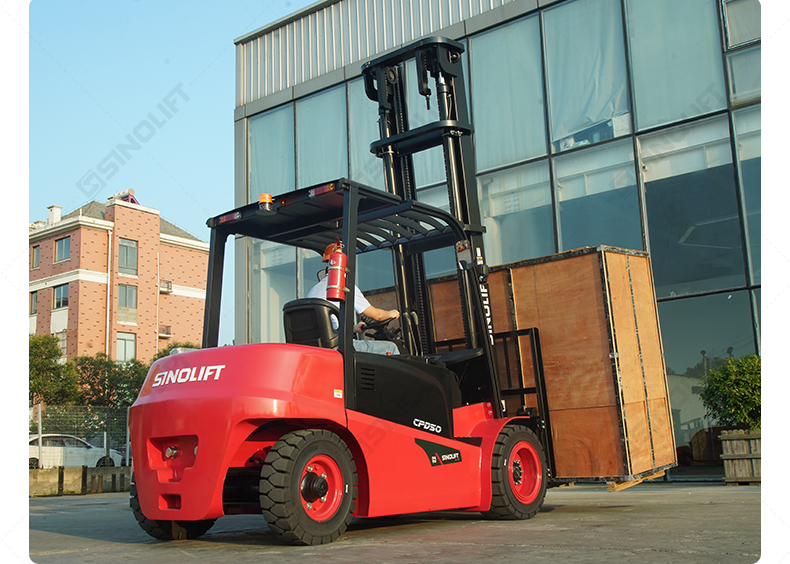

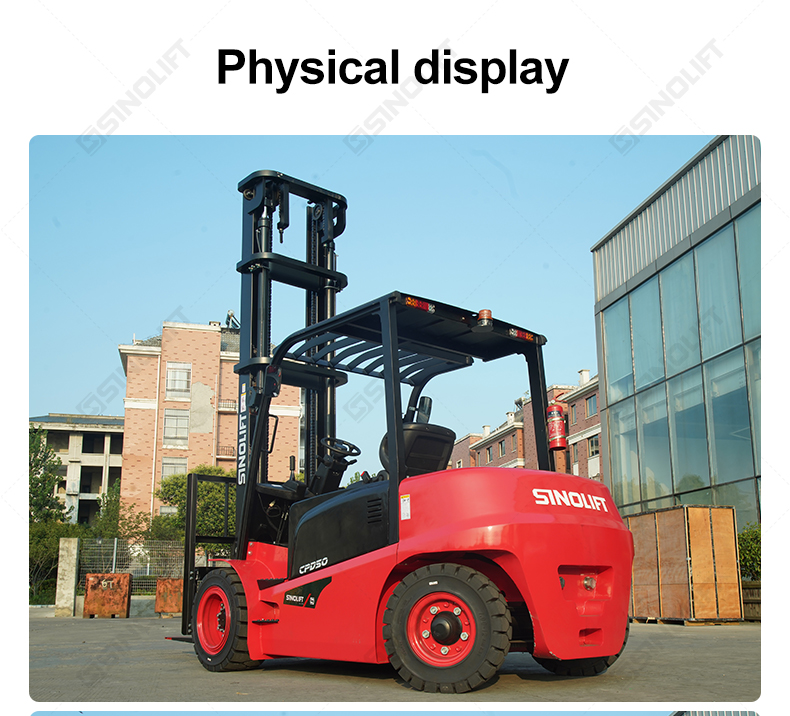

CPD40M CPD45M CPD50M 4-Wheel Counter-balanced Electric Forklift

Fully Hydrostatic Power Steering for Excellent Maneuverability

It features a small-diameter steering wheel with an ergonomically optimized design. The fully hydrostatic power steering mechanism provides excellent maneuverability in switchback operations.

Integrated Turn Signal and Lighting Switch Lever

The turn signal lever and lighting switch are integrated into one unit. It automatically returns to the neutral position when the steering wheel goes back to the straight-ahead position.

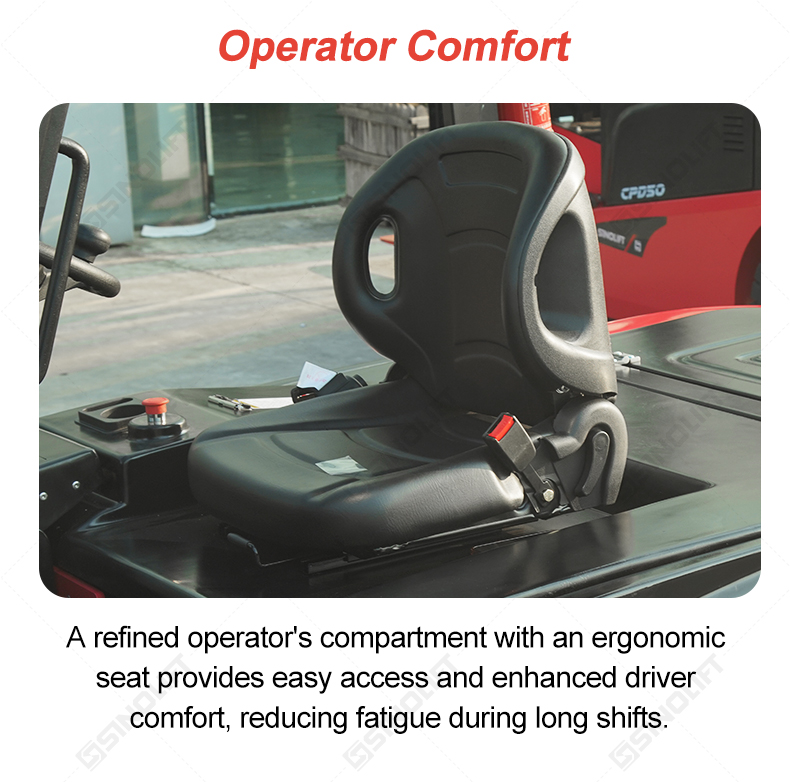

Ease of Access Ensures Maximum Comfort

A large entry step plate with an anti-slip pattern ensures secure footing, even for large safety boots. The spacious, uncluttered floor plate with no trip hazards provides optimal comfort and more legroom.

Optimized Pedal Position and Anti-Slip Pad

The positions of the accelerator and brake pedals have been optimized based on ergonomic principles. The angled floor plate reduces strain on the ankles, while large pedals ensure maximum safety and ease of operation.

Panoramic Rearview Mirrors

A large panoramic mirror provides the operator with a clear and wide view of the rear working area, improving safety and efficiency.

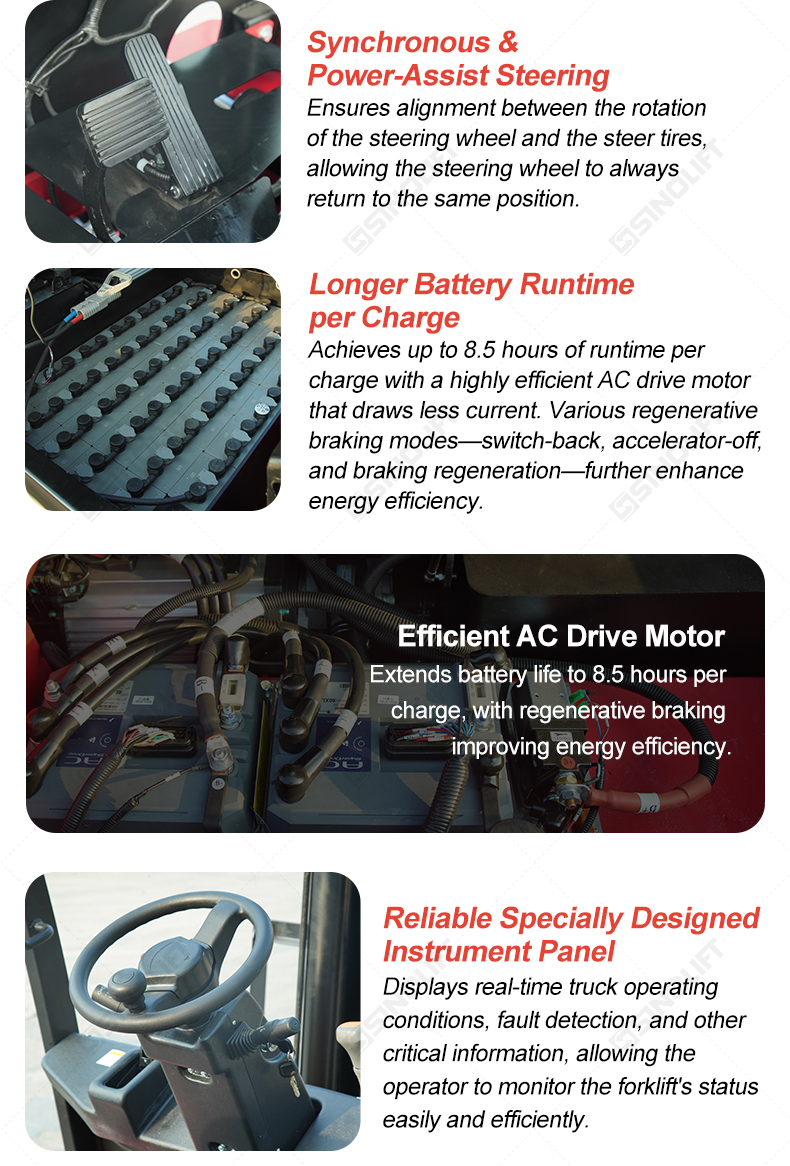

Extended Battery Runtime per Charge

The long (8.5-hour) battery runtime on a single charge has been achieved through a highly efficient AC drive motor that consumes less current. Additionally, various types of regenerative braking—including switch-back, accelerator-off, and braking regeneration—enhance energy efficiency.

Product Specifications


Characteristic	1.1	Manufacturer Brand	SINOLIFT
	1.2	Model			CPD40-MA1	CPD40-MA1Li	CPD45-MA1	CPD45-MA1Li	CPD50-MA1	CPD50-MA1Li
	1.3	Power Type			Acid Battery	Lithium Battery	Acid Battery	Lithium Battery	Acid Battery	Lithium Battery
	1.4	Operation Type			Seated	Seated	Seated	Seated	Seated	Seated
	1.5	Rated Capacity	Q	kg	4000	4000	4500	4500	5000	5000
	1.6	Load Centre	c	mm	500	500	500	500	500	500
	1.7	Front Overhang	L2	mm	520	520	565	565	565	565
	1.8	Wheelbase	L1	mm	1800	1800	2050	2050	2050	2050
Size	2.1	Mast Tilt Angle	α/β	°	6/12	6/12	6/12	6/12	6/12	6/12
	2.2	Mast Lowered Height	H1	mm	2125	2125	2250	2250	2250	2250
	2.3	Free Lift Height	H3	mm	150	150	150	150	150	150
	2.4	Standard Mast Lift Height	H	mm	3000	3000	3000	3000	3000	3000
	2.5	Mast Extended Height	H2	mm	4272	4272	4280	4280	4280	4280
	2.6	Overhead Guard Height	H4	mm	2092	2092	2255	2255	2255	2255
	2.9	Overall Length (Include Forks)	L	mm	3760	3760	4205	4205	4205	4205
	2.10	Length to Face of Fork	L‘	mm	2690	2690	3135	3135	3135	3135
	2.11	Overall Width	W1	mm	1420	1420	1400	1400	1400	1400
	2.12	Fork Size	TxWxL4	mm	50/125/1070	50/125/1070	50/150/1070	50/150/1070	50/150/1070	50/150/1070
	2.13	Fork Type			ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A	ISO2328 3A
	2.15	Fork carriage spread width	W5	mm	250-1300	250-1300	300-1380	300-1380	300-1380	300-1380
	2.16	Ground Clearance Under Mast Laden	H5	mm	130	130	140	140	140	140
	2.17	Ground Clearance at Center of the Wheelbase	H6	mm	130	130	145	145	145	145
	2.18	Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)	Ast	mm	4250	4250	4845	4845	4845	4845
	2.19	Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)	Ast	mm	4450	4450	5045	5045	5045	5045
	2.20	Turing Radius	r	mm	2550	2550	2172	2172	2172	2172
Weight	3.1	Service Weight		kg	5440	5340	6900	6900	7200	7200
	3.2	Front Axle Rated Load Capacity with laden		kg	9415	9415	10200	10200	11210	11210
	3.3	Rear Axle Rated Load with Laden		kg	1310	1310	1135	1135	1035	1035
	3.4	Front Axle Rated Load Capacity with unladen		kg	3195	3195	3215	3215	3345	3345
	3.5	Rear Axle Rated Load with unladen		kg	3505	3505	3620	3620	3865	3865
Tyre & Chassis	4.1	Tyre Type			Pneumatic	Pneumatic	Solid Tire	Solid Tire	Solid Tire	Solid Tire
	4.2	Tyre Size (Front)			250-15-12PR	250-15-12PR	28x12.5-15	28x12.5-15	28x12.5-15	28x12.5-15
	4.3	Tyre Size (Rear)			18x7-8-16PR	18x7-8-16PR	7.00-12	7.00-12	7.00-12	7.00-12
	4.4	Wheel Number (x=Drive Wheel)			2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
	4.5	Front Tread		mm	1160	1160	1280	1280	1280	1280
	4.6	Rear Thread		mm	970	970	1190	1190	1190	1190
Performance	5.1	Max. Travel Speed (Laden/Unladen)		km/h	12/13	12/13	13/14	13/14	13/14	13/14
	5.2	Lifting Speed (Laden/Unladen)		mm/s	250/350	250/350	280/400	280/400	280/400	280/400
	5.3	Lowering Speed (Laden/Unladen)		mm/s	<600	<600	<600	<600	<600	<600
	5.4	Max. Gradeability (Laden)		%	14	14	15	15	15	15
	5.5	Service Brake Type			Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	5.6	Parking Brake Type			Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Power & Transmission	6.1	Drive Motor Rating S2 60min		kW	16.6	16.6	18	18	18	18
	6.2	Lifting Motor Rating at S315%		kW	13.5	13.5	26	26	26	26
	6.3	Battery Voltagl/Capacicty K5		V/Ah	80/500 (Max.600)	83.2/346 (Max.405)	80/560 (Max.600)	83.2/404 (Max.460)	80/630 (Max.700)	83.2/460 (Max.505)
	6.4	Battery Weight		kg	1240 （1240-1550）	1170 （1170-1550）	1265 （1265-1550）	1265 （1265-1565）	1565 （1565-1750）	1565 （1565-1750）
Others	7.1	Controller Brand			IMMOTION	IMMOTION	ZAPI/IMMOTION	ZAPI/IMMOTION	ZAPI/IMMOTION	ZAPI/IMMOTION
	7.2	Hydraulic system working pressure		Mpa	20	20	20	20	20	20
	7.6	Sound Level at Driver's Ear According to EN 12 053		dB	72	72	72	72	72	72
Note:"CPD"means full electric Counter-balanced Electric Forklift,"40/45/50"means rated load capacity 4T/4.5T/5.0T,"M"is serial code,"A"is equipped with full AC system,"J"is equipped with semi-AC system,"1"is serial code,"Li"is equipped with lithium-ion battery,"S"means battery can be roll side out.
