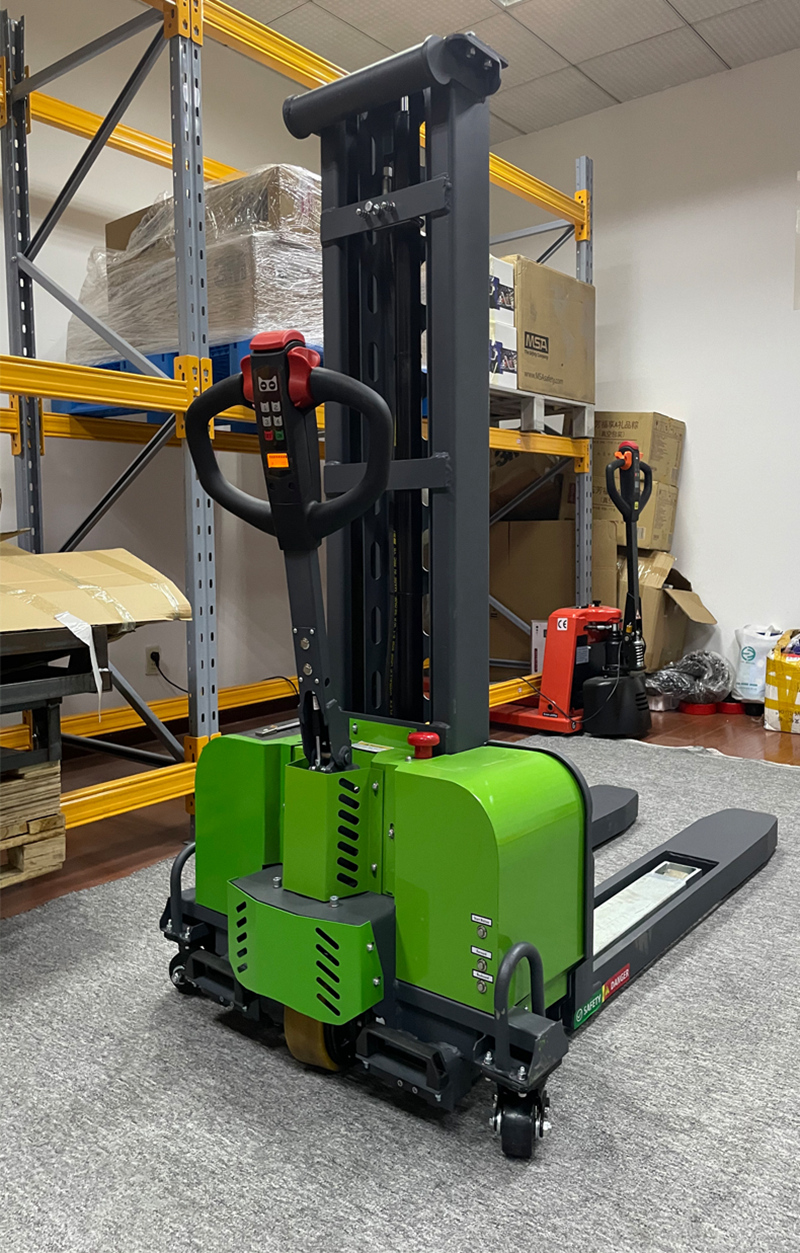

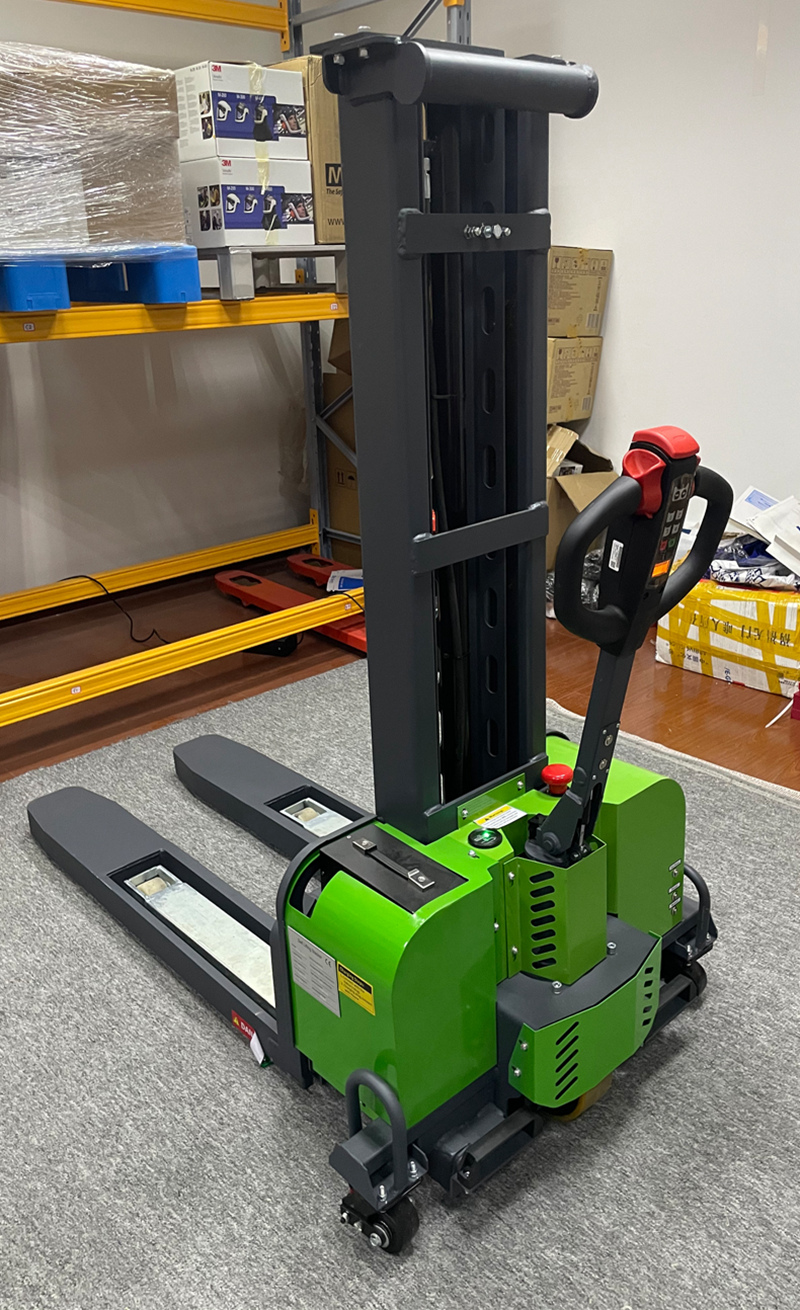

ZTS05F ZTS07F ZTS10F Full Electric Elevating Stacker

ZTS05F

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

1.Steering chain auxiliary device.

2.The foot brake,more stable,

3.Sealed batteries free of maintenance safe operation and no pollution.

4.Explosion-proof valve design,down more stable and reliable.

Feature:

Steering chain auxiliary device

The foot brake,more stable

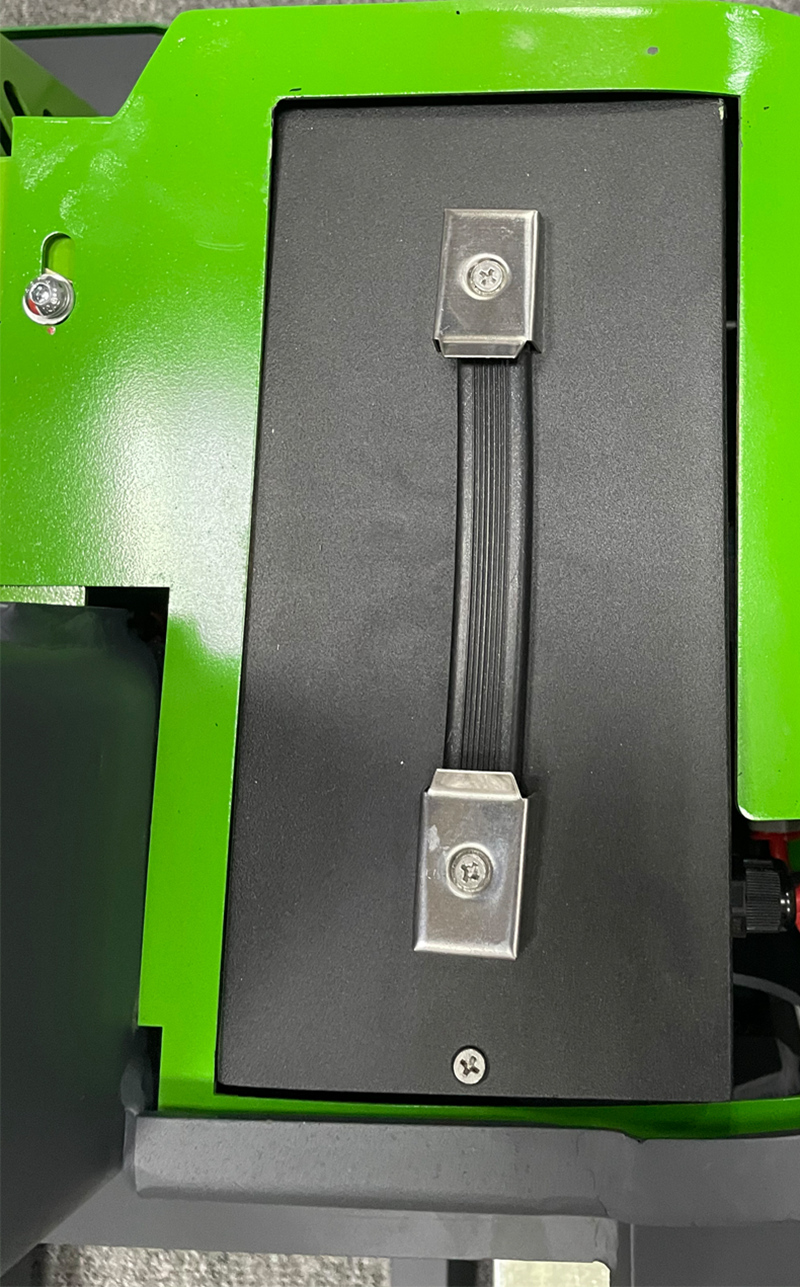

Sealed battery free of maintenance

Safe operation and no pollution

Explosion-proof valve design

More stable and reliable

Over discharge protection,extending battery life.

Application:

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Printing Shops, Construction works , Food & Beverage Shops, Other

	Model		ZTS-05F/ZTS-07F
Performance	Maximum load capacity	kg	500/700	500/700	500/700	500/700	500/700	500/700	500	500
	Load center	mm	450	450	450	450	450	450	450	450
	Weight （with battery）	kg	310/320	313/325	319/330	325/340	330/345	327/342	349	357
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1700	1800
	Lifting speed (without load)	mm/s	140	140	140	140	140	140	140	140
	Lifting speed (with load)	mm/s	135	135	135	135	135	135	135	135
	Lowered speed (without load)	mm/s	140	140	140	140	140	140	140	140
	Lowered speed (with load)	mm/s	145	145	145	145	145	145	145	145
Dimensions	Overall length of frame	mm	1660	1660	1660	1660	1660	1660	1660	1660
	Overall width of frame	mm	878	878	878	878	878	878	878	878
	Mast lowered height	mm	1106	1206	1406	1606	1806	1906	2056	2156
	Max height(mast lifted with backrest	mm	2352	2452	2652	2852	3052	3152	3252	3352
	Wheelbase	mm	963	963	963	963	963	963	963	963
	Fork length	mm	1175	1175	1175	1175	1175	1175	1175	1175
	Fork outside width	mm	580	580	580	580	580	580	580	580
	Fork inside width	mm	190	190	190	190	190	190	190	190
	Fork thickness	mm	60	60	60	60	60	60	60	60
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1500	1500	1500	1500	1500	1500	1500	1500
	Min ground height	mm	20	20	20	20	20	20	20	20
	Fork lowered height	mm	90	90	90	90	90	90	90	90
	Minimum turning radius	mm	1200	1200	1200	1200	1200	1200	1200	1200
Tire	Front wheel	mm	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50
	Hoist motor type	DC
	Rated output	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Battery	Battery type		Lithium battery
	Voltage	V	48	48	48	48	48	48	48	48
	Capacity	AH	20	20	20	20	20	20	20	20
			ZTS-10F
Performance	Maximum load capacity	kg	1000	1000	1000	1000	1000	1000	700	700
	Load center	mm	450	450	450	450	450	450	450	450
	Weight （with battery）	kg	379	383	391	400	409	413	420	428
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1700	1800
	Lifting speed (without load)	mm/s	65	65	65	65	65	65	65	65
	Lifting speed (with load)	mm/s	35	35	35	35	35	35	35	35
	Lowered speed (without load)	mm/s	65	65	65	65	65	65	65	65
	Lowered speed (with load)	mm/s	35	35	35	35	35	35	35	35
Dimensions	Overall length of frame	mm	1660	1660	1660	1660	1660	1660	1660	1660
	Overall width of frame	mm	885	885	885	885	885	885	885	885
	Mast lowered height	mm	1156	1256	1456	1656	1856	1956	2056	2156
	Max height(mast lifted with backrest	mm	2385	2485	2685	2885	3085	3185	3285	3385
	Wheelbase	mm	995	995	995	995	995	995	995	995
	Fork length	mm	1200	1200	1200	1200	1200	1200	1200	1200
	Fork outside width	mm	626	626	626	626	626	626	626	626
	Fork inside width	mm	236	236	236	236	236	236	236	236
	Fork thickness	mm	70	70	70	70	70	70	70	70
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1250	1250	1250	1250	1250	1250	1250	1250
	Min ground height	mm	32	32	32	32	32	32	32	32
	Fork lowered height	mm	70	70	70	70	70	70	70	70
	Minimum turning radius	mm	1300	1300	1300	1300	1300	1300	1300	1300
Tire	Front wheel	mm	80*50	80*50	80*50	80*50	80*50	80*51	80*51	80*51
	Hoist motor type	DC
	Rated output	kw	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Battery	Battery type		Lithium battery
	Voltage	V	24	24	24	24	24	24	24	24
	Capacity	AH	50	50	50	50	50	50	50	50
