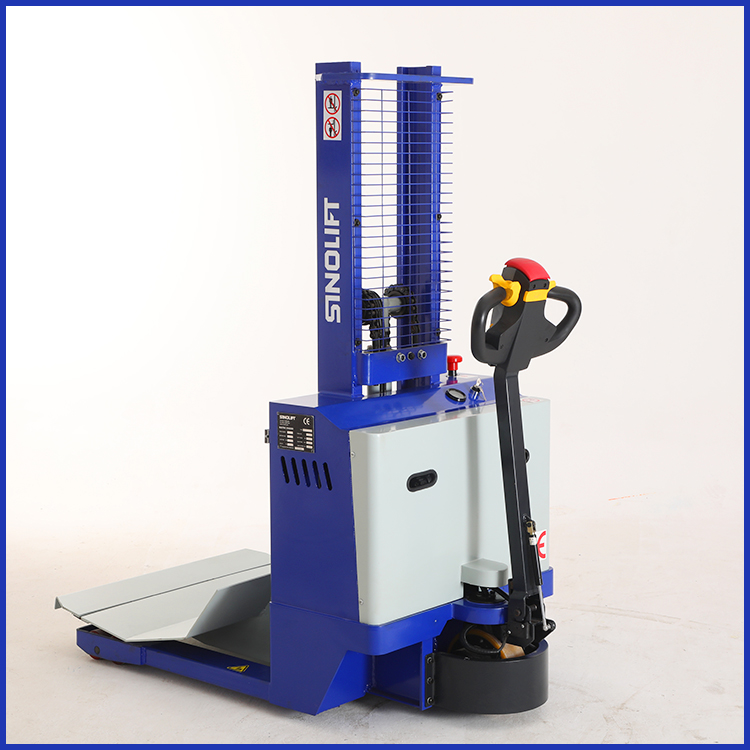

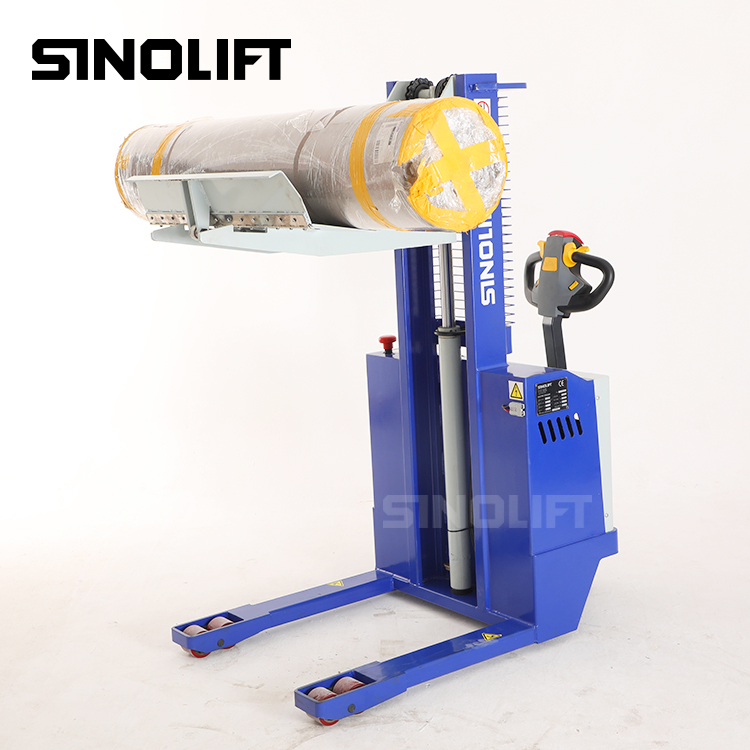

CDD1000-M700 fully electric paper roll lifter
CDD1000-M700
The electronic coil lifting forklift trucks of the CDD line are produced in 2 different versions, with a lifting capacity of 1,000 and 1,500 kg.
Quantity:
Name:Fully electric paper roll lifter
The electronic coil lifting paper roll lifter of the CDD line are produced in 2different versions, with a lifting capacity of 1,000 and 1,500 kg. Especially suitable for handling coils of large diameter, all the controls are located on the handle.

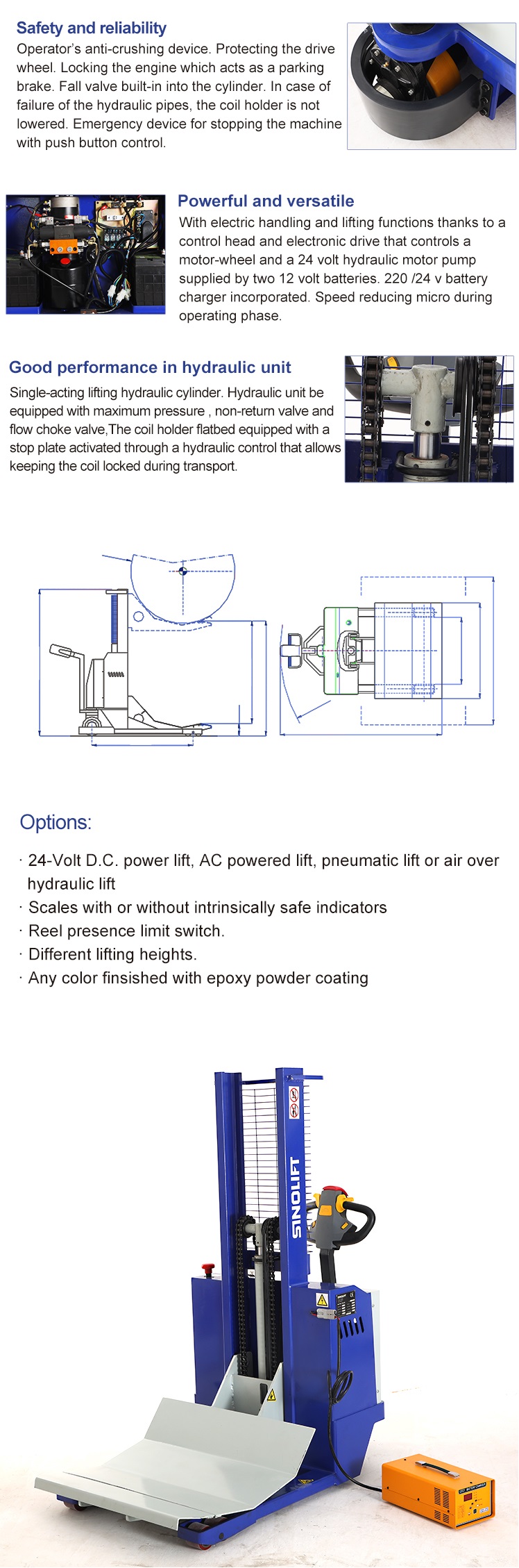

Operator’s anti-crushing device. Protecting the drive wheel. Locking the engine which acts as a parking brake. Rechargeable batteries powered with built-in battery charger. Fall valve built-in into the cylinder.
In case of failure of the hydraulic pipes, the coil holder is not lowered.
Single-acting lifting hydraulic cylinder. Coil holder flatbed equipped with a stop plate
activated through a hydraulic control that allows keeping the coil locked
during transport.
Emergency device for stopping the machine with pushbutton control.
All models of Fully electric paper roll liftercan be equipped with an (optional) lateral displacement.
Operator’s anti-crushing device. Protecting the drive wheel. Locking the engine which acts as a parking brake. Rechargeable batteries powered with built-in battery charger. Fall valve built-in into the cylinder.
In case of failure of the hydraulic pipes, the coil holder is not lowered.
Single-acting lifting hydraulic cylinder. Coil holder flatbed equipped with a stop plate
activated through a hydraulic control that allows keeping the coil locked
during transport.
Emergency device for stopping the machine with pushbutton control.
All models of Fully electric paper roll liftercan be equipped with an (optional) lateral displacement.
| Model | Fully electric paper roll lifter CDD1000-M700 | Fully electric paper roll lifter CDD1500-M700 |
| Maximum capacity | 1,000 Kg | 1,500 Kg |
| Lift height | 1,300 mm | 1,300 mm |
| Max coil diameter | 1,100 mm | 1,200 mm |
| Minimum ground clearance | 140 mm | 140 mm |
| Battery power | 24V – 150 Ah | 24V – 150 Ah |
