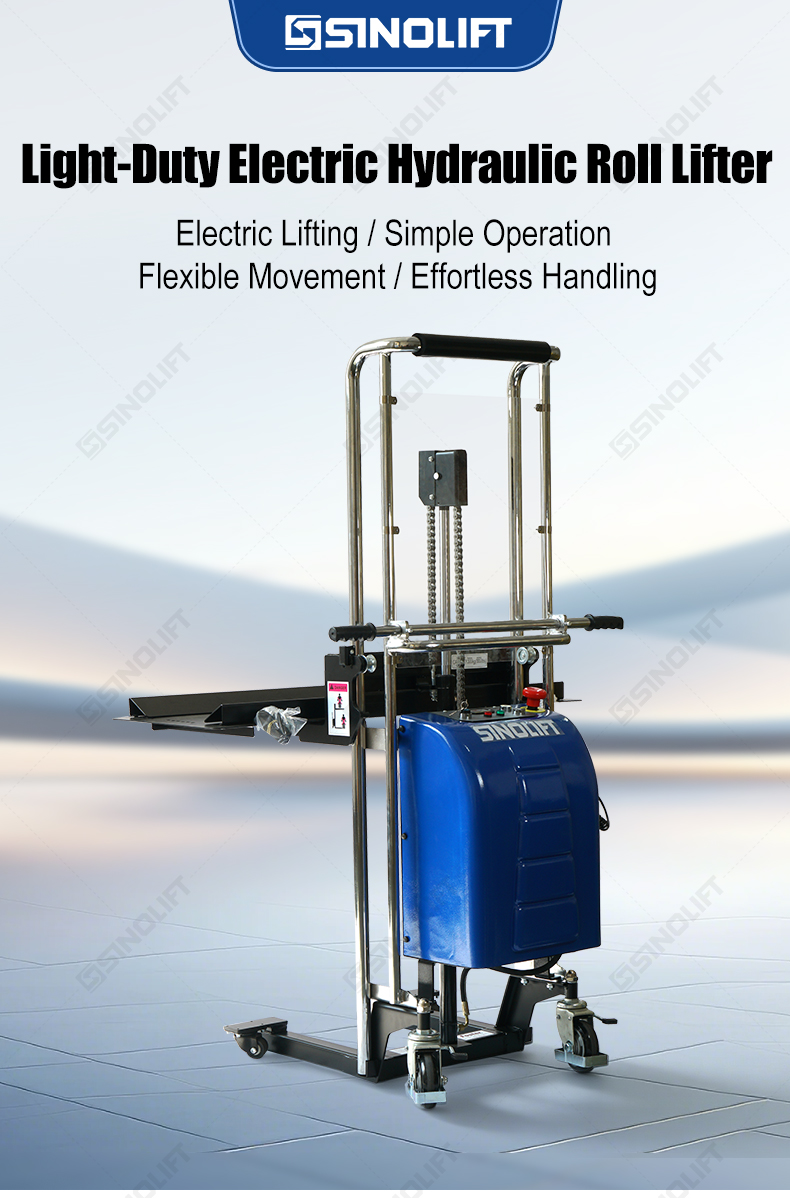

EPR3080 Electric Hydraulic Roll Lifter for Paper & Film Rolls Product Introduction

Key Features

• Electric Hydraulic Lift: Battery-powered hydraulic lifting provides convenient platform height adjustment without manual pumping.

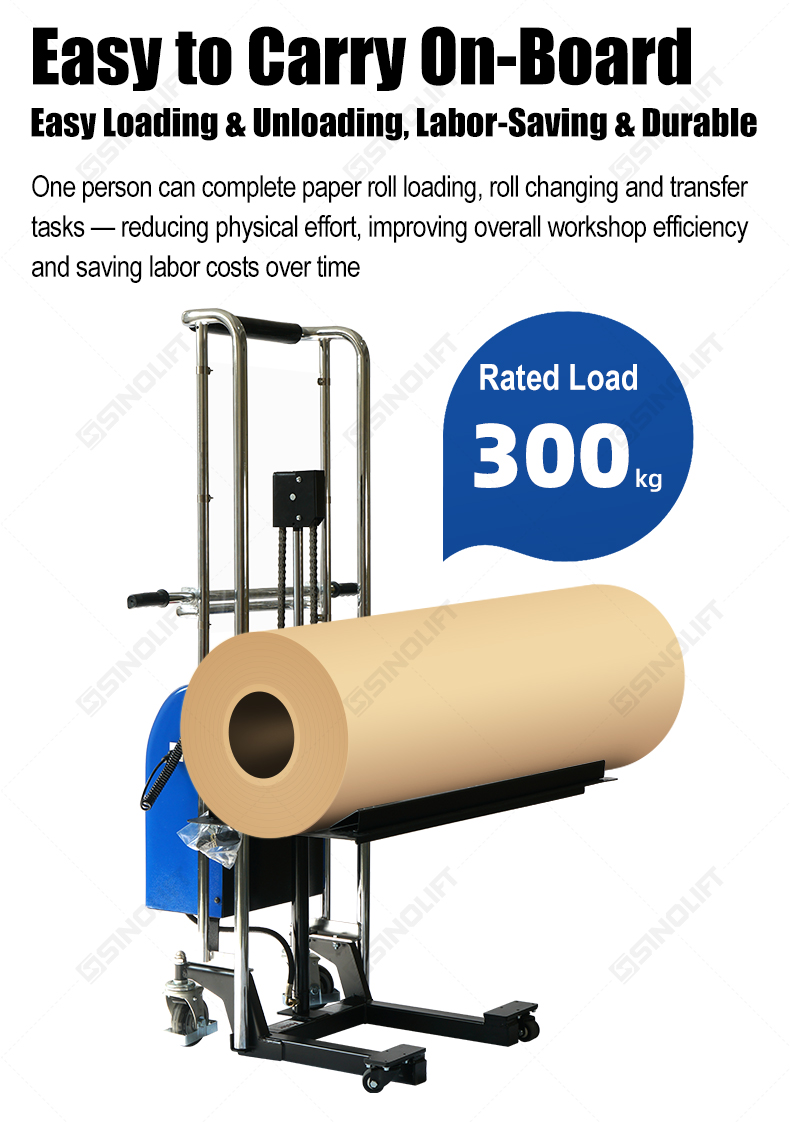

• 300 kg Load Capacity: Designed for handling paper rolls, film rolls, and compatible cylindrical loads within the rated capacity.

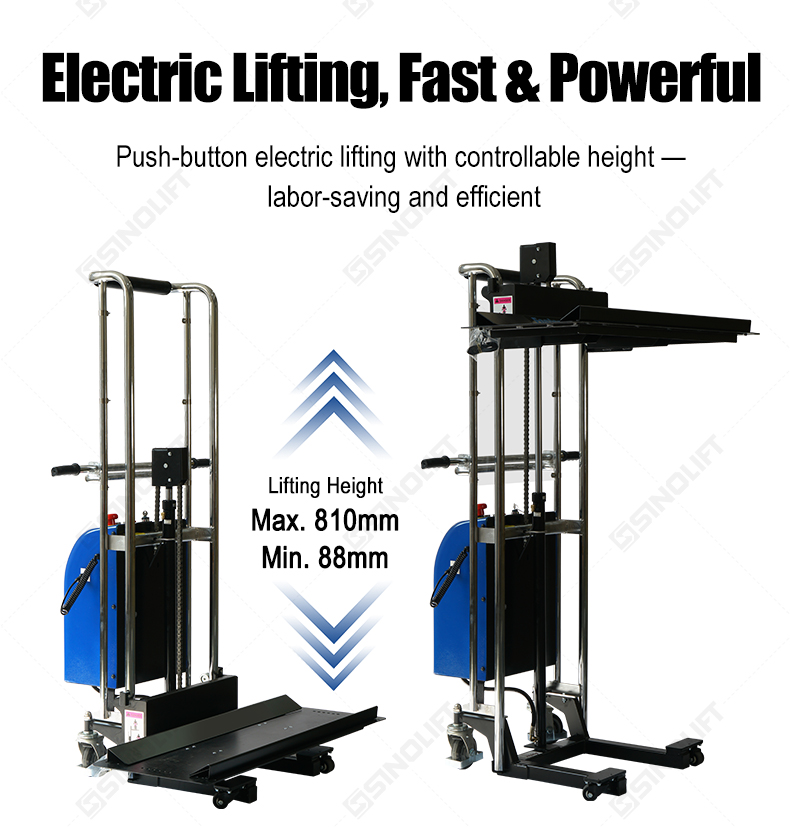

• Flexible Lifting Height: An adjustable platform height from 88 mm to 810 mm accommodates different low-level loading and transfer requirements.

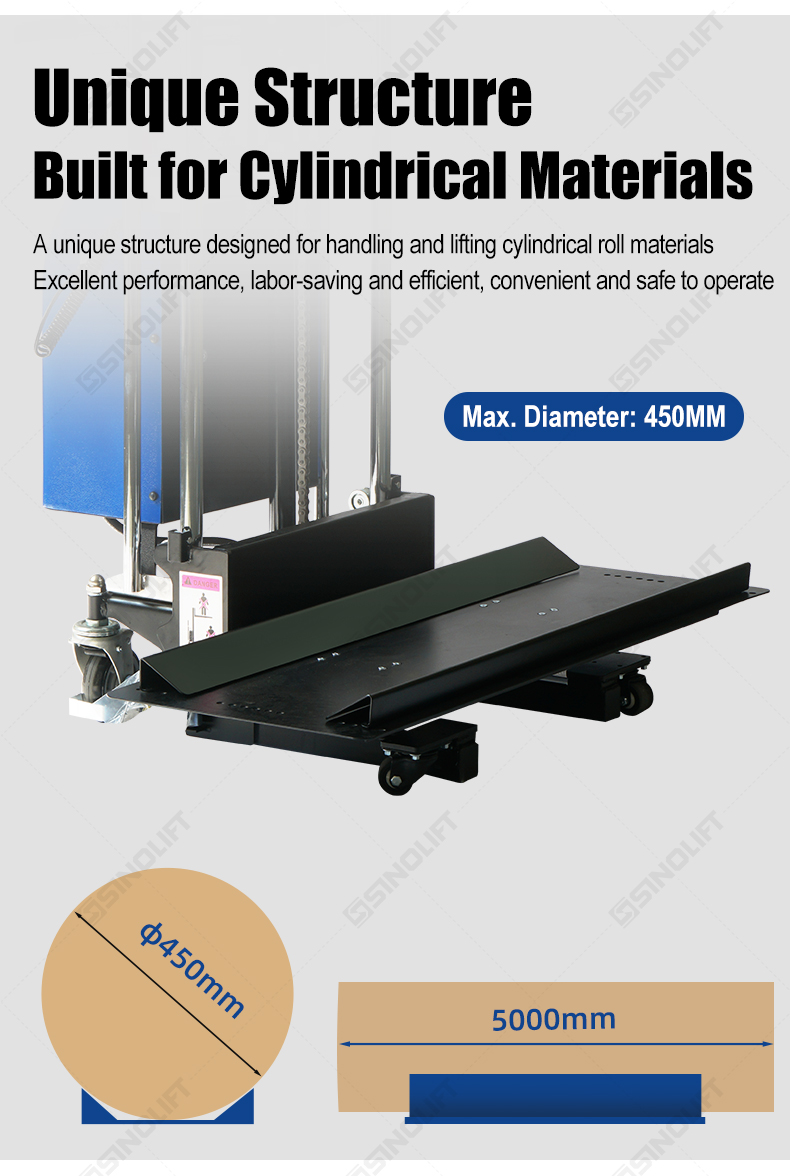

• Dedicated Roll Support: The roll-handling platform is designed for cylindrical materials with a maximum recommended diameter of 450 mm.

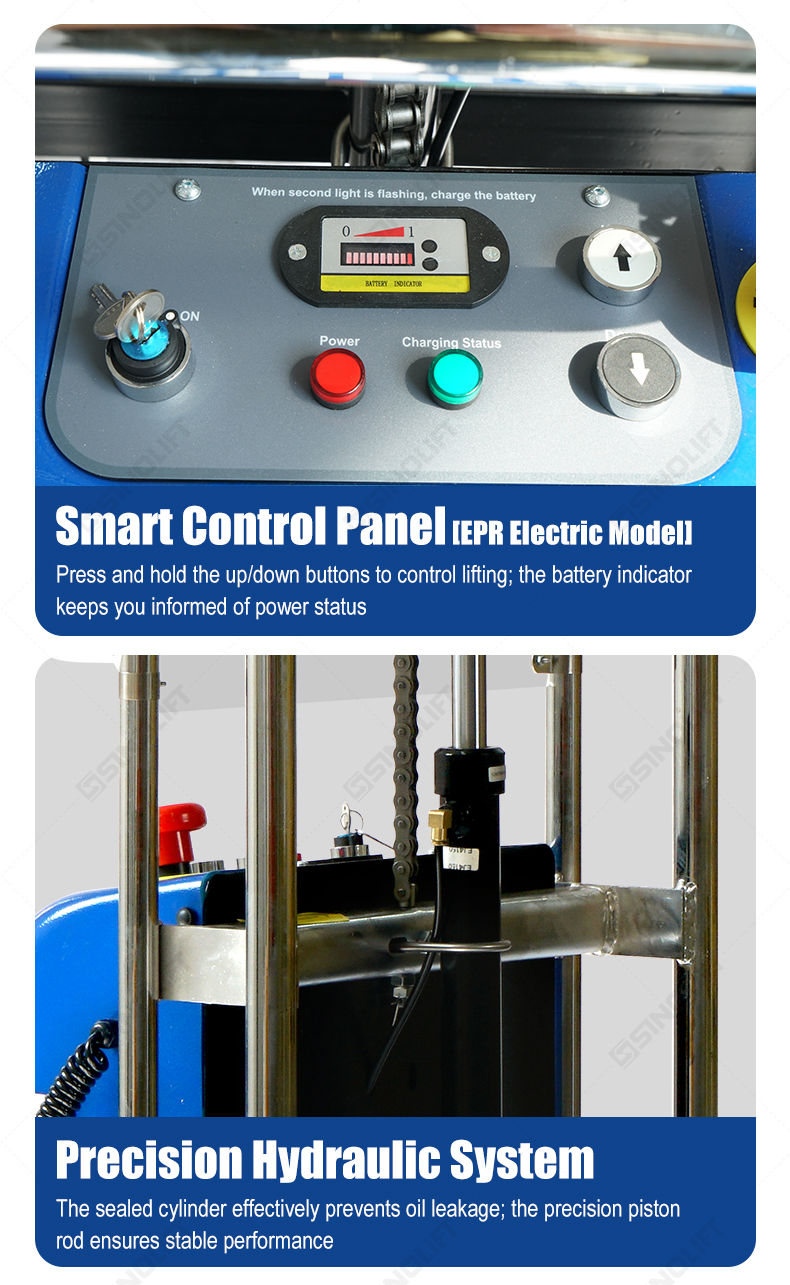

• Convenient Lift Controls: Push-button operation and a battery level indicator simplify lifting control and power monitoring.

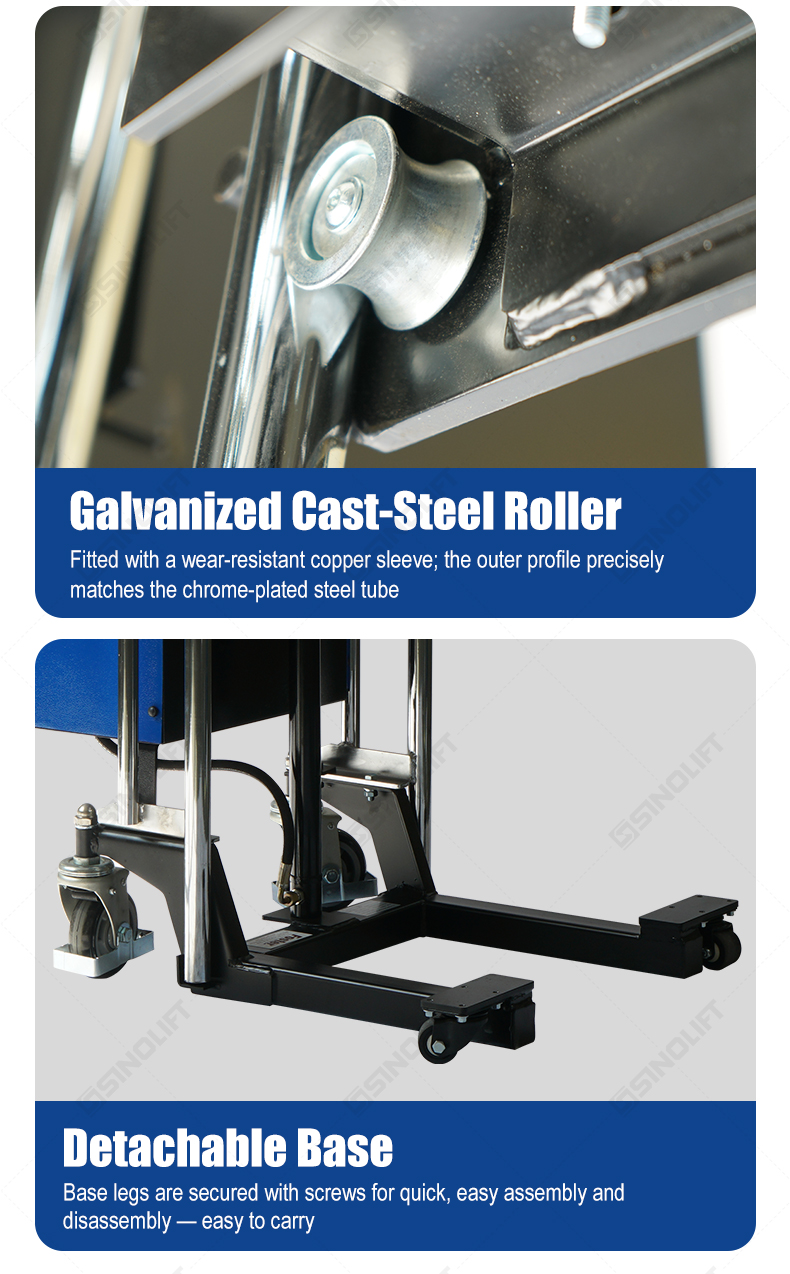

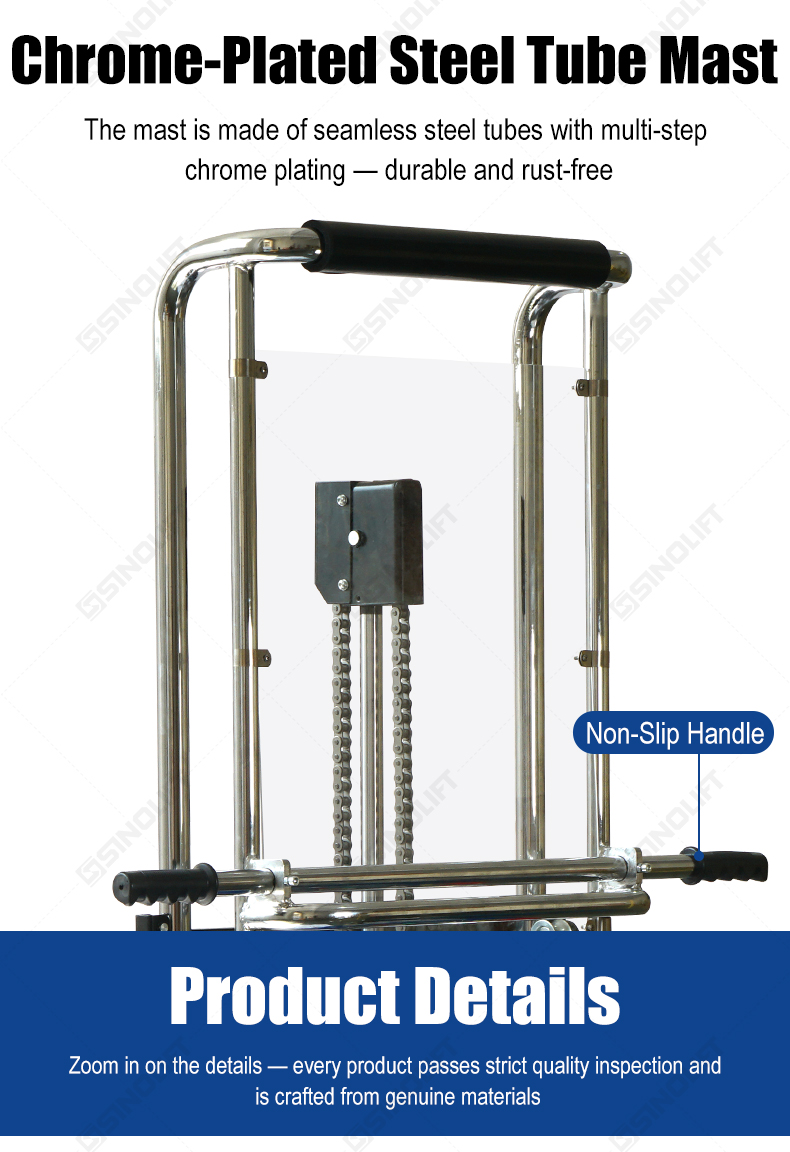

• Durable Mast Structure: Chrome-plated seamless steel tubes and precision guide rollers support consistent lifting movement.

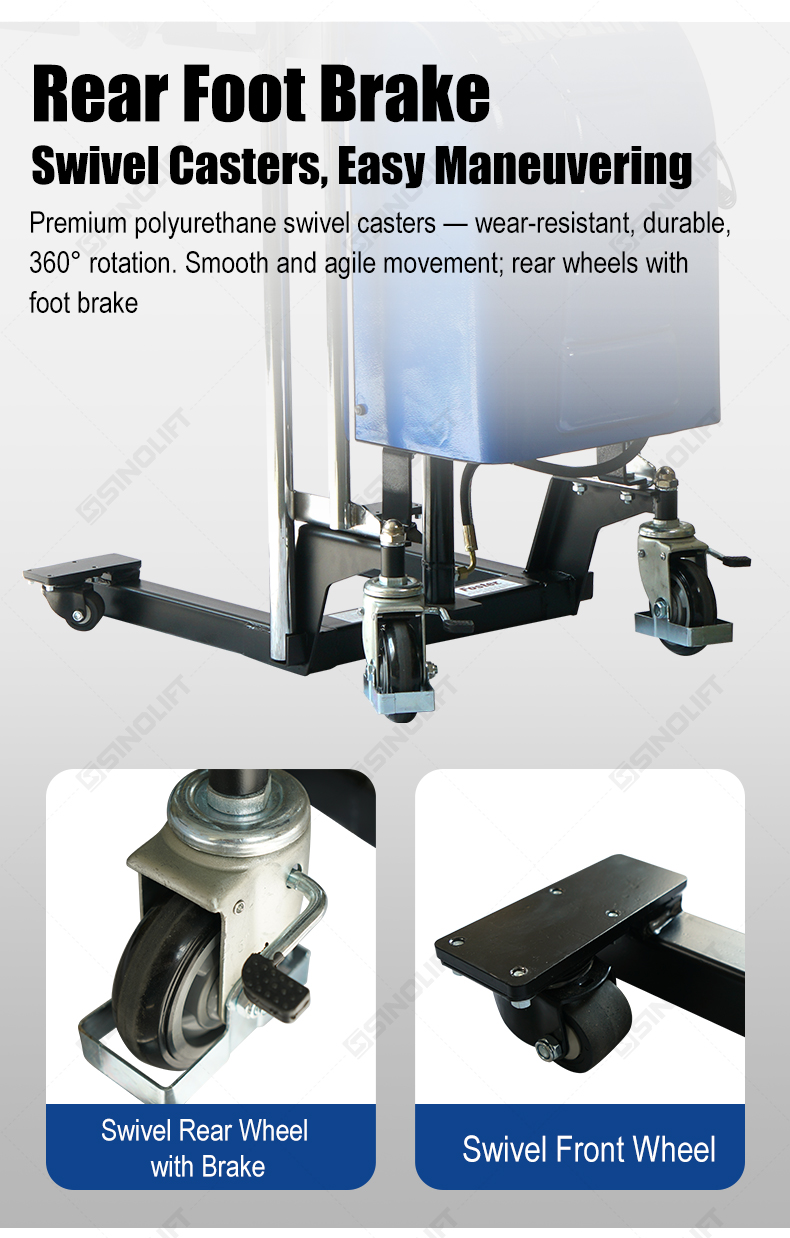

• Smooth Manual Maneuvering: Polyurethane swivel casters and rear foot brakes make positioning and stationary loading more convenient.

• Detachable Base Design: Removable base legs simplify disassembly and transportation when needed.

Frequently Asked Questions (FAQ)

Q1. How does the electric hydraulic lifting system work?

The EPR3080 uses a battery-powered hydraulic pump to generate the lifting force required to raise the platform. Operators control the lifting and lowering functions through the buttons on the control panel, allowing them to adjust the load height without operating a manual hydraulic pedal.

Q2. Does the electric hydraulic roll lifter need to remain connected to a power outlet during operation?

The EPR3080 is equipped with a 12 V / 60 Ah battery, allowing the lifting system to operate using its onboard electrical supply. A 12 V / 10 A charger is specified for recharging, and the battery indicator helps operators monitor the available charge during use.

Q3. Can this machine be used to handle delicate film rolls?

The EPR3080 is designed for cylindrical loads, including film rolls commonly found in packaging and converting facilities. For delicate films or rolls with special surface requirements, customers should confirm the roll dimensions and contact surfaces to ensure the platform provides appropriate support without damaging the material.

Q4. Is the EPR3080 suitable for narrow production areas?

Its manually maneuvered design and swivel casters make it practical for positioning rolls in production spaces where larger handling equipment may be inconvenient. Customers should check the base dimensions, turning clearance, floor conditions, and machine access before determining whether it fits a particular workstation.

Q5. What should be checked before transferring a roll onto another machine?

The operator should verify that the roll is within the rated load and diameter limits and that the receiving machine is accessible within the lifter's height range. The roll must remain properly supported throughout the transfer, and the wheel brakes should be engaged whenever the equipment needs to remain stationary during loading or unloading.
