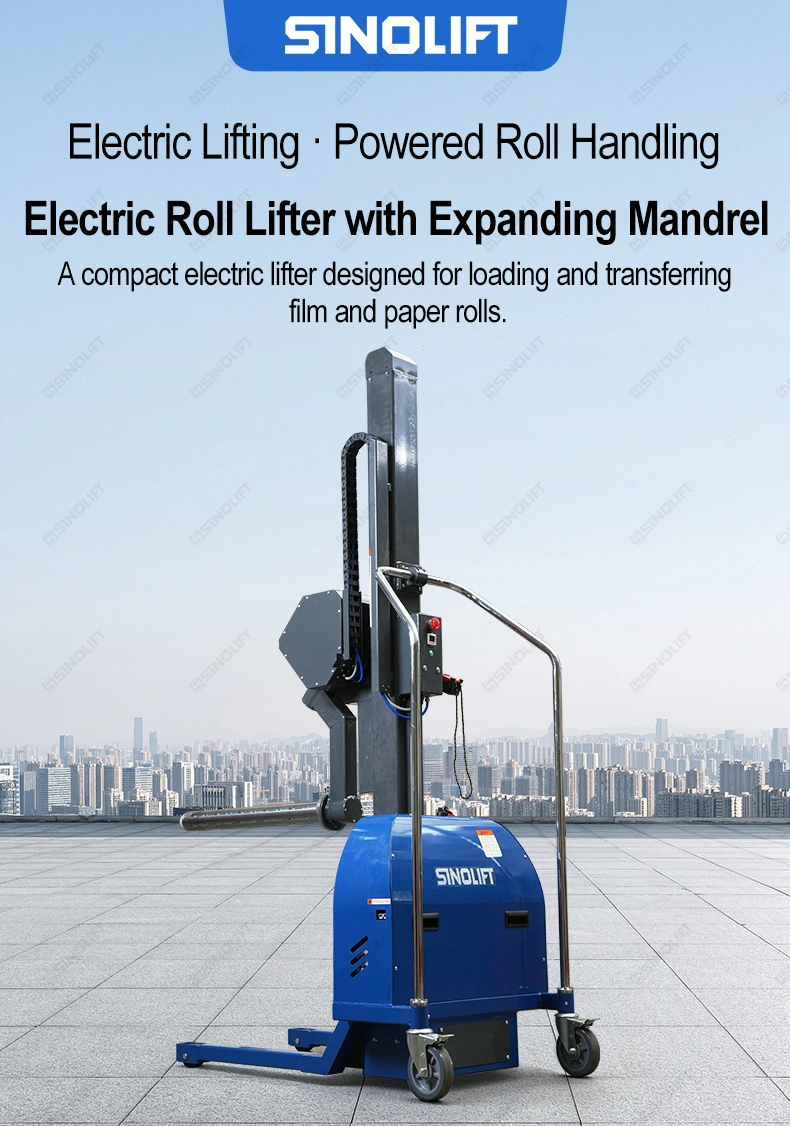

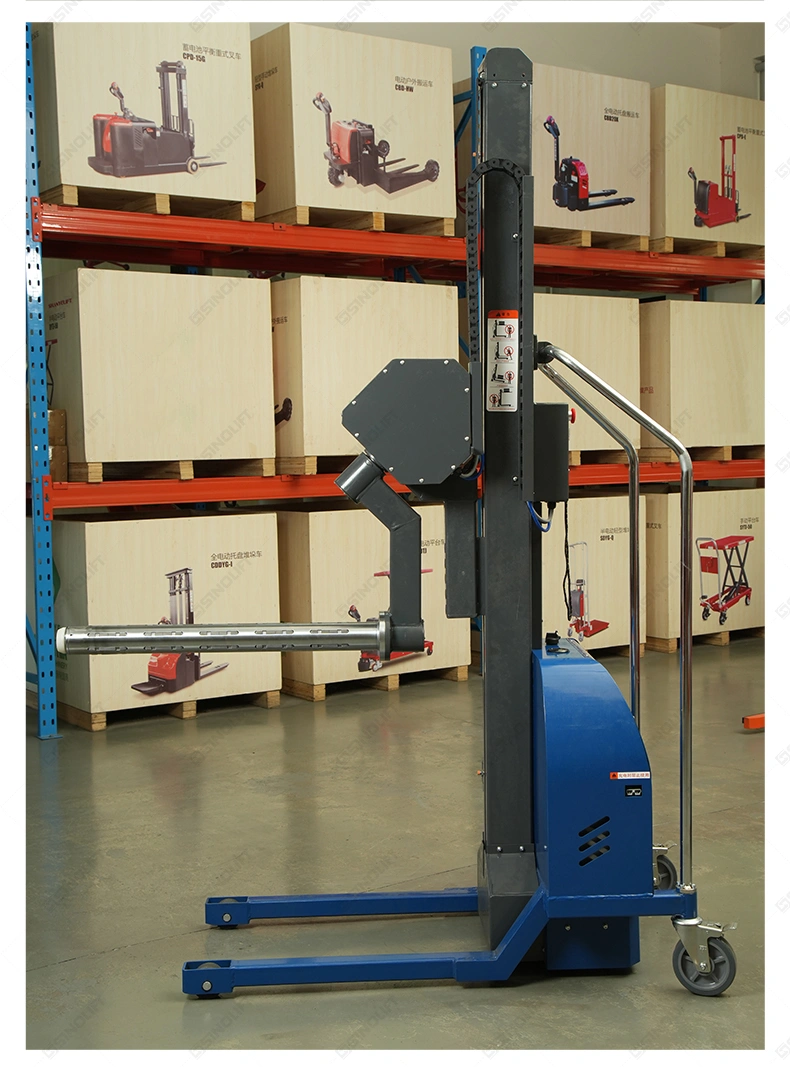

SINOLIFT QZA15 Electric Roll Lifter with Expanding Mandrel

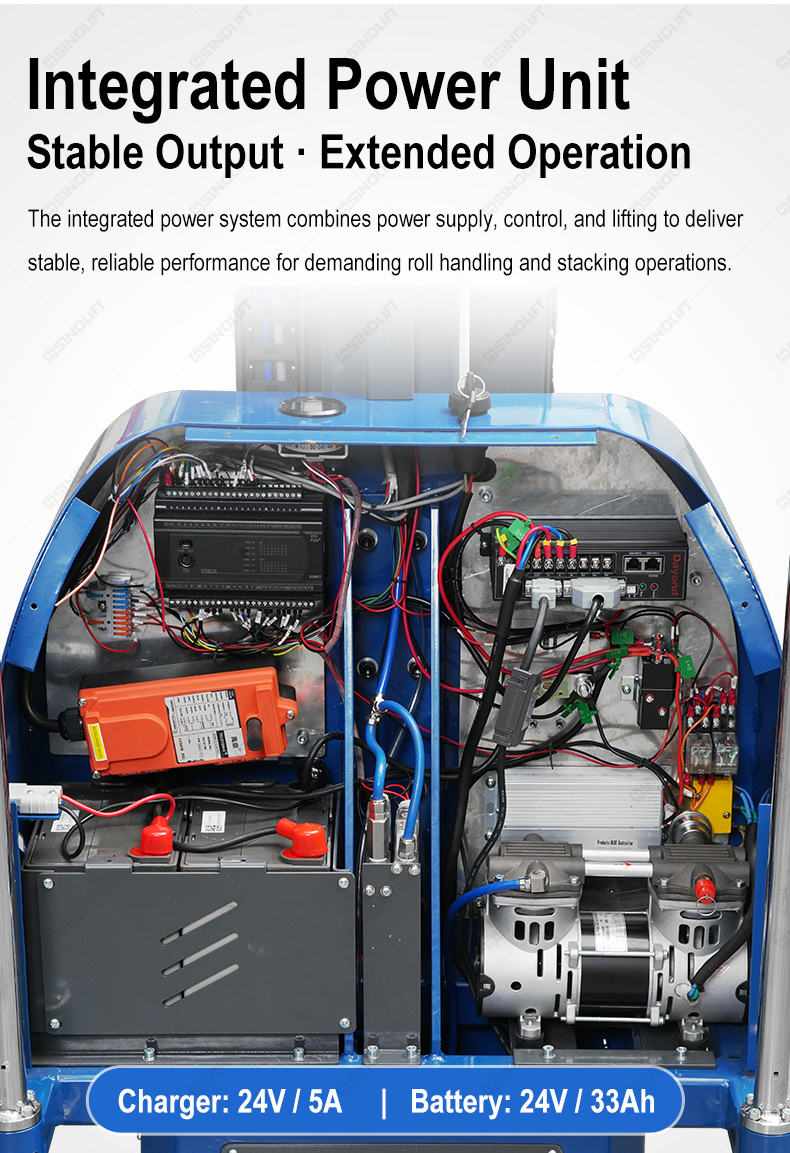

Powered lifting enables smooth height adjustment, reducing manual effort during roll loading and unloading.

2. Secure Expanding Mandrel

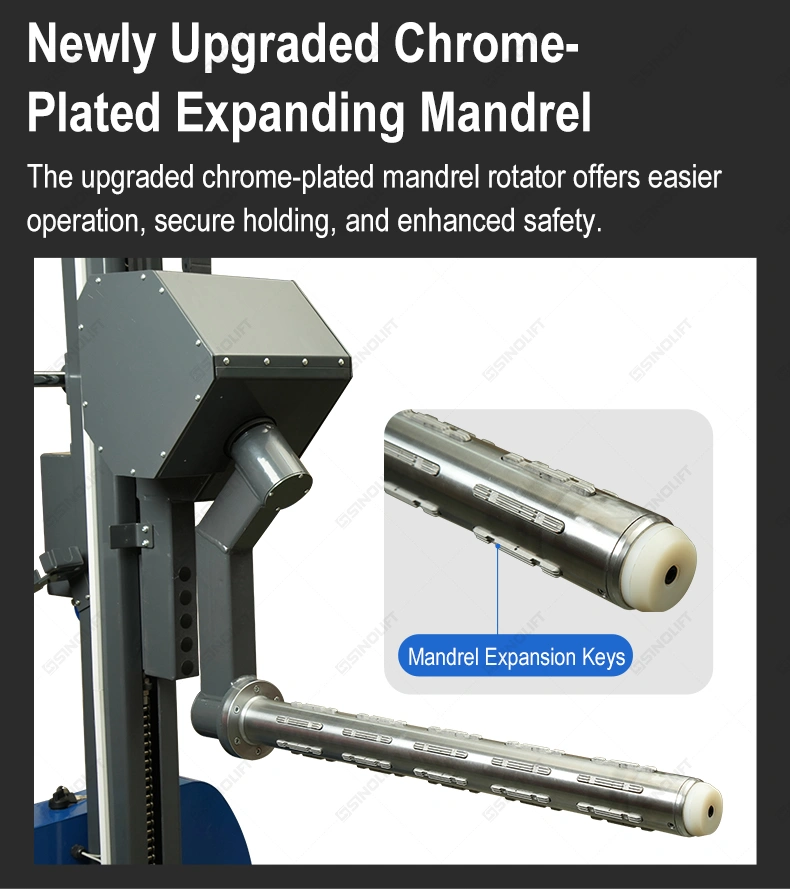

The chrome-plated pneumatic mandrel grips rolls securely from the inner core, helping protect delicate material surfaces.

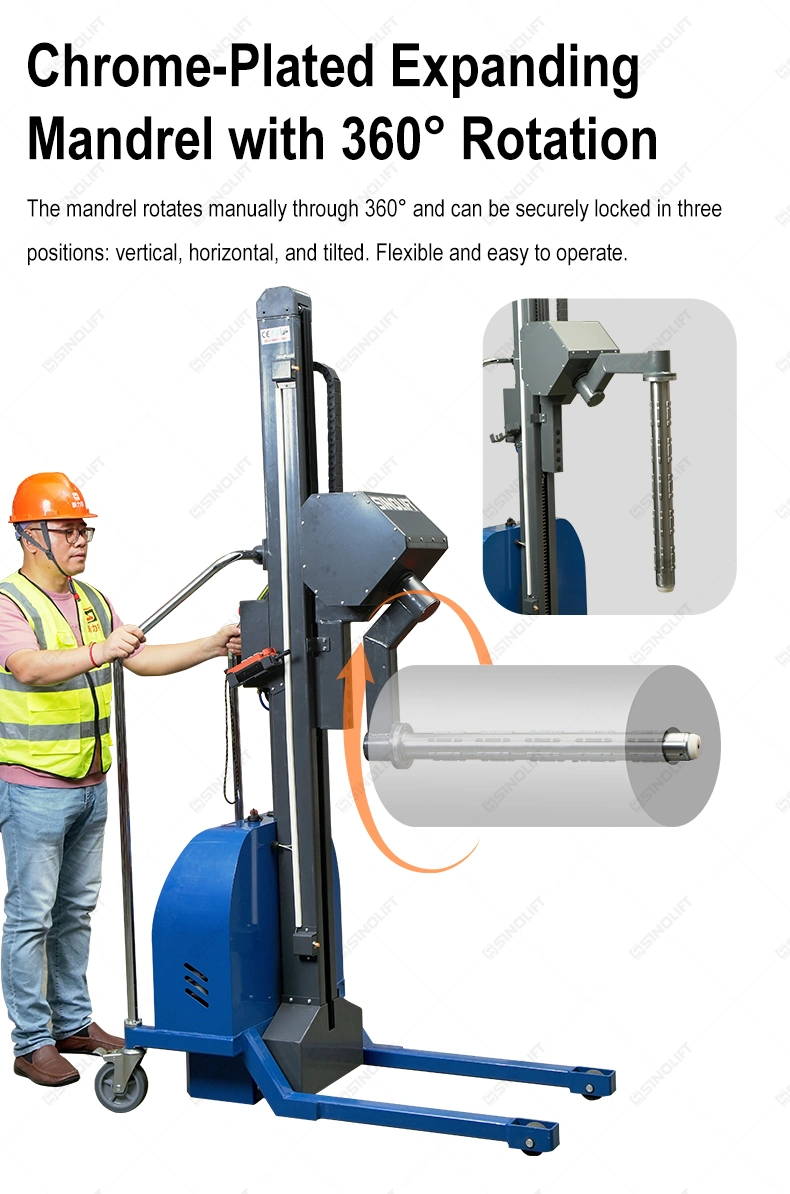

3. Flexible 360° Roll Rotation

The adjustable mandrel supports 360° rotation with vertical, horizontal, and inclined positioning for versatile roll handling.

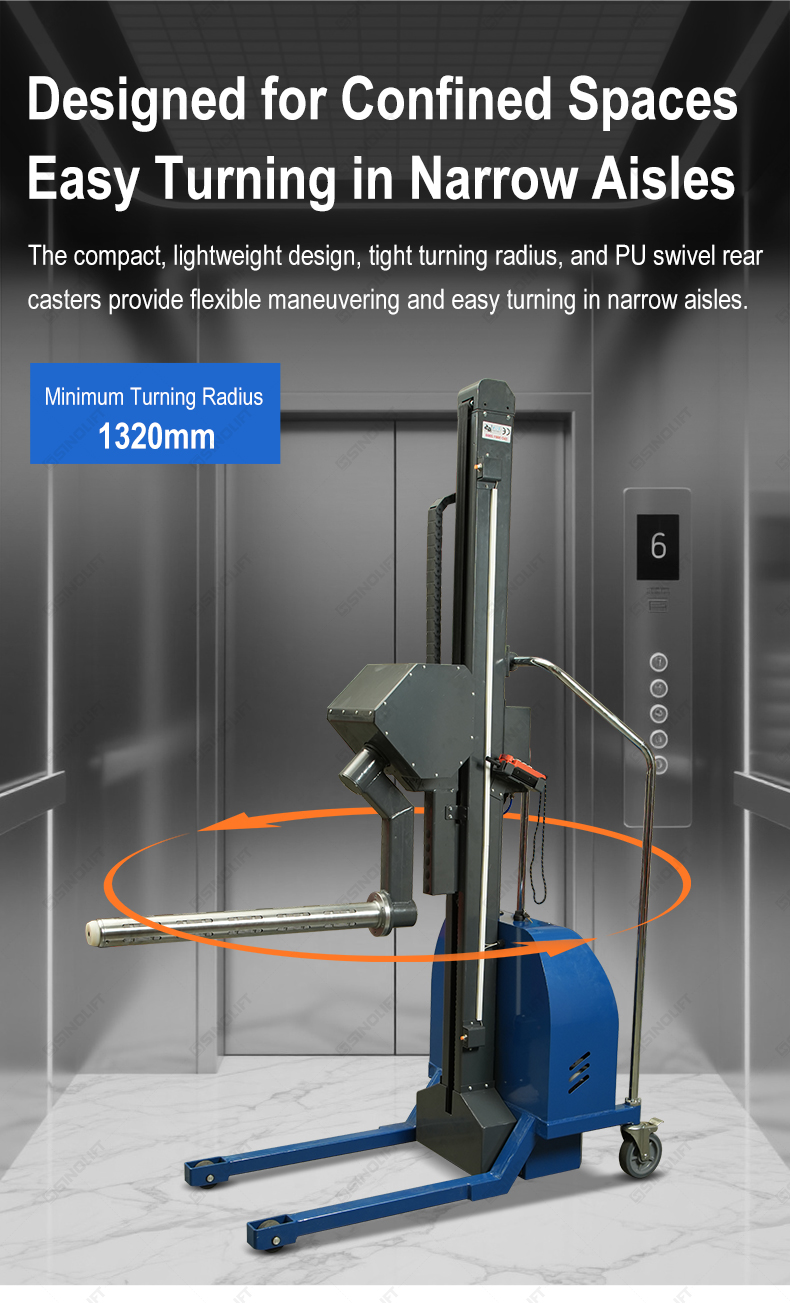

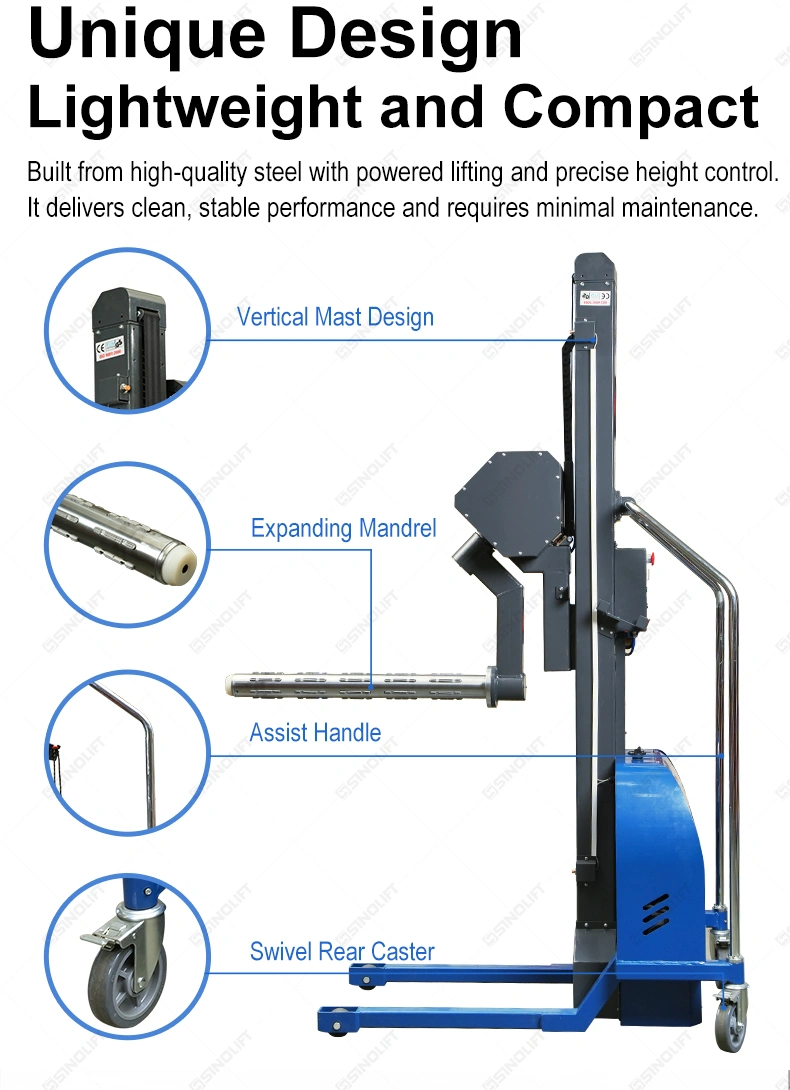

4. Compact & Easy to Maneuver

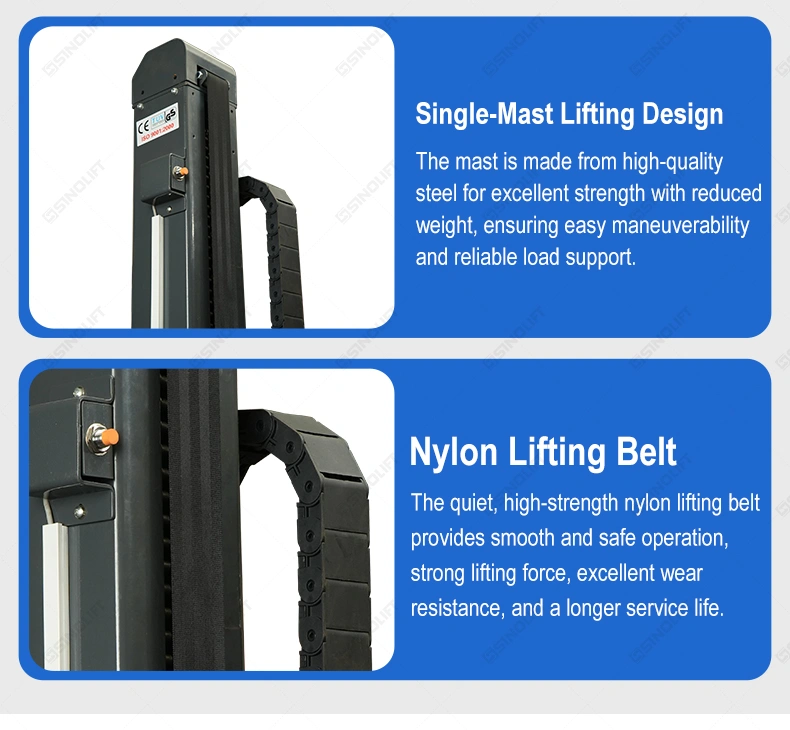

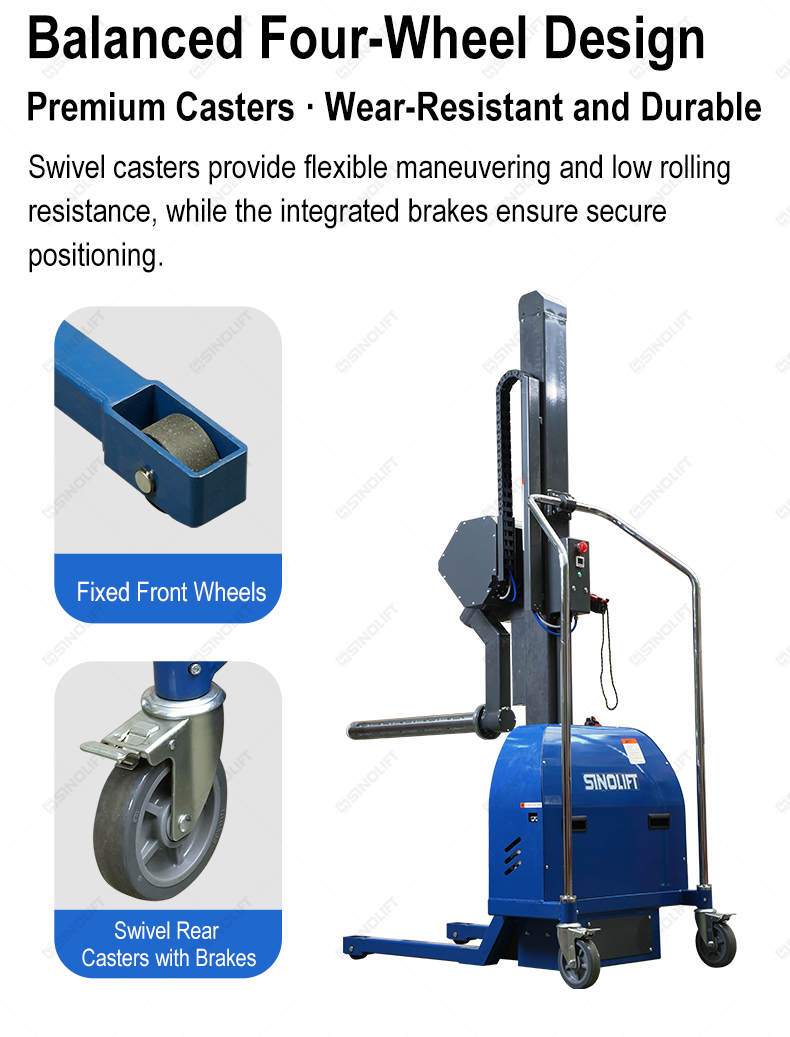

The lightweight single-mast design and PU swivel casters allow easy movement and positioning in narrow workspaces.

5. Reliable & Safe Operation

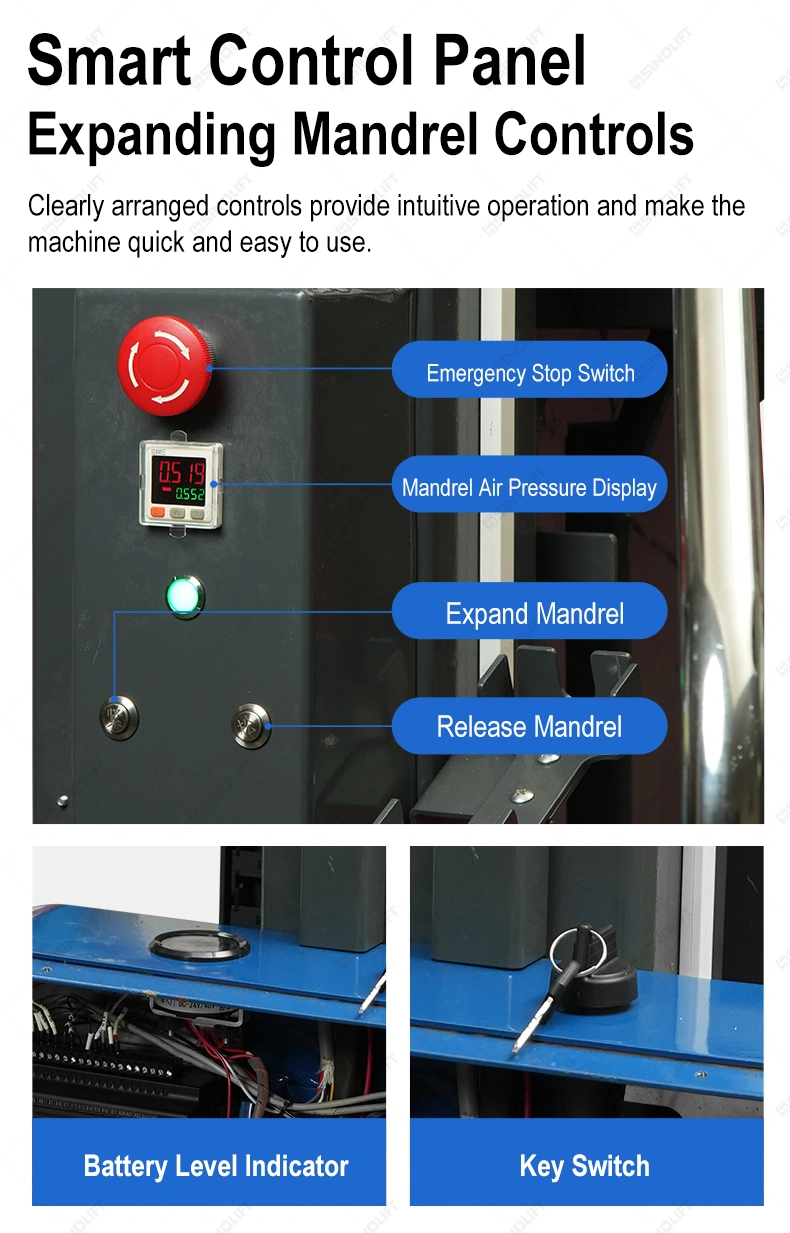

A durable nylon lifting belt, emergency stop switch, and intuitive control panel support smooth and reliable daily operation.

6. Customizable Roll Handling Solutions

Custom configurations are available to accommodate different roll dimensions, loading heights, and production requirements.

FAQ

Q1. What types and sizes of rolls can the QZA15 Electric Roll Lifter handle?

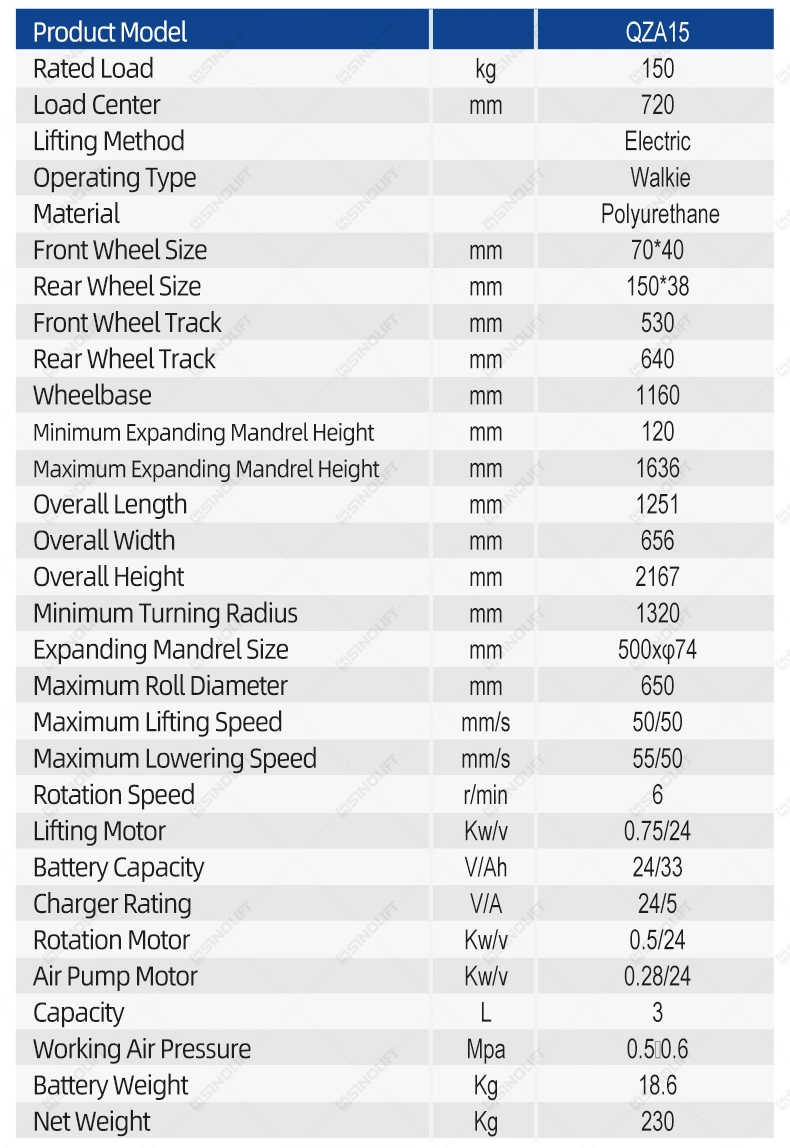

The QZA15 is designed for paper rolls, plastic film rolls, and other cylindrical materials with compatible inner cores. The standard configuration has a rated load capacity of 150 kg and supports roll diameters up to 650 mm. Roll width, core diameter, weight distribution, and required lifting height must also be considered to ensure the equipment is suitable for your application.

Q2. How does the expanding mandrel secure the roll without damaging its surface?

The pneumatic expanding mandrel is inserted into the roll's hollow core and expands outward to grip the material internally. Unlike external clamping systems, this method reduces direct contact with the outer layers of paper or film, making it particularly useful for sensitive rolled materials. Proper mandrel sizing, suitable core strength, and correct working pressure are essential for secure handling.

Q3. Can one operator use the QZA15, and does it have powered travel?

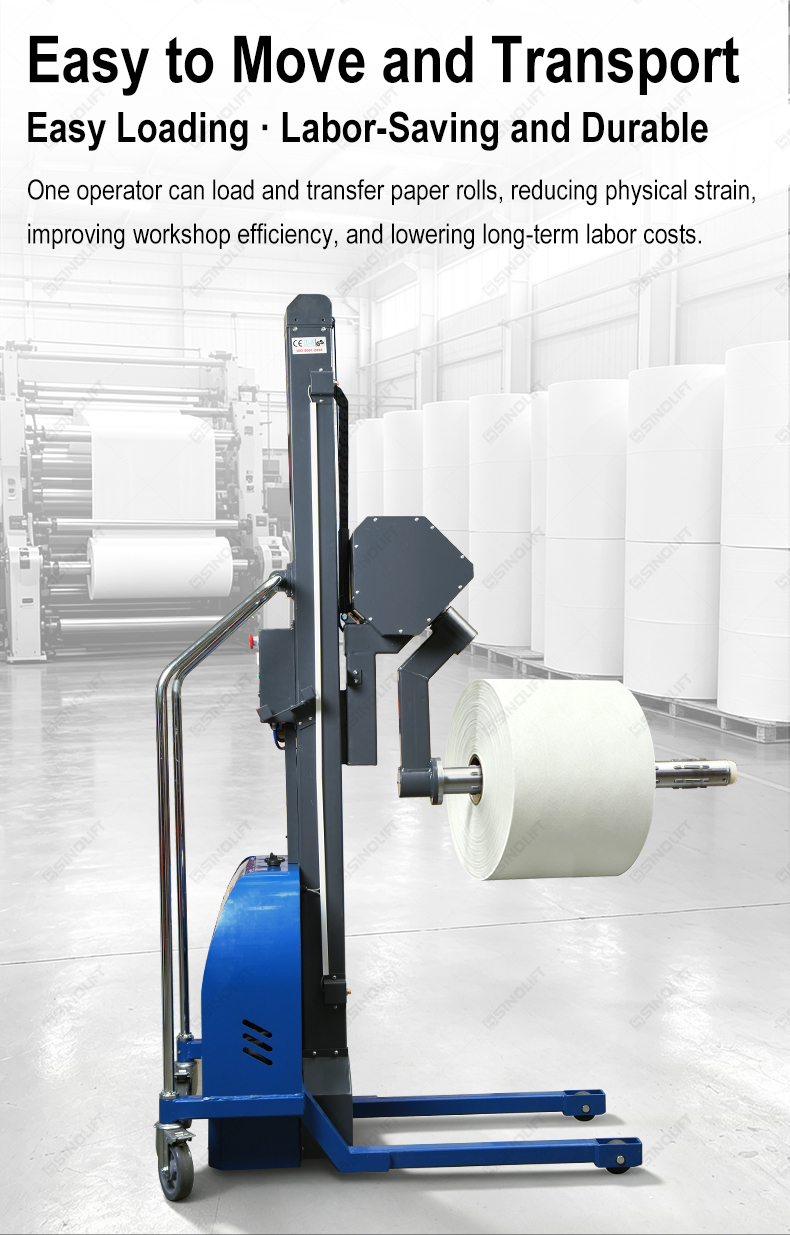

Yes, the QZA15 is designed to allow one trained operator to manage roll lifting, positioning, and short-distance transfer. Lifting and lowering are electrically powered, while travel is manually controlled by pushing the unit on its casters. This semi-electric operating arrangement offers a practical solution for workshops that need powered lifting without a motorized travel system.

Q4. Can the QZA15 rotate rolls between horizontal and vertical positions?

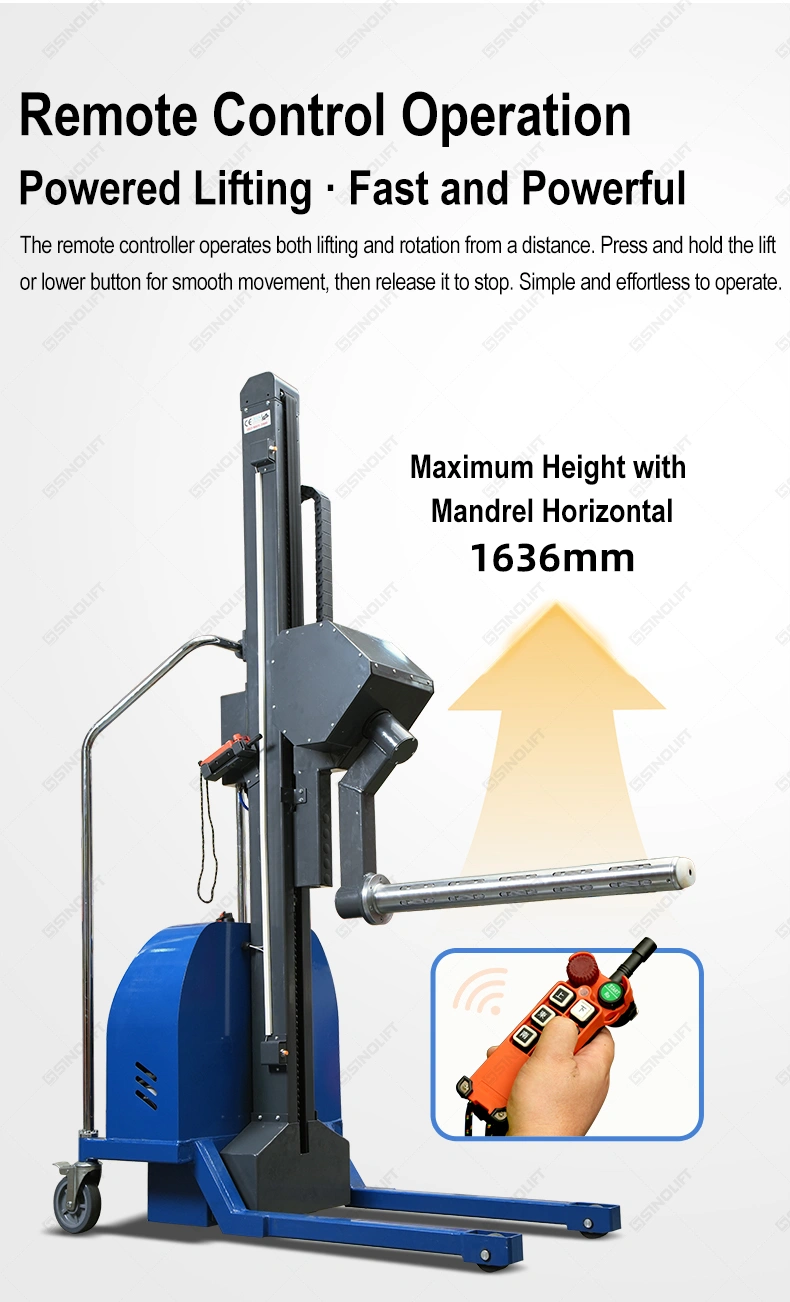

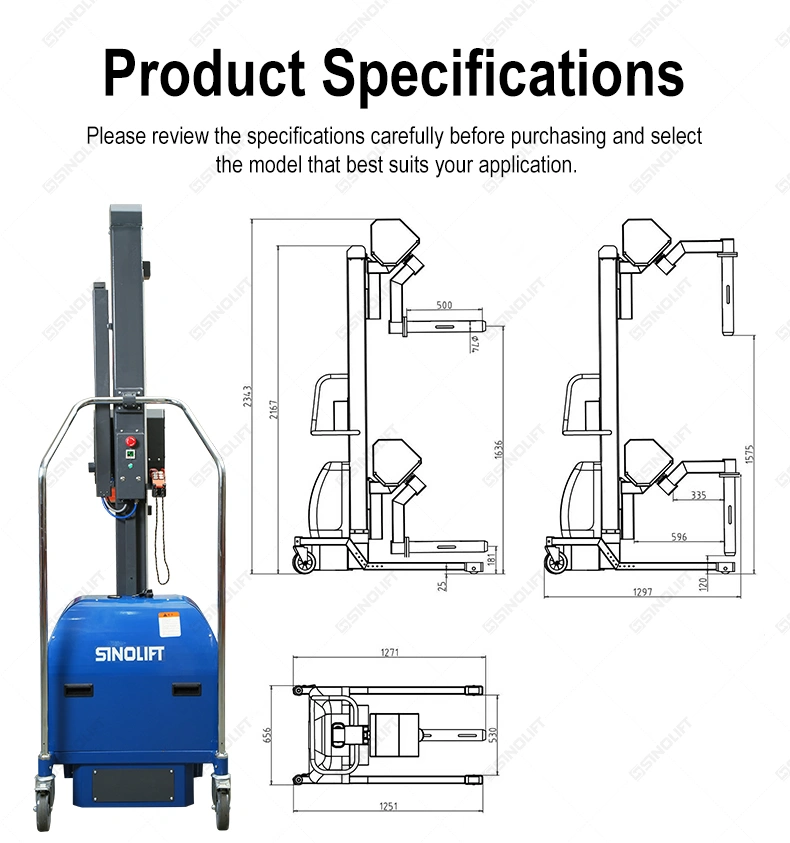

Yes, the adjustable mandrel supports 360° rotation and can be secured in vertical, horizontal, and inclined positions to suit different loading requirements. The published QZA15 configuration provides a maximum mandrel height of 1,636 mm, allowing rolls to be raised for machine-side positioning. Before ordering, the required loading height, roll diameter, orientation, and available machine clearance should be confirmed to ensure compatibility.

Q5. Can the QZA15 Electric Roll Lifter be customized for different production lines?

Yes, SINOLIFT offers customized roll handling solutions based on specific material dimensions and production requirements. Depending on technical feasibility, the mandrel dimensions, lifting height, and other handling configurations can be adapted to different applications. For an accurate recommendation and quotation, please provide your roll weight, outer diameter, core inner diameter, roll width, required loading height, and details of the working
