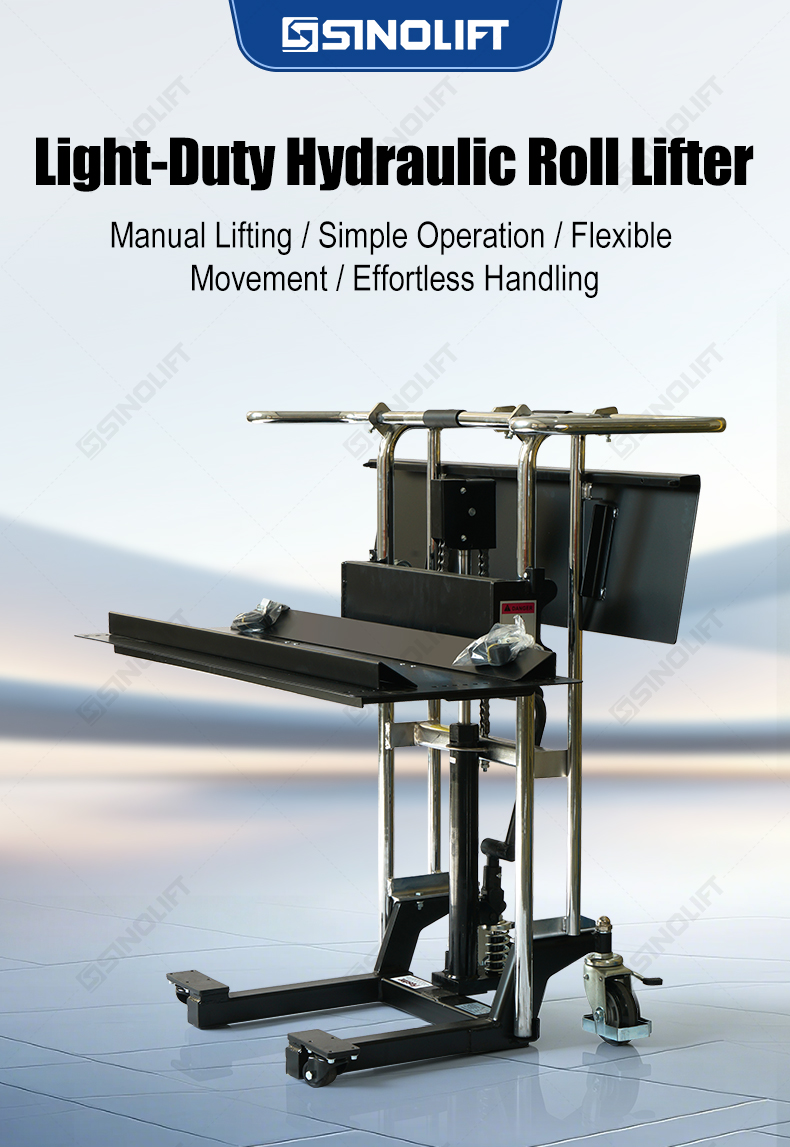

PR3080 Manual Paper Roll Lifter with Foot-Pedal Hydraulic Lift

Key Features

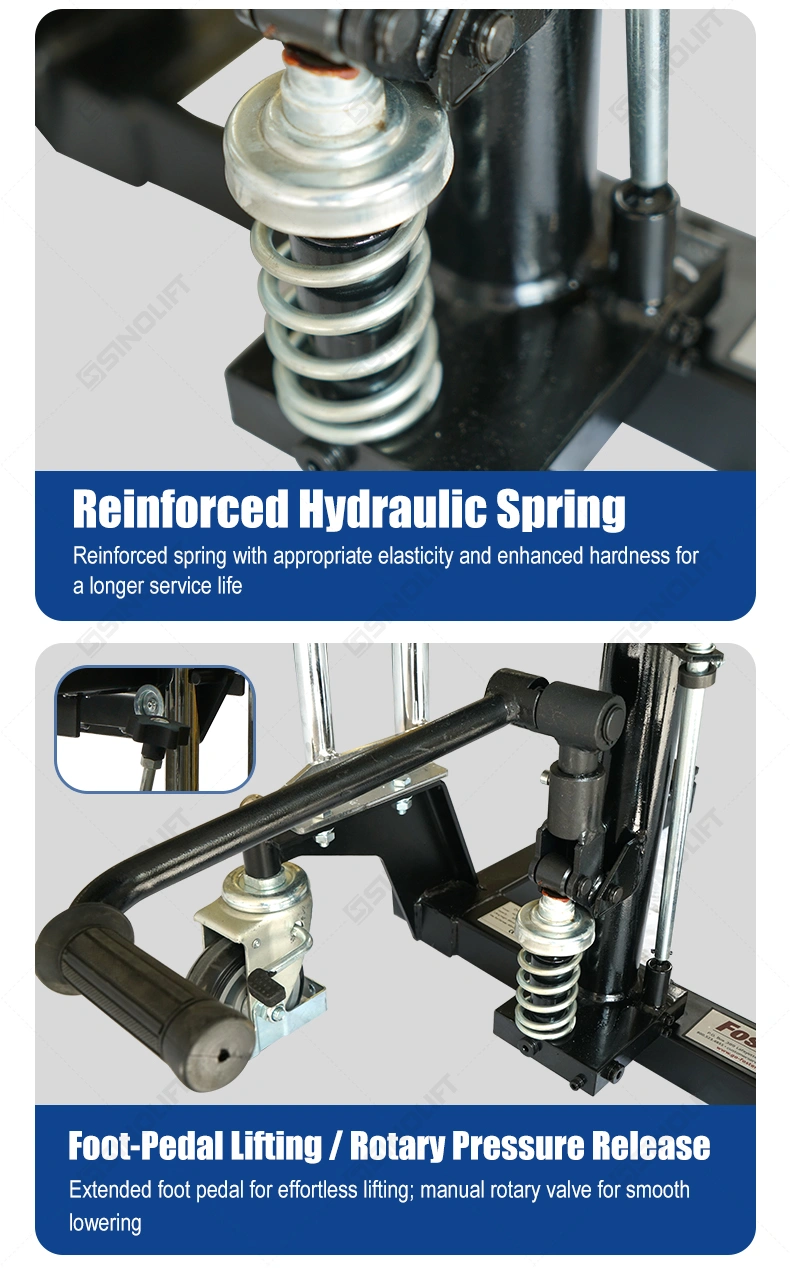

• Foot-Pedal Hydraulic Lift: Raise the platform using an extended foot pedal without relying on an electric lifting motor.

• Manual Pressure Release: A rotary release control allows the platform to be lowered in a controlled manner.

• 300 kg Rated Capacity: Suitable for handling compatible cylindrical materials within the equipment's load rating.

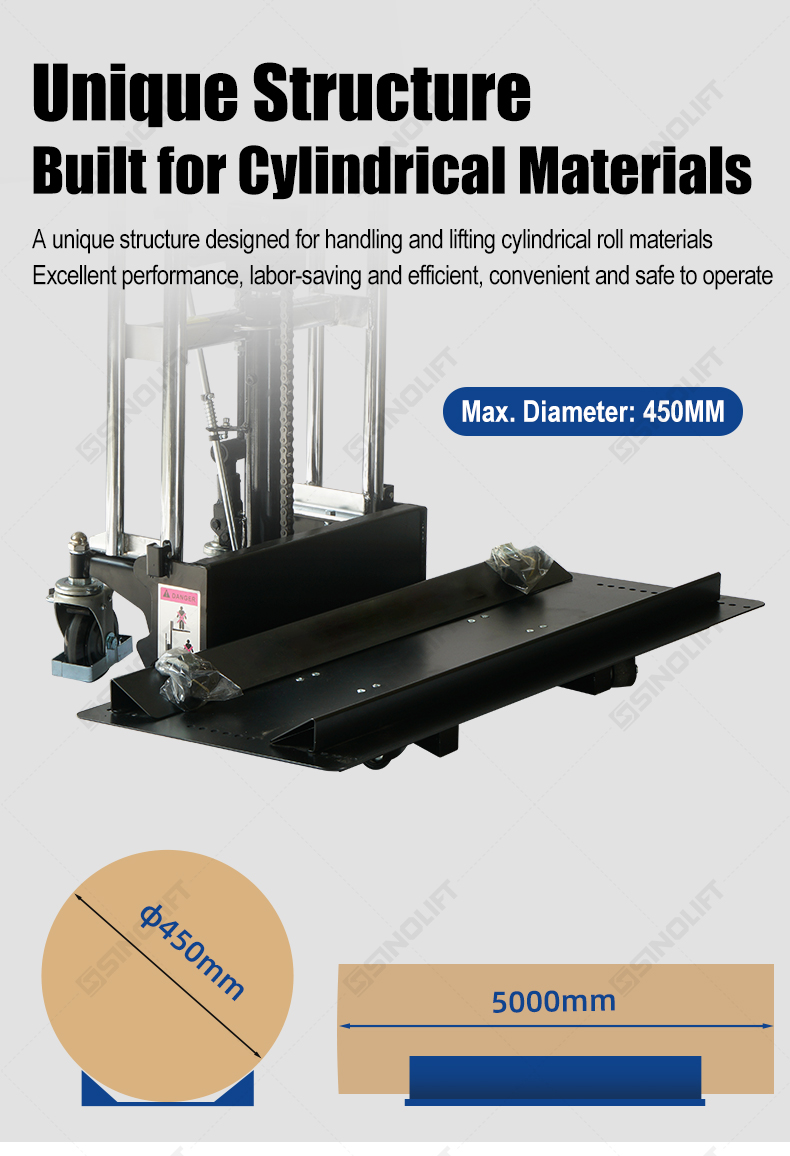

• Roll-Supporting Platform: A dedicated platform accommodates paper and film rolls with a maximum recommended diameter of 450 mm.

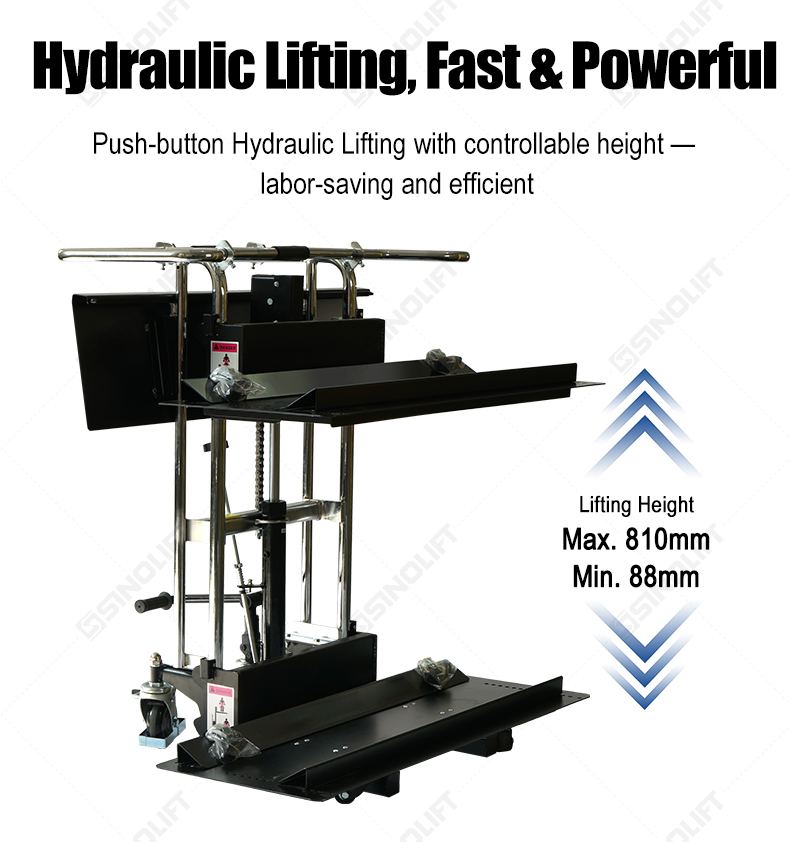

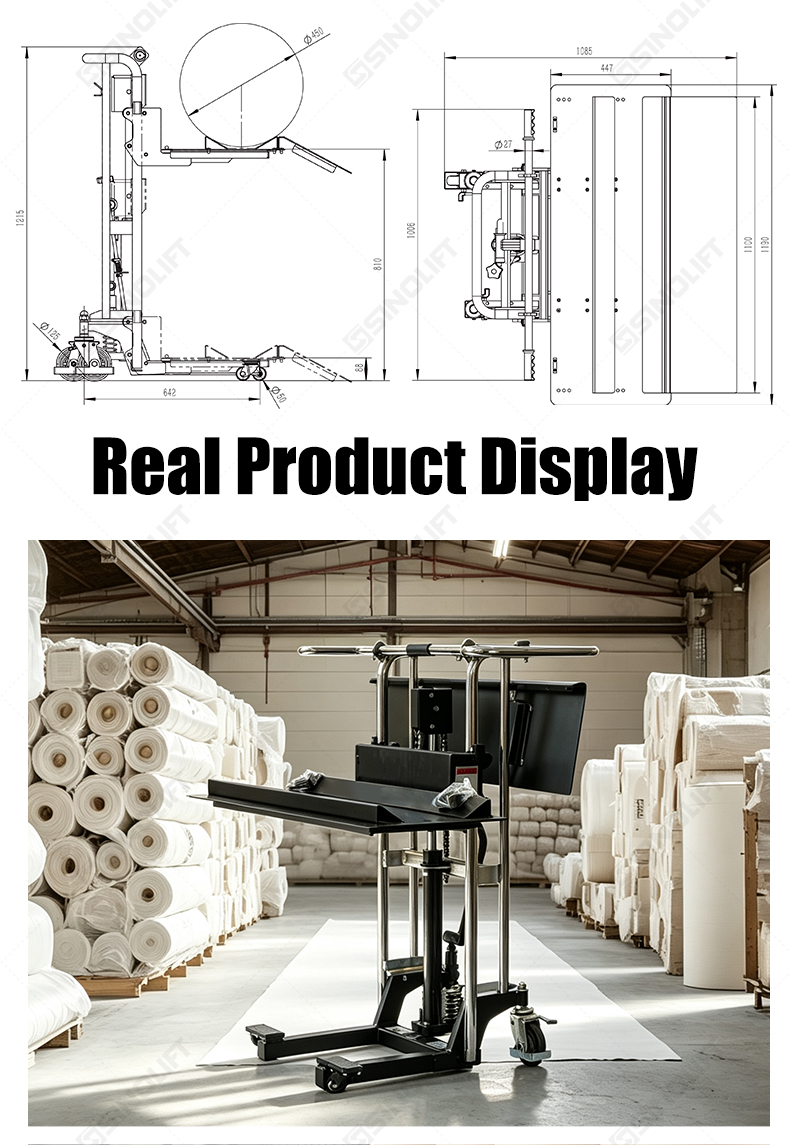

• Adjustable Working Height: A platform height range of 88–810 mm supports different low-level loading and positioning tasks.

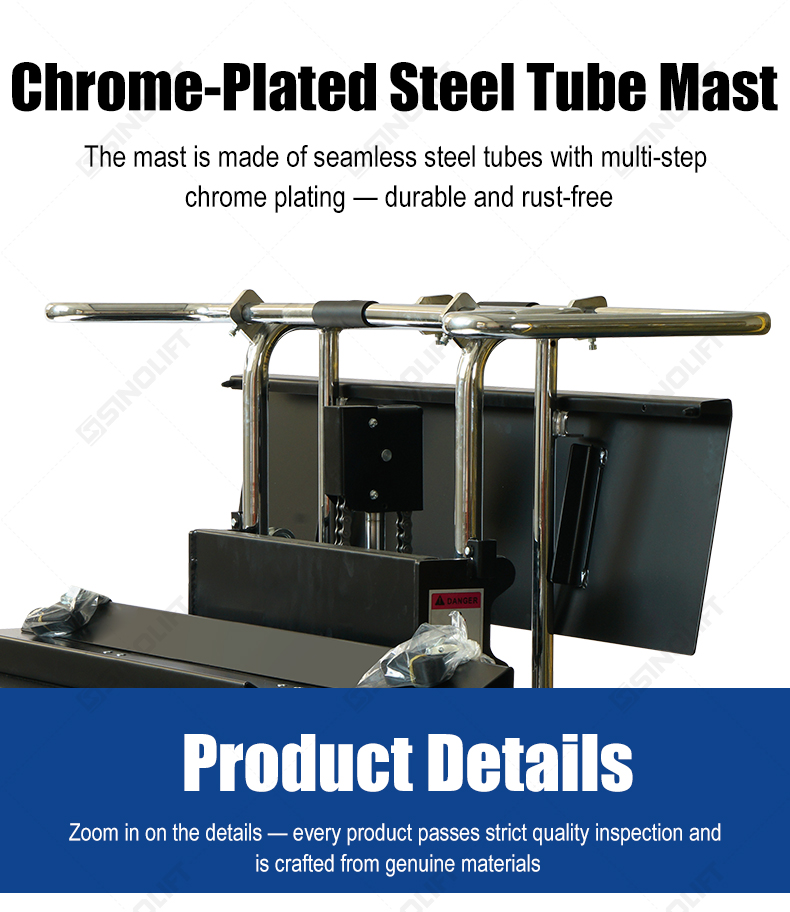

• Chrome-Plated Steel Tube Mast: Seamless steel tubes provide a durable guiding structure with improved corrosion resistance.

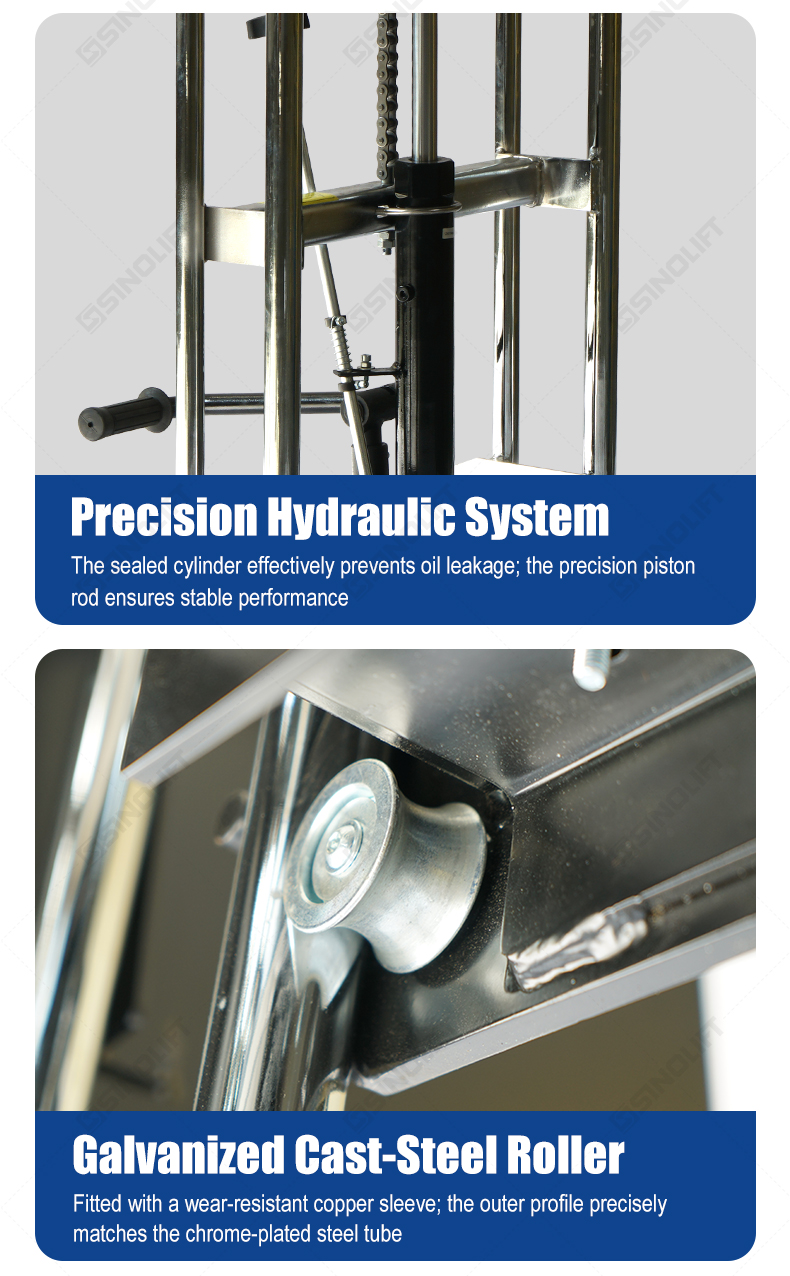

• Wear-Resistant Guide Rollers: Galvanized cast-steel rollers and copper bushings support smooth vertical movement.

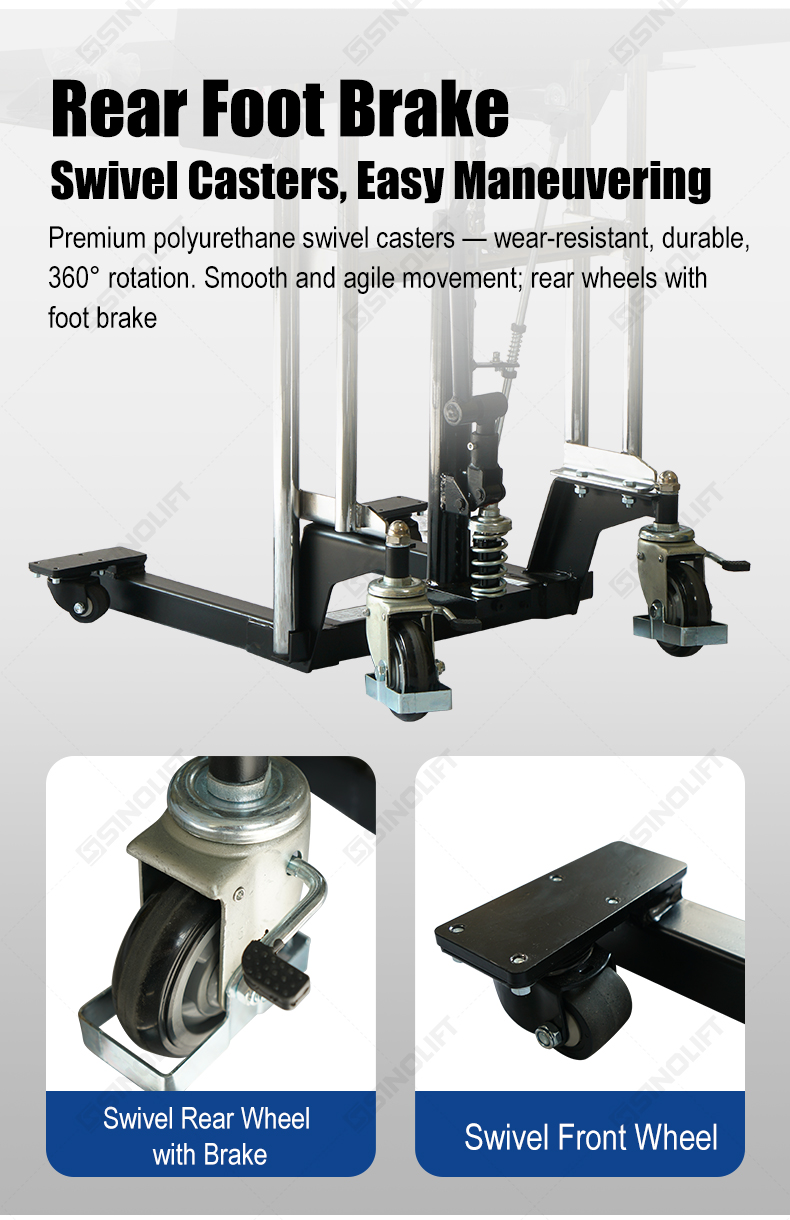

• Swivel Casters with Rear Brakes: Polyurethane casters support easy maneuvering, while foot-operated brakes help stabilize the unit during loading.

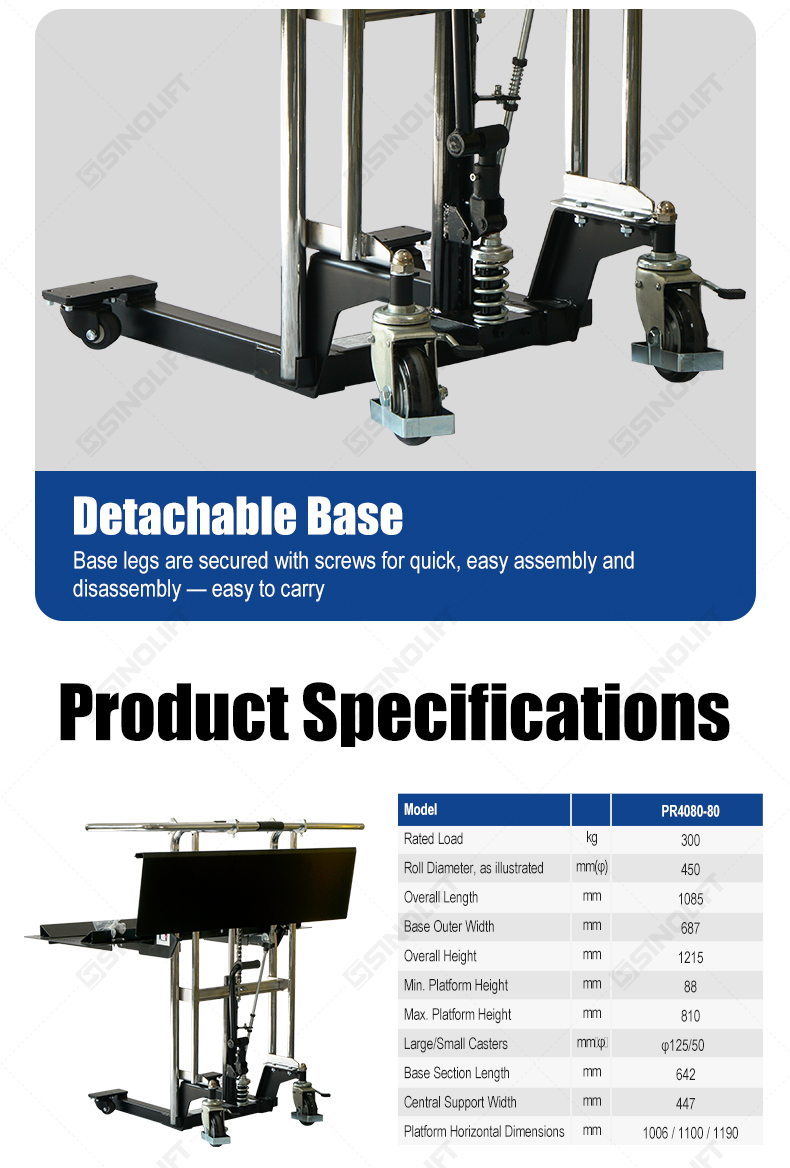

• Detachable Base Legs: Bolted connections allow the base to be disassembled for convenient transportation and storage.

• No Electric Power Required: The fully manual hydraulic lifting mechanism operates without batteries or charging equipment.

Frequently Asked Questions (FAQ)

Q1. What are the main advantages of a manual paper roll lifter compared with an electric model?

A manual paper roll lifter operates without batteries, charging equipment, or an electric lifting motor, making it a straightforward solution for occasional or moderate-frequency lifting tasks. Electric models may be more suitable for operations involving frequent lifting cycles, where reducing repeated foot-pedal operation is a priority.

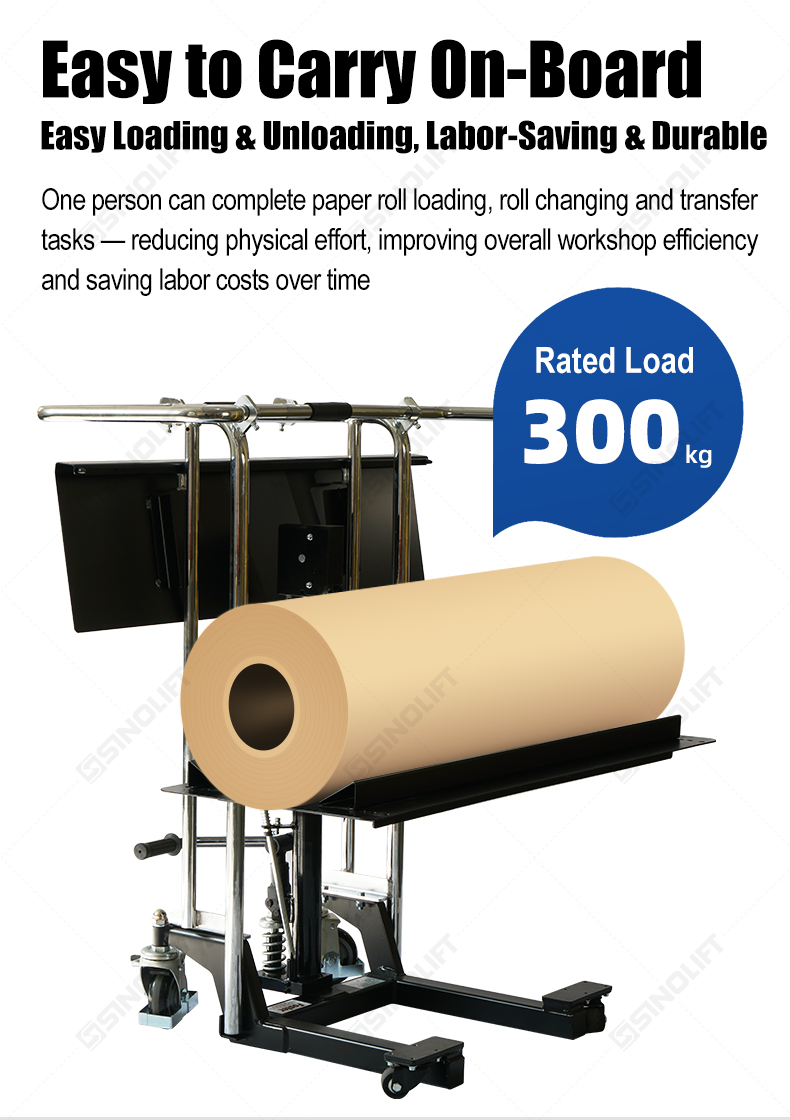

Q2. Can one person operate the PR3080 for paper roll loading and replacement?

The PR3080 is designed to allow a single trained operator to perform suitable roll lifting, positioning, and transportation tasks using the foot-pedal hydraulic mechanism. However, safe one-person operation depends on the load weight, roll dimensions, workstation layout, and established material-handling procedures.

Q3. Which production environments can benefit from this manual paper roll lifter?

The PR3080 is suitable for printing workshops, packaging facilities, paper processing plants, and film converting operations where cylindrical rolls need to be moved or positioned. It is especially useful for workstations that require an independent lifting solution without installing fixed lifting machinery.

Q4. Can the PR3080 be operated on uneven floors or outdoor surfaces?

The polyurethane swivel casters are intended primarily for smooth, firm, and level industrial floors, such as those commonly found in production workshops and warehouses. Uneven ground, steep slopes, and rough outdoor surfaces can affect load stability and maneuverability and should be avoided unless the equipment is specifically approved for those conditions.

Q5. What maintenance is required to keep the manual paper roll lifter working properly?

Regular inspection should include the hydraulic cylinder, foot pedal, release valve, mast, guide rollers, springs, casters, and wheel brakes. Operators should check for hydraulic leakage, worn components, loose fasteners, and abnormal movement, following the manufacturer's maintenance instructions before returning the equipment to service.
