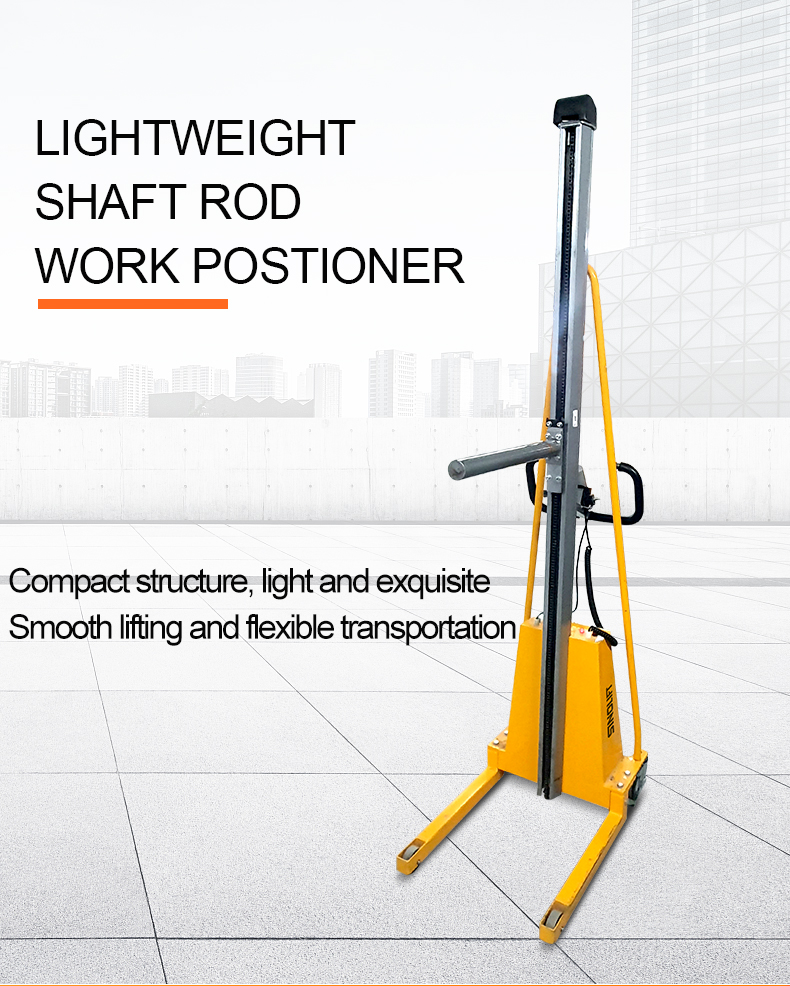

E series Electric Work Positioner with Shaft Rod
E100
Stronger motor, larger battery 12Ah, Low voltage protection.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...

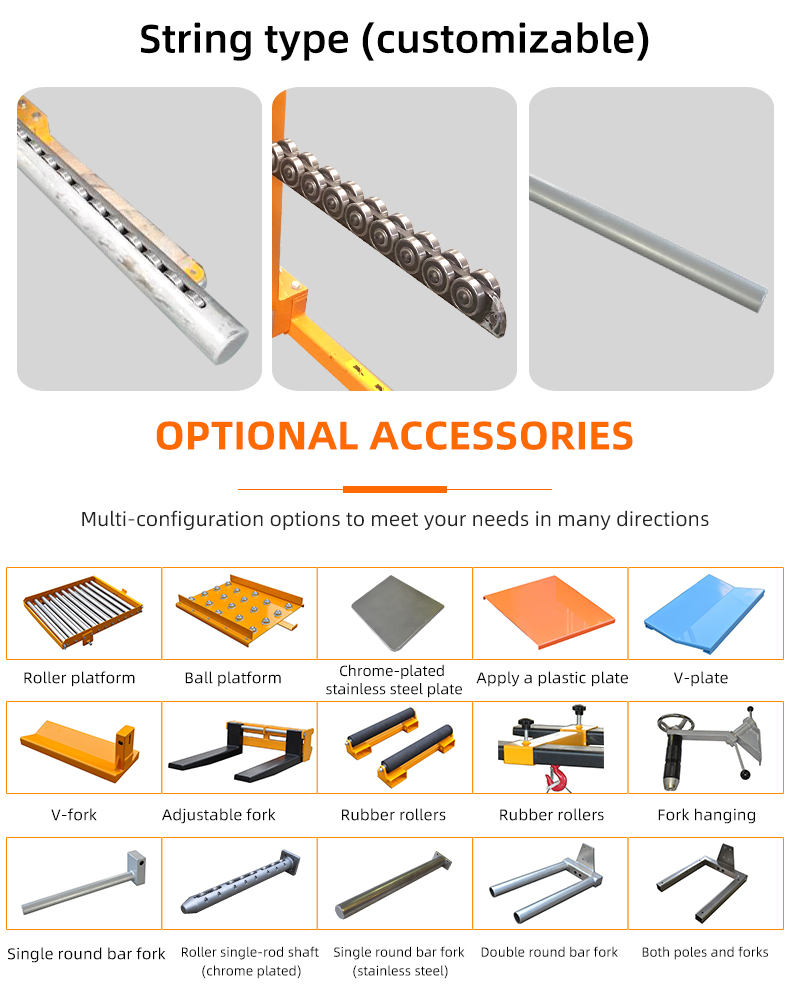

Various special design and optional accessories can be widely used.

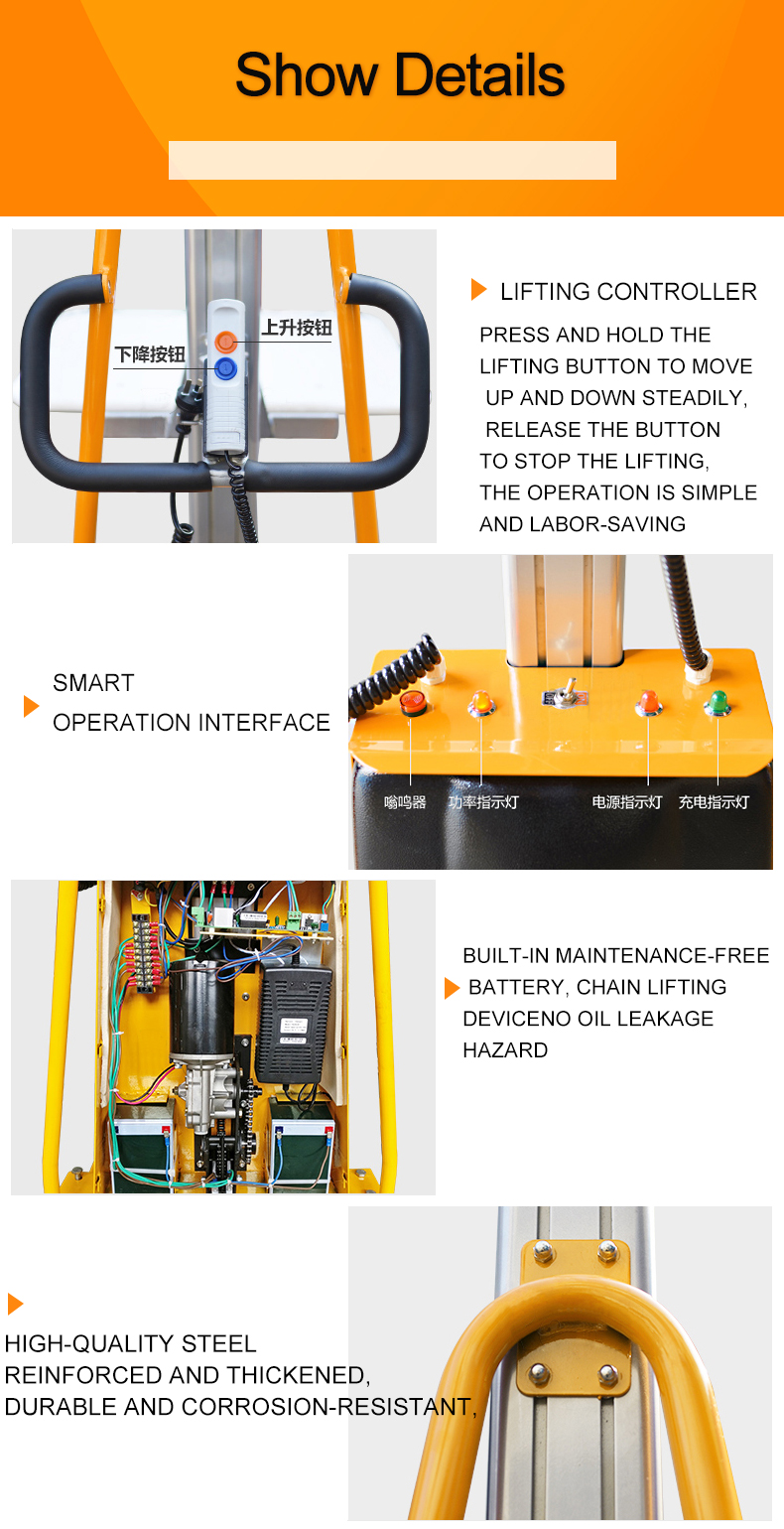

Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...
Various special design and optional accessories can be widely used.
Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.
Quantity:
E series Electric Work Positioner with Shaft Rod
Stronger motor, larger battery 12Ah, Low voltage protection.
A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...
Various special design and optional accessories can be widely used.
Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.
| Model | E80 | E100 | E100H | E150 | E200A | |
| (E80L) | (E100L) | (E100HL) | (E150L) | (E200L) | ||
| Capacity | (kg) | 80 | 100 | 100 | 150 | 200 |
| Load Centre | (mm) | 230 | 230 | 230 | 230 | 230 |
| Max.Platform Height | (mm) | 1500 | 1700 | 2000 | 1500 | 1200(1500) |
| Min. Platform Height | (mm) | 130 (80mm for steel Platform) | ||||
| Min. Fork Height | (mm) | 20~80 | 20~80 | 20~80 | 20~80 | 20~80 |
| Outrigger Height | (mm) | 110mm (with universal front wheel) / 80mm (Fixed front wheel) | ||||
| Platform Size | (mm) | 470x600 (PE) | ||||
| Overall Size | (mm) | 870x600x1990 | 870x600x1990 | 870x600x2290 | 870x600x1790 | 950x650x1490(1790) |
| Load Wheel | (mm) | Ø75 PU, Universal or Fixed type | ||||
| Steering Wheel | (mm) | Ø125 (PU) | ||||
| Power Unit | V/W | 24/200 | ||||
| Battery (Service Free) | V/Ah | 24V/12(17)Ah | ||||
| Net Weight | (kg) | 66 | 62 | 68 | 65 | 78 |
