Quick Answer

Paper roll handling equipment should be selected from the complete transfer task: the roll dimensions and surface, pickup and delivery heights, route, machine interface, moves per shift, and required orientation. A V-shaped roll stacker fits a horizontal roll that can be supported from below, while a clamp or core mandrel serves different handling needs. For SINOLIFT's manually travelled models, choose the PV when lifting is occasional and a simple hydraulic system is preferred; choose the EPV when repeated vertical lifting makes push-button operation more practical. Both configurations must be approved against the actual roll and site. The risk case is measurable: HSE statistics for 2024 and 2025 report 511,000 workers with work-related musculoskeletal disorders and 7.1 million working days lost in Great Britain.

Key Takeaways

• Start with the load interface. A cradle, clamp, mandrel, platform, and pallet truck solve different problems even when the roll weight is identical.
• Specify roll mass, outside diameter, width, core size, orientation, surface sensitivity, center of gravity, and approved support points before discussing capacity.
• The PV uses foot-pedal hydraulic lifting and manual travel; the EPV uses electric lifting and manual travel, so neither model removes route-related push and pull effort.
• A 400 kg rating is only one selection limit. Lift height, roll overhang, contact geometry, floor condition, braking, visibility, and machine clearance also control suitability.
• Require a dimensioned drawing and a representative-load site trial before approving a customized paper roll handling machine.

Why Paper and Film Rolls Need Purpose Built Handling

Paper roll handling equipment controls a load that can rotate, shift laterally, deform at its surface, or run away when the floor is not level. A standard flat fork or platform may carry the mass but may not control rolling during acceleration, braking, turning, or lifting. The support shape and transfer method therefore matter as much as nominal capacity.

Paper quality can also be damaged by the wrong contact method. The paper handling and logistics best practice guide explains that equipment should match the grade, weight, density, dimensions, and point in the logistics chain. Clamp force, pad condition, roll labels, and handling volume matter for clamp-based systems; a supported cradle application requires an equivalent check of contact area, roller geometry, restraints, and product marking.

The correct definition of the task is a controlled transfer between two known interfaces. Typical examples include storage to a printing press, slitter to packing station, film warehouse to unwinder, or floor pallet to an inspection bench. Each interface has its own centerline height, clearance, approach direction, orientation, and release method.

Collect Roll Route and Interface Data First

A useful specification begins with measured data rather than a product name. Buyers should record the smallest and largest roll, the most difficult route, the highest transfer point, and the peak work sequence. A supplier cannot confirm a custom design responsibly if only maximum weight is provided.

Input	What to record	Why it changes selection	Evidence to request
Roll	Minimum typical and maximum mass diameter width core and orientation	Defines support geometry capacity and overhang	Dimensioned roll drawing and sample
Surface	Paper grade film type wrapper softness cleanliness and marking limits	Determines allowable contact and roller material	Representative-roll condition check
Pickup	Floor pallet cradle rack or machine height and approach direction	Sets leg clearance and loading method	Pickup interface drawing
Delivery	Final centerline support height shaft clearance and release direction	Sets lift height mast layout and positioning method	Machine drawing or site measurement
Route	Distance aisles turns doorways joints slopes debris and pedestrian crossings	Controls maneuverability effort and stopping risk	Loaded route trial
Duty	Moves per hour lifts per shift peak sequence and shifts per day	Separates occasional duty from repetitive lifting	Observed cycle log
Environment	Temperature moisture dust hygiene corrosion and classified areas	Changes material electrical and maintenance requirements	Written site-condition schedule

Choose the Load Interface Before the Power System

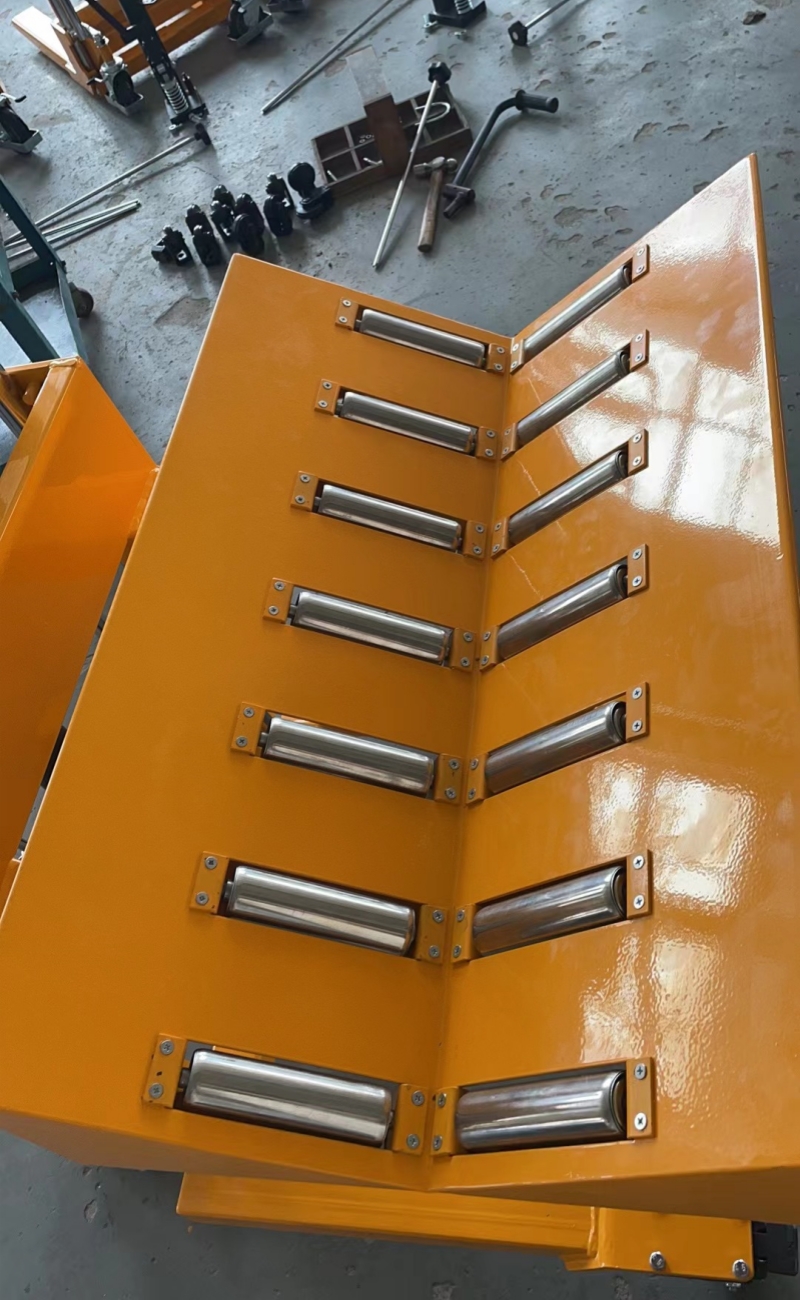

The load interface should be selected before manual or electric lifting is compared. A V-shaped cradle supports a horizontal roll from below, a core mandrel engages the roll bore, an external clamp grips the circumference, and flat forks normally require a pallet or an engineered support. These methods are not interchangeable.

Method	Best suited to	Main advantage	Main limitation	Buyer check
V-shaped cradle	Horizontal rolls supported from below	Simple stable support with low contact pressure	Does not rotate or grip the roll	Diameter contact overhang and transfer direction
Core mandrel	Rolls with a suitable structural core	Protects sensitive outer layers	Core strength and size must be verified	Core diameter material engagement and expansion
External clamp	Rolls that must be gripped lifted or rotated	Controls orientation without a pallet	Incorrect pressure can damage the wrapper or roll	Clamp force pad condition and approved diameter range
Pallet or platform	Palletized or already restrained rolls	Uses conventional handling equipment	Support or restraint is still required	Pallet rating fork entry and roll blocking

SINOLIFT's broader roll and reel handling equipment category shows why the attachment decision comes first. When a V-platform is not the right interface, buyers may need a rotating clamp, expanding mandrel, purpose-built trolley, or another specialized handler rather than a modified standard stacker.

Compare the PV and EPV by Work Pattern

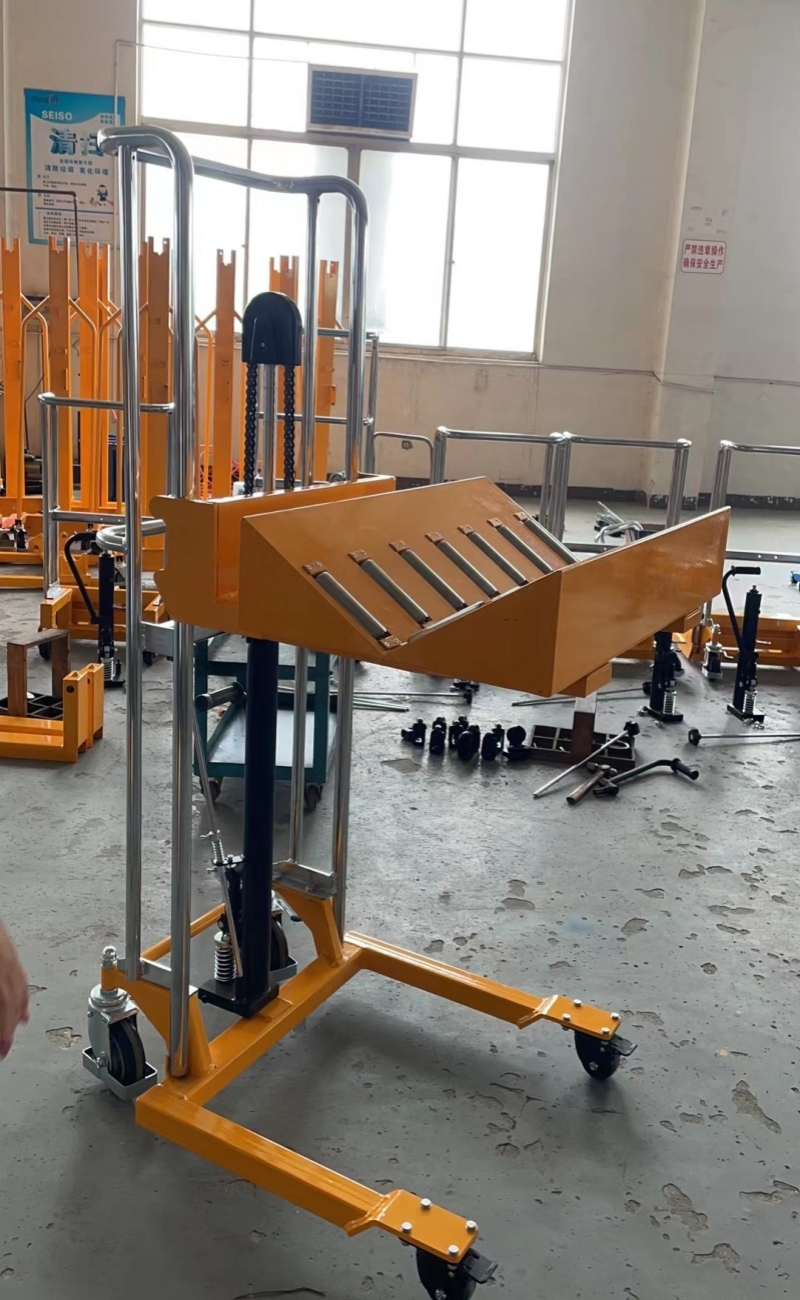

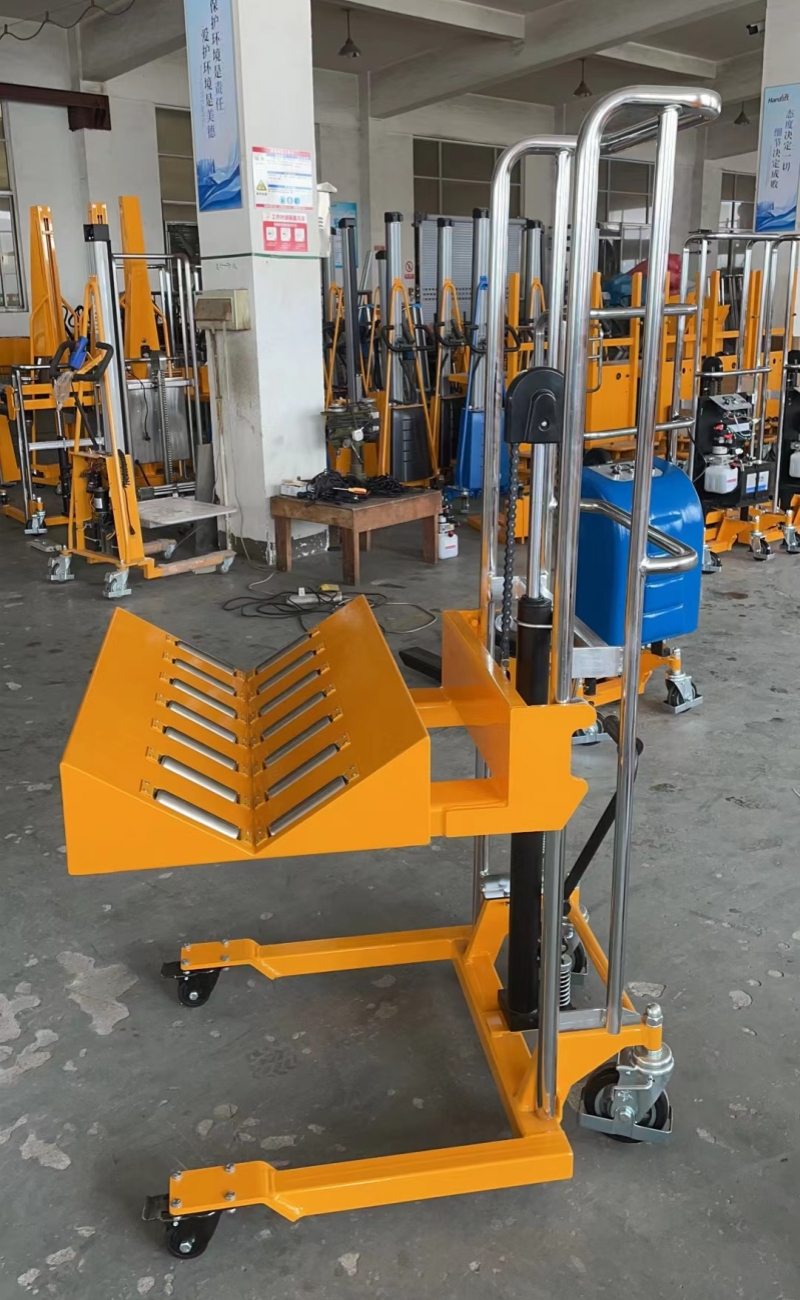

The PV and EPV address the same basic roll-support task but differ in vertical actuation. The PV raises the V-shaped platform by foot-operated hydraulic pumping, approximately 20 mm per pedal stroke in the supplied product information. The EPV uses push-button electric lifting at approximately 50 mm per second. Both are manually pushed and steered.

Selection factor	PV manual hydraulic	EPV semi electric	Decision rule
Lift method	Foot-pedal hydraulic lift	Push-button electric lift	Choose EPV when repeated pumping is the bottleneck
Travel	Manual	Manual	Test both on the real route at maximum approved load
Rated load	400 kg	400 kg	Confirm roll geometry and center of gravity as well as mass
Lift options	Approximately 0.85 to 2.0 m	Approximately 0.85 to 2.0 m	Specify the required support or machine centerline height
Utilities	No battery or charger	Battery charger motor and controls	Include charging access inspection and replacement planning
Typical duty	Occasional lifts and simple indoor transfers	Repeated lifts with short manual travel	Consider powered travel if route effort remains high

When the PV Is the Better Fit

The PV manual roll handling stacker is usually appropriate when lifts are occasional, the transfer path is short and level, and the operator can control the loaded truck without excessive force. A power-free hydraulic system simplifies charging and electrical maintenance, which can suit a small print shop, backup station, maintenance area, or low-frequency product change.

The PV should not be chosen only because its purchase price is lower. Buyers should observe several complete cycles with the heaviest approved roll, including loading, pedal access, steering, stopping, lowering, and parking. Repetition can turn an acceptable single cycle into an unsuitable daily task.

When the EPV Is the Better Fit

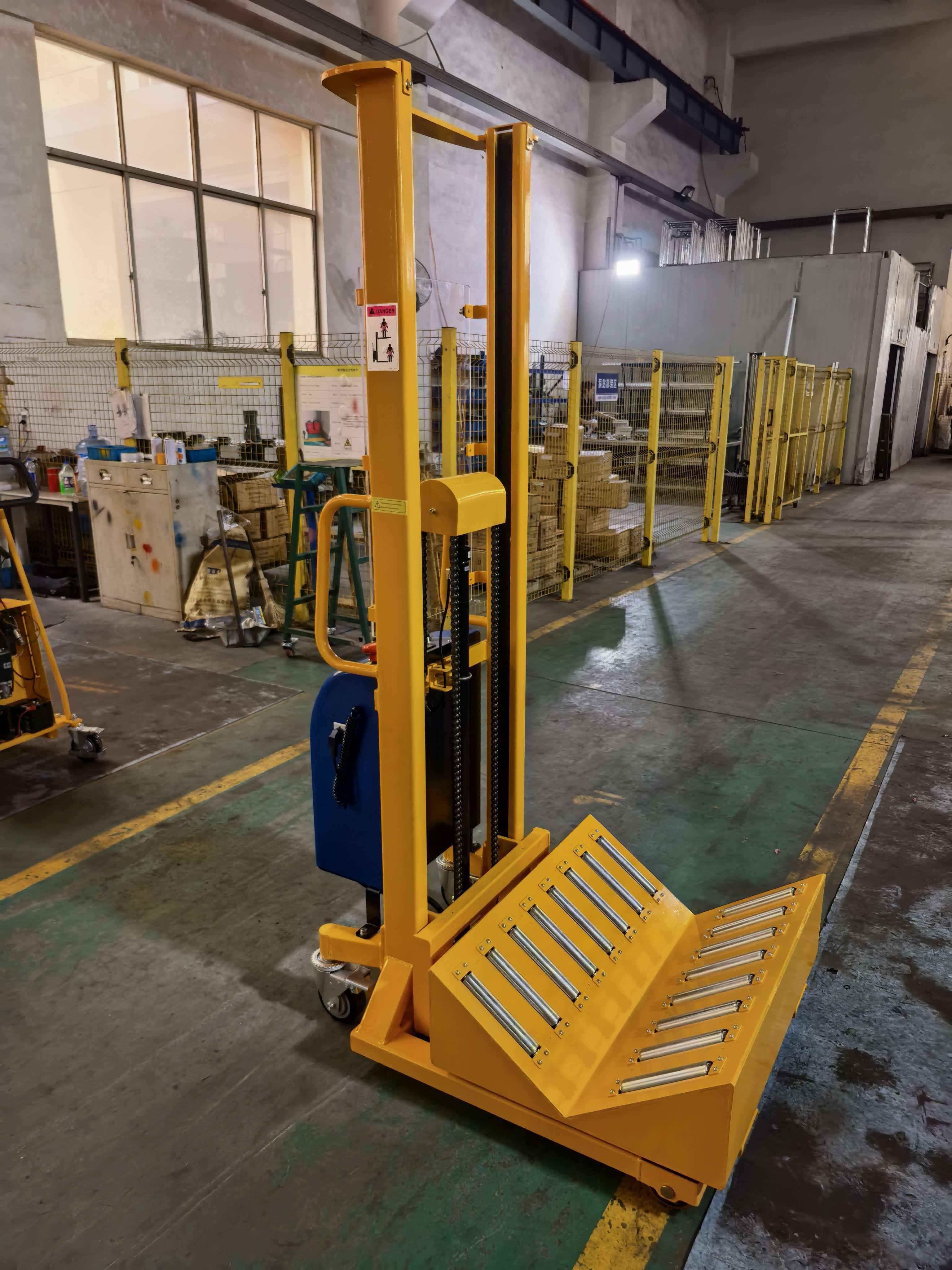

The EPV semi electric roll handling stacker is usually appropriate when vertical lifting repeats often enough to justify powered lift but travel remains short enough for manual movement. Push-button control can reduce pedal work and make lift timing more consistent during film-roll changes, paper converting, inspection, or line-side replenishment.

The EPV remains a manually travelled machine, so electric lifting does not solve long routes, ramps, damaged floors, or frequent tight turns. Battery state, charging location, cable and control inspection, low-voltage protection, and replacement availability become additional ownership requirements.

When Another Equipment Type Is Required

A different equipment class is required when the process needs powered travel, long-distance movement, high throughput, roll rotation, external clamping, core expansion, or accurate axial insertion. A customized V-platform cannot create functions that the process fundamentally requires. The decision should move back to the load interface and workflow rather than adding features to an unsuitable base machine.

Relevant alternatives may be found in the pallet stacker range, forklift attachment range, or electric pallet truck range. A conventional hand pallet truck is suitable only when the roll is carried on a properly rated pallet or engineered support and no elevated placement is required.

Match the Equipment to the Application

Printing plants usually need controlled movement from roll storage to the web press or staging position. The equipment must clear press guards and frames, reach the correct loading centerline, and leave enough room for the operator to see the roll and control the truck. If a shaft must pass through the core, verify whether the V-platform can align and release the roll without manual levering.

Flexible packaging and film converting plants usually place a higher priority on surface protection and frequent changeovers. Soft film layers can telescope, mark, or deform when contact is concentrated. The final platform drawing should show roller spacing, contact material, roll overhang, and any stops or restraints used during travel.

Paper converting and label operations often handle several roll sizes around slitters, rewinders, coaters, laminators, and inspection machines. Multiple-size duty should be treated as an approved operating envelope, not an assumption that one V-shaped tray fits every roll. Test the smallest diameter, largest diameter, narrowest roll, widest roll, and the combination that produces the most difficult center of gravity.

Warehouses and line-side stores need equipment that fits the entire route, not only the storage bay. Door thresholds, floor joints, drainage channels, pedestrian crossings, turning space, and parking locations can determine whether a manually travelled roll lifter remains controllable. Long routes or sloped floors may justify powered travel even when the vertical lift frequency is low.

Use Current Ergonomic and Safety Evidence

Mechanical assistance is valuable because roll handling combines awkward geometry with pushing, pulling, lifting, and restraint. The CCOHS manual materials handling guide identifies excessive weight, poor grip, unstable contents, awkward height, repetition, and difficult workplace conditions as risk factors. Its guidance on mechanical aids recommends selecting equipment for the task, training operators, inspecting equipment, and generally pushing rather than pulling.

Printing-specific guidance reaches the same conclusion. The OSHA flexography eTool identifies heavy lifting, forceful gripping, bending, and manual transfer as hazards when paper, film, and foil rolls move between pallets and presses. OSHA recommends a lift or other mechanical assistance for roll transfer, but the lift must still match the actual load and machine interface.

Recent injury data show why these controls remain relevant. HSE non-fatal injury statistics attribute 17 percent of employer-reported non-fatal injuries in 2024 and 2025 to handling, lifting, or carrying. The 2024 EU workplace survey found repetitive hand or arm movements reported as a risk factor by 63 percent of workplaces. These figures do not predict the risk of one machine, but they support measuring force and repetition instead of relying on intuition.

ISO 3691 5 gives safety requirements and verification methods for pedestrian-propelled industrial trucks within its stated scope, including stackers with manual or battery-powered lifting. Buyers should also identify the laws, standards, training duties, markings, inspections, and documentation that apply in the destination country and to the final customized configuration.

Run a Representative Load Acceptance Test

A site acceptance test should reproduce the hardest approved task before the equipment enters routine service. The trial needs the intended operator, the actual route, the real pickup and delivery points, and the most demanding approved roll. An empty demonstration cannot confirm loaded stability, product protection, manual force, or machine access.

1.  Verify the approved drawing, nameplate, rated load, lift range, overall dimensions, electrical data, wheel arrangement, and documented roll envelope.

2.  Inspect the mast, chain, cylinder, V-platform, rollers, fasteners, wheels, brakes, controls, guards, wiring, battery, charger, labels, and hydraulic system.

3.  Run empty lift and lowering cycles, then repeat with the representative roll while checking smooth motion, controlled descent, leakage, noise, sway, and roll movement.

4.  Complete the real route and record starting, sustained, turning, and stopping effort, including floor joints, narrow points, and the operator's visibility.

5.  Confirm the equipment reaches the required centerline, clears machine frames and guards, and releases the roll without improvised lifting, levering, or hand restraint.

6.  Check parking stability and brake function on the approved surface, then record photographs, measurements, test results, training, and the accepted final configuration.

Specify Customization in the RFQ

A customization request should define measurable requirements and acceptance evidence. Phrases such as suitable for paper rolls or customized height are too broad. The quotation should identify the approved roll envelope, support method, platform dimensions, wheel material, lift range, overall dimensions, power system, controls, finishes, documentation, and excluded operating conditions.

• Maximum and minimum roll weight, outside diameter, width, core size, orientation, surface material, wrapping, and allowable marking
• Pickup and delivery heights, machine centerline, approach direction, release method, guard clearances, and photographs or drawings
• Travel distance, aisle and doorway dimensions, turning points, floor condition, gradients, thresholds, and pedestrian interaction
• Moves per hour, lifts per shift, shifts per day, peak sequence, expected service life, and required availability
• Required support, rollers, stops, restraints, clamps, mandrels, rotation, tilt, side movement, or powered travel
• Destination country, applicable standards, language, electrical supply, required certificates, manuals, labels, spare parts, warranty, and training

Compare Total Cost by the Complete Cycle

Total cost should be calculated from the full handling cycle rather than the purchase price alone. For the PV, include operator time, pedal cycles, inspection, hydraulic service, chains, rollers, casters, brakes, and seals. For the EPV, include the same mechanical items plus charging time, electricity, battery replacement, charger, motor, wiring, switches, and control components.

A short time study gives better evidence than a general productivity claim. Observe at least 20 representative cycles when practical, record the complete pickup-to-release time, and note delays caused by alignment, steering, floor resistance, charging, or manual adjustments. The result can show whether electric lift solves the real bottleneck or whether a different interface or powered travel would have a larger effect.

Frequently Asked Questions

What is paper roll handling equipment

Paper roll handling equipment is machinery designed to lift, move, position, support, grip, rotate, or transfer cylindrical paper rolls. The category includes V-cradle stackers, core-gripping lifters, roll clamps, trolleys, work positioners, pallet-based systems, and powered industrial trucks, each intended for a different load interface.

How do I choose between a V-shaped cradle and a roll clamp

Choose a V-shaped cradle when a horizontal roll can be supported from below and does not need to be gripped or rotated. Choose a clamp only when the approved process requires external gripping or orientation control, and confirm clamp pressure, pad condition, roll diameter, surface sensitivity, and the manufacturer's capacity data.

Is the EPV a fully electric roll stacker

No. The EPV is a semi-electric configuration because its lifting function is powered while travel remains manual. This distinction matters when the route is long, sloped, uneven, or frequently used, because the operator still supplies the force to move and stop the loaded truck.

Can the PV and EPV handle any roll below 400 kg

No. The 400 kg rating must be checked together with roll diameter, width, center of gravity, overhang, platform contact, lift height, travel conditions, and the final customized structure. The supplier should approve the complete roll envelope and operating method in a dimensioned drawing.

Can a V-platform load a roll directly onto a printing or converting machine

Direct loading may be possible when the platform can reach the required centerline, approach the machine, clear guards and legs, align the core, and release the roll without manual levering. If axial insertion, rotation, tilt, clamping, or high positioning accuracy is required, another attachment or work-positioning design may be necessary.

What maintenance does paper roll handling equipment need

Maintenance depends on the configuration and duty cycle, but routine checks normally cover structural fasteners, mast guides, chains, rollers, casters, brakes, hydraulic leakage, controls, labels, and load-support surfaces. Semi-electric models also require battery, charger, motor, wiring, switches, and protection-function checks according to the manufacturer's instructions.

What should I send the supplier before requesting a custom quotation

Send the minimum, typical, and maximum roll data; pickup and delivery dimensions; machine drawings or photographs; route measurements; floor and environmental conditions; required cycle rate; destination-country requirements; and the exact movement the roll must perform. Ask the supplier to return an approved drawing, technical schedule, exclusions, test plan, documentation list, delivery scope, spare-parts proposal, and warranty terms.
