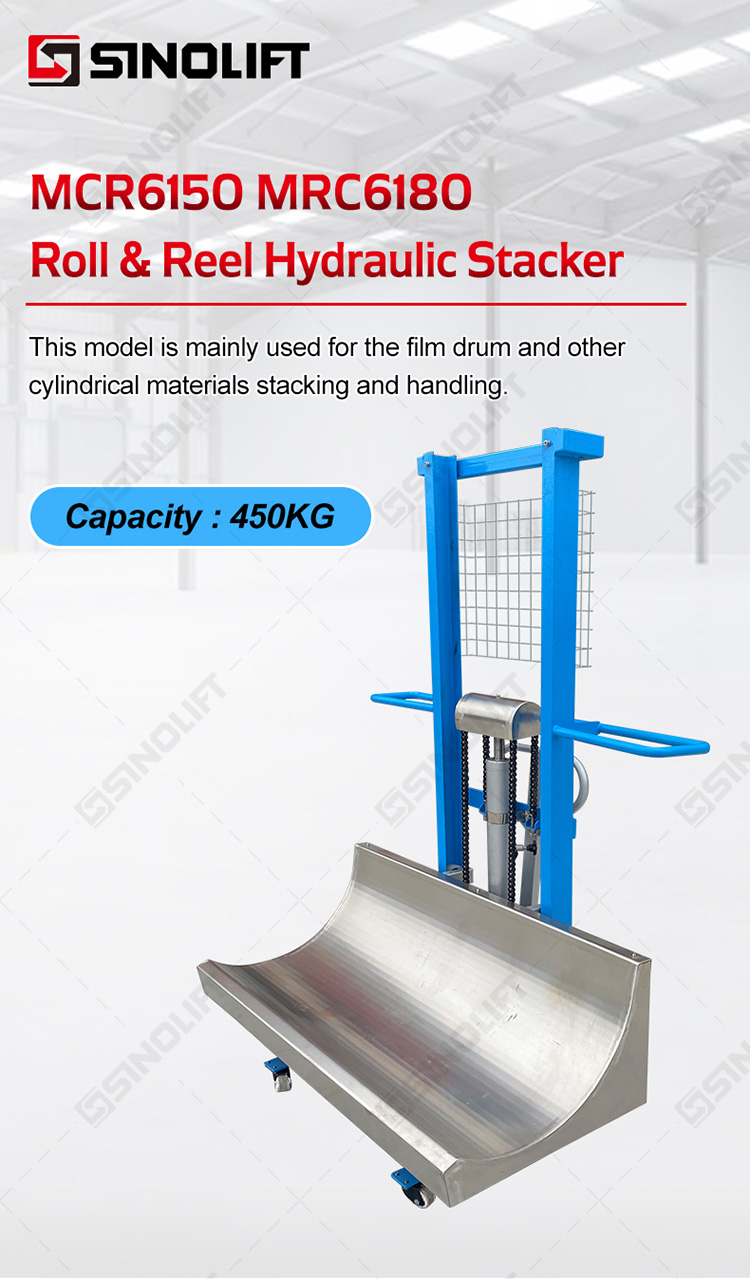

MCR6150 MRC6180 Roll & Reel Hydraulic Stacker
MCR
Quantity:

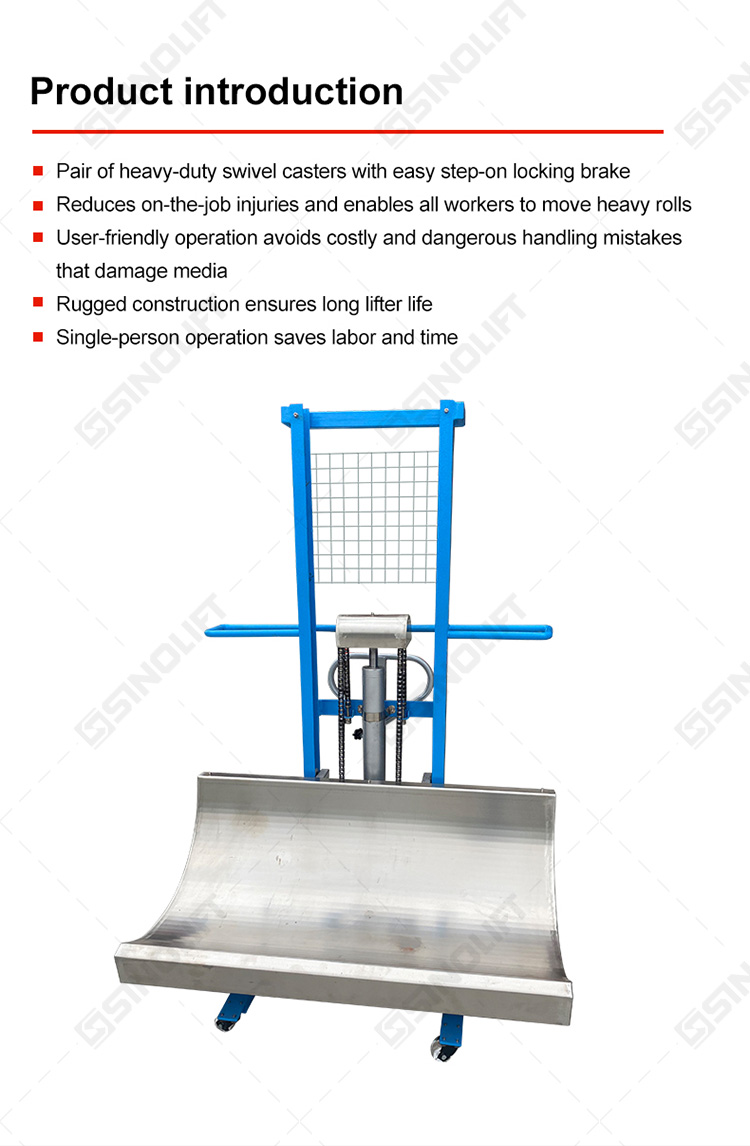

- Pair of heavy-duty swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time

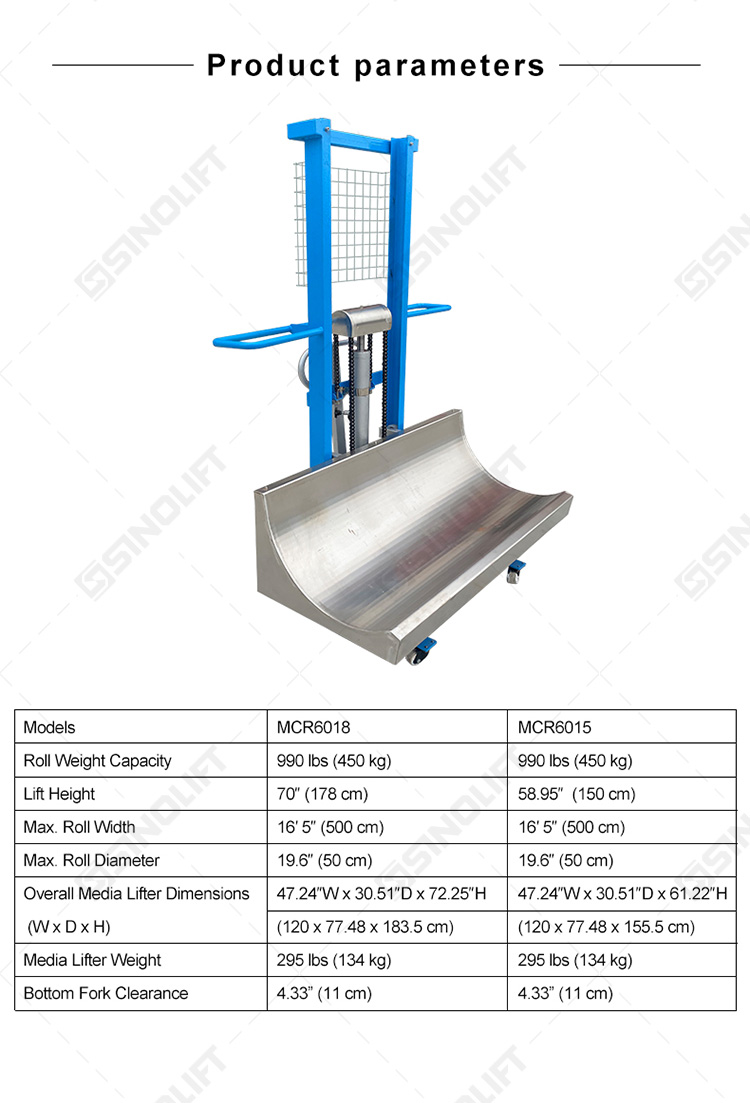

SPECIFICATIONS MCR6018 MCR6015 Roll Weight Capacity 990 lbs (450 kg) 990 lbs (450 kg) Lift Height 70″ H (178 cm) 58.95″ H (150 cm) Max. Roll Width 16′ 5″ (500 cm) 16′ 5″ (500 cm) Max. Roll Diameter 19.6″ (50 cm) 19.6″ (50 cm) Overall Media Lifter Dimensions (W x D x H) 47.24″W x 30.51″D x 72.25″H 47.24″W x 30.51″D x 61.22″H (120 x 77.48 x 183.5 cm) (120 x 77.48 x 155.5 cm) Media Lifter Weight 295 lbs (134 kg) 295 lbs (134 kg) Bottom Fork Clearance 4.33” (11 cm) 4.33” (11 cm)
