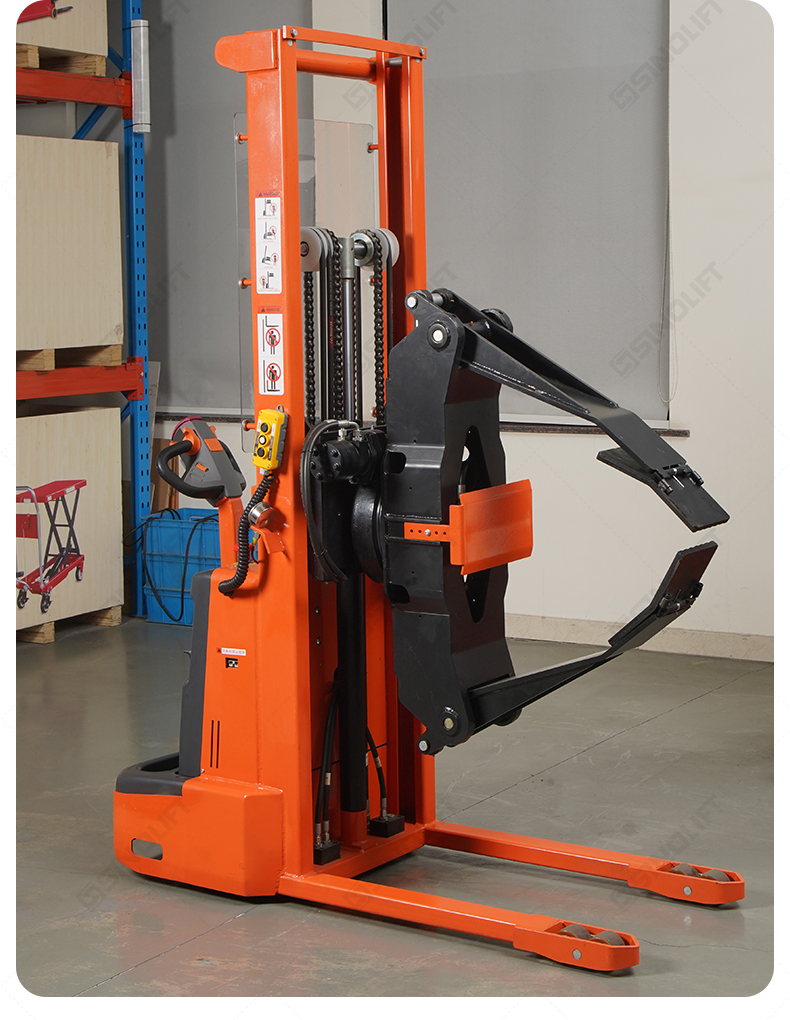

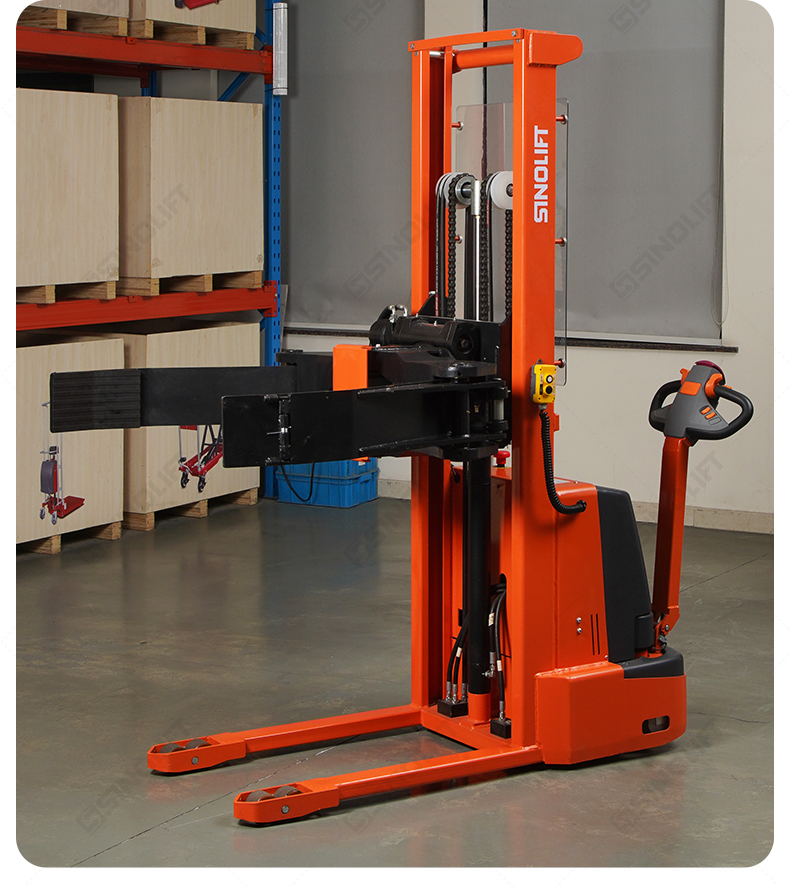

CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck
CDD500-R1200

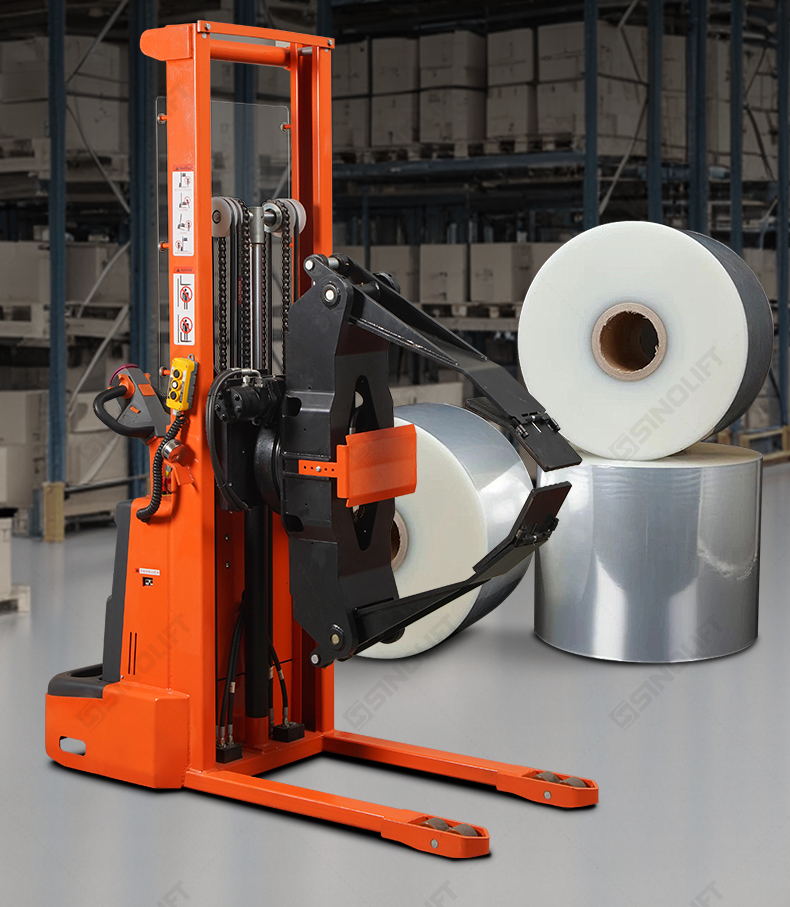

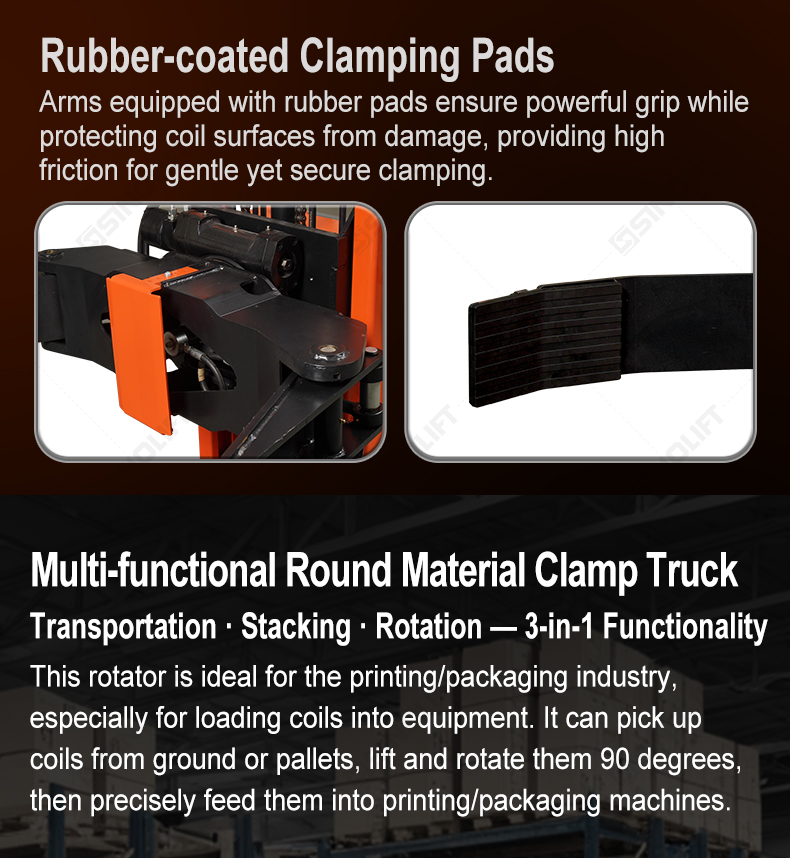

This electro-hydraulic coil rotator is specifically engineered for the printing and packaging industry. It enables safe, efficient handling of coils by picking them up from the ground or pallet, lifting and rotating them 90 degrees, and precisely feeding them into machinery.
Quantity:
Product Name
CDD500-R1200 Automatic Pressure-Adjusting Roll Clamp Truck
Product Description
ThisAutomatic Pressure-Adjusting Roll Clamp Truck is specifically engineered for the printing and packaging industry. It enables safe, efficient handling of coils by picking them up from the ground or pallet, lifting and rotating them 90 degrees, and precisely feeding them into machinery. Its smart design includes automatic pressure adjustment, customizable rotation angles, and intuitive wireless control for enhanced productivity and operational safety. Fully customizable to match your specific coil types and process requirements.
Feature Highlights
- Application-Specific Design: Ideal for coil feeding in printing and packaging operations.
- Multi-Functional Handling: Picks up coils from ground or pallets, lifts, rotates 90°, and feeds them into equipment.
- Electro-Hydraulic System: Electric lifting, clamping, and rotation for high efficiency.

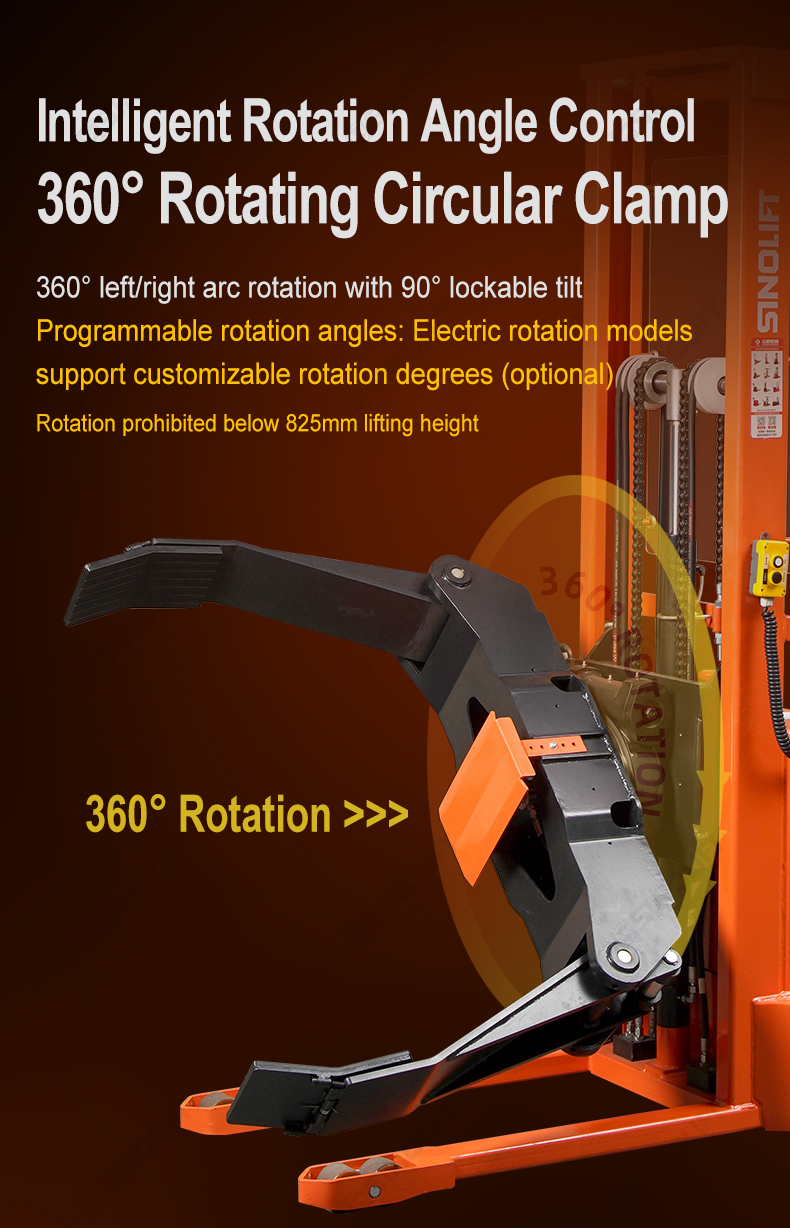

- Customizable Rotation: Programmable rotation angles available (optional feature).

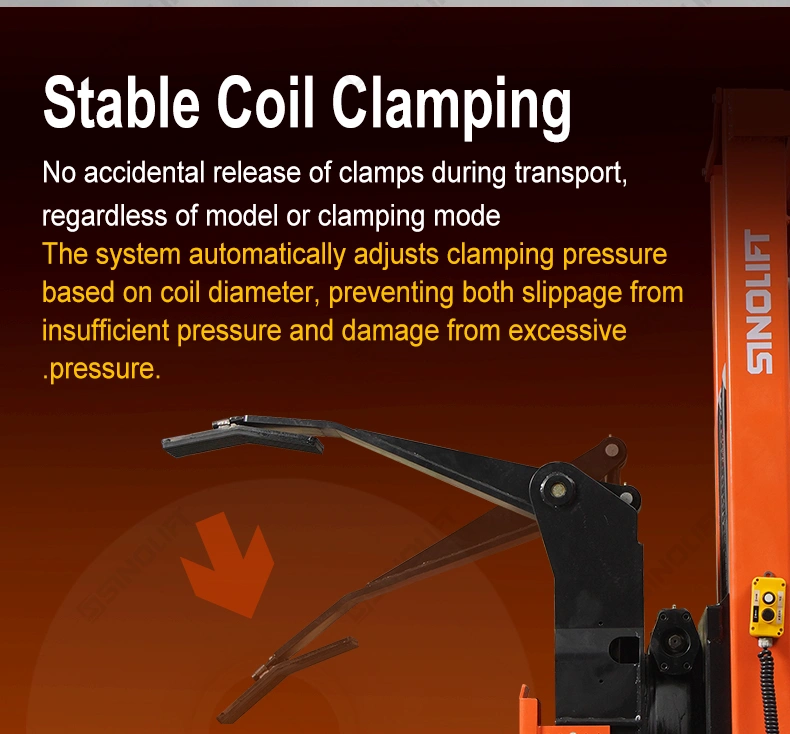

- Automatic Pressure Control: Adjusts clamping force based on coil diameter to avoid slippage or damage.

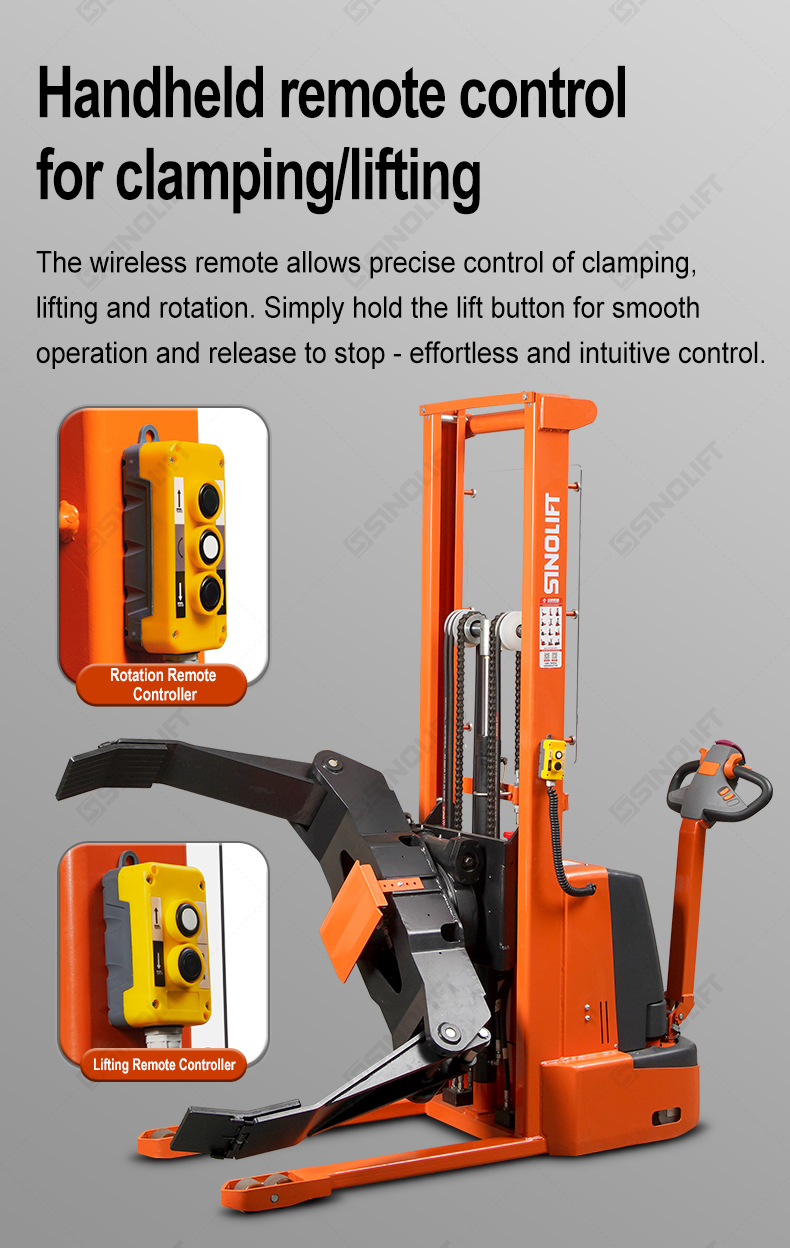

- Wireless Remote Control: Easy and precise operation of lift, clamp, and rotation functions.

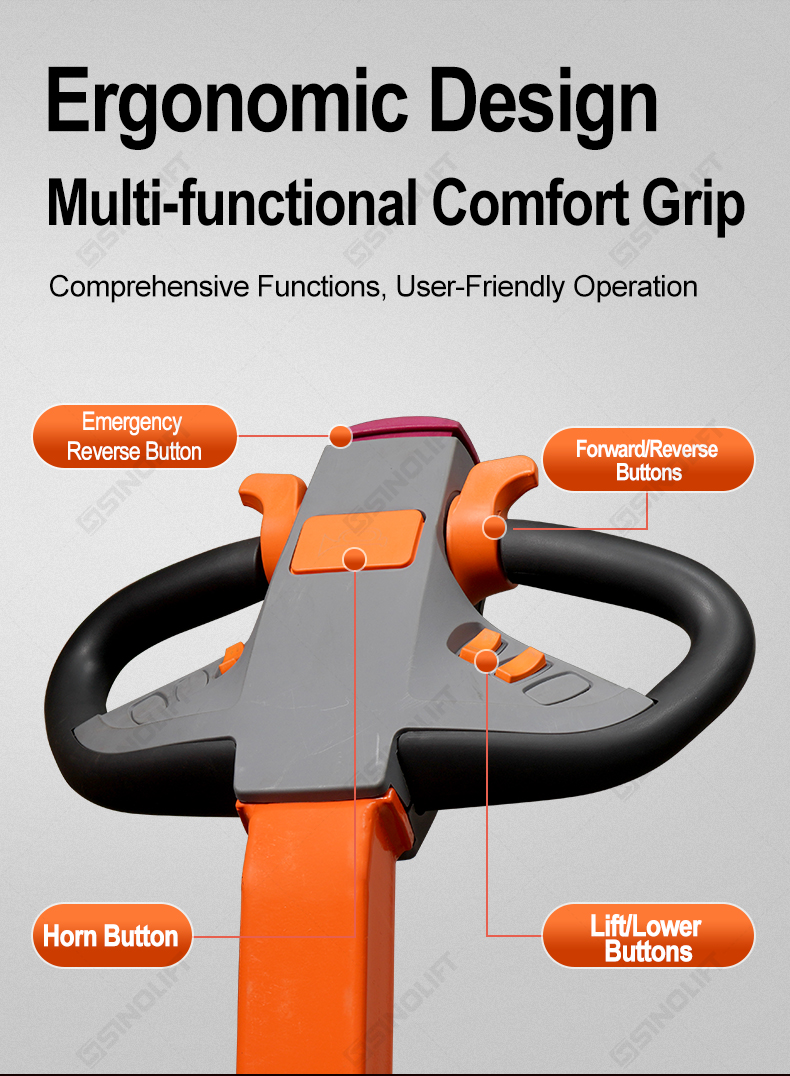

- Effortless Operation: Hold-to-move, release-to-stop functionality for smooth handling.

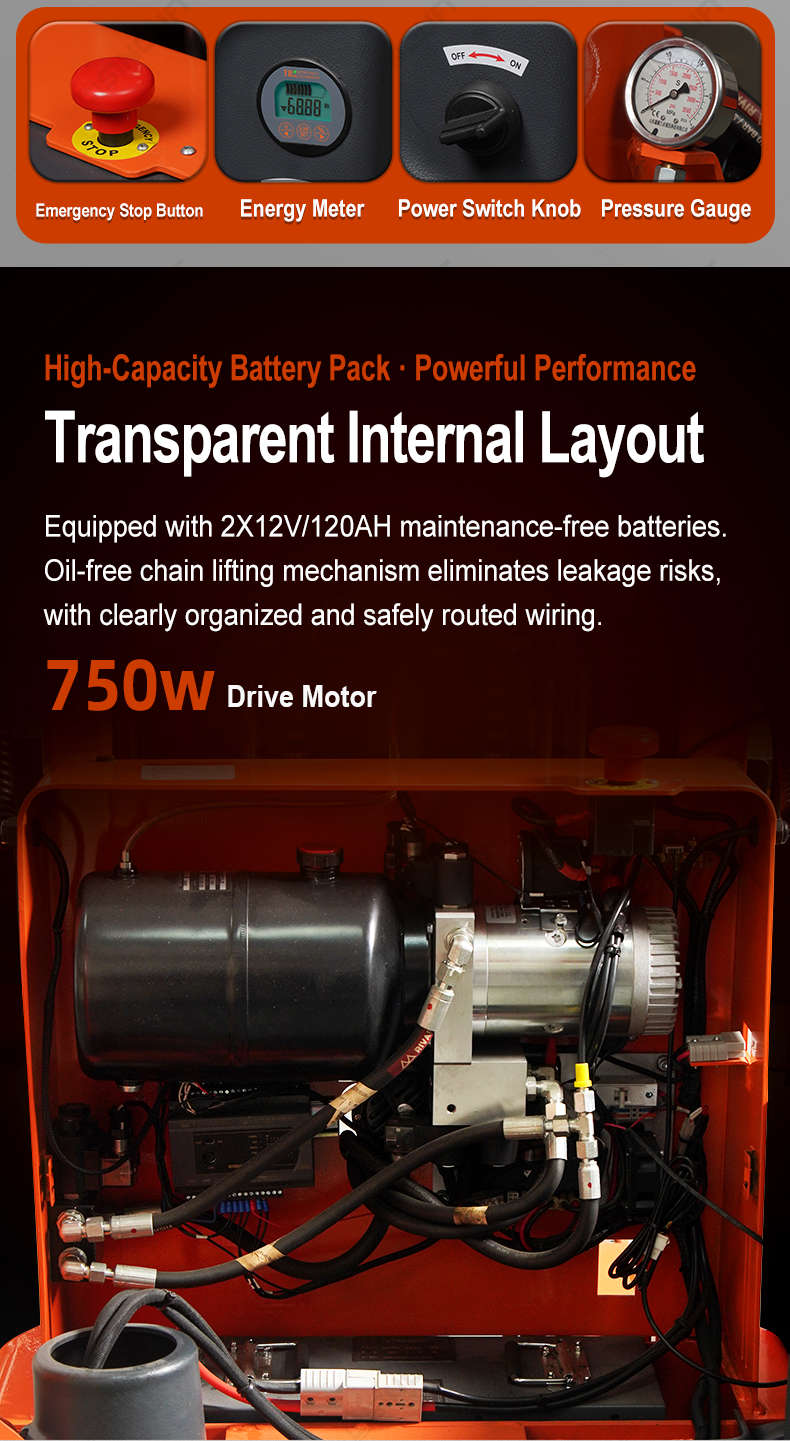

- Reliable Power System: Dual 12V/120AH maintenance-free batteries for extended use.

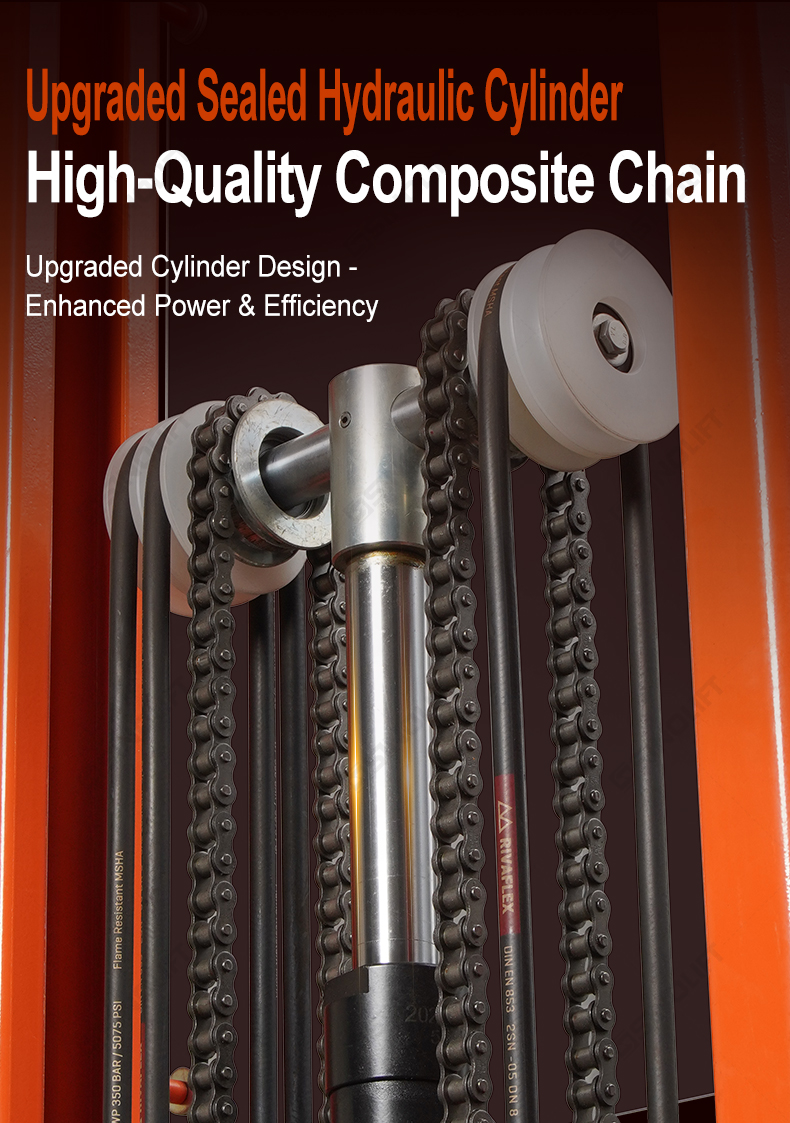

- Oil-Free Lifting: Chain lifting system eliminates oil leakage risks.
- Organized Wiring: Neatly routed cables for safety and durability.

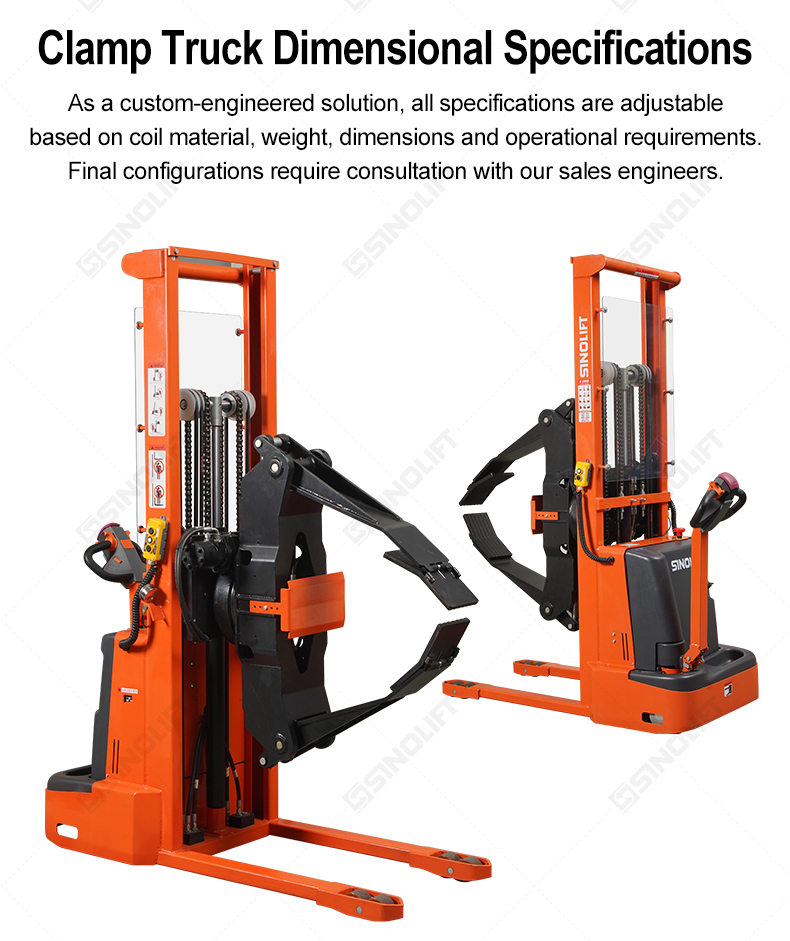

- Customizable Specs: Fully adjustable based on coil material, size, weight, and operational needs (sales consultation required).

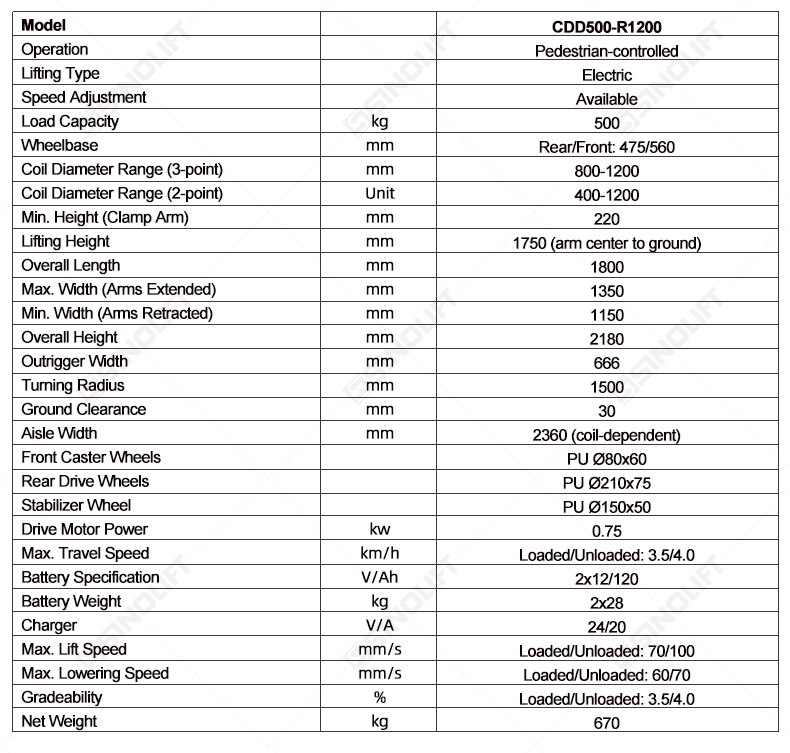

Product Specifications
| Parameter | Unit | Value/Description |
| Model | CDD500-R1200 | |
| Operation | Pedestrian-controlled | |
| Lifting Type | Electric | |
| Speed Adjustment | Available | |
| Load Capacity | kg | 500 |
| Wheelbase | mm | Rear/Front: 475/560 |

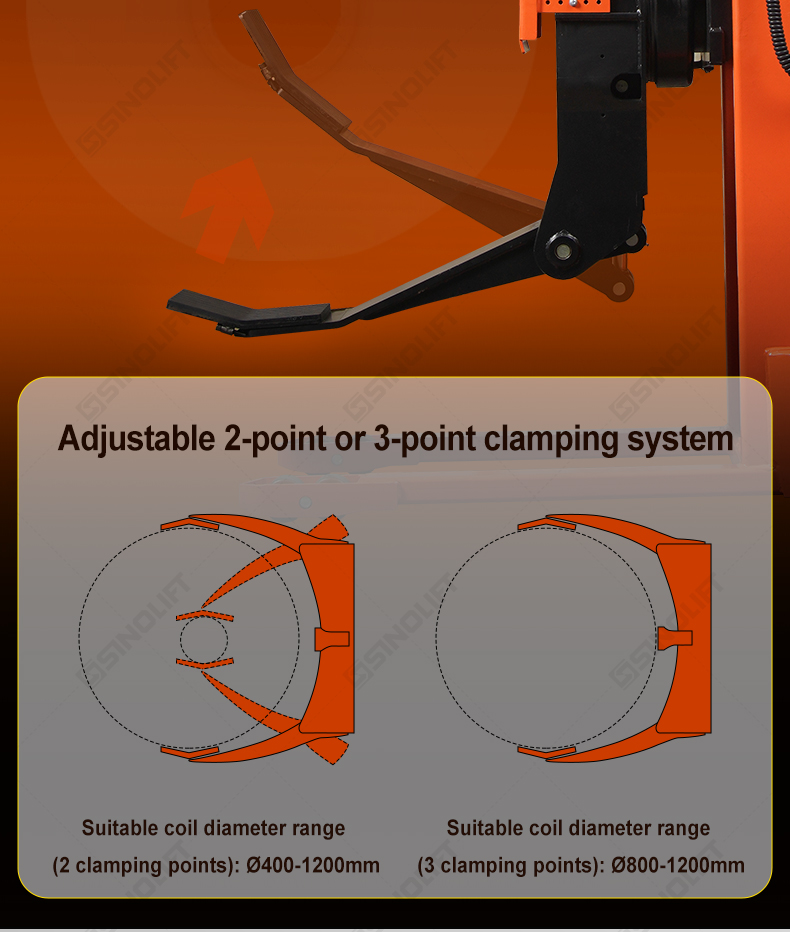

| Coil Diameter Range (3-point) | mm | 800-1200 |
| Coil Diameter Range (2-point) | mm | 400-1200 |
| Min. Height (Clamp Arm) | mm | 220 |

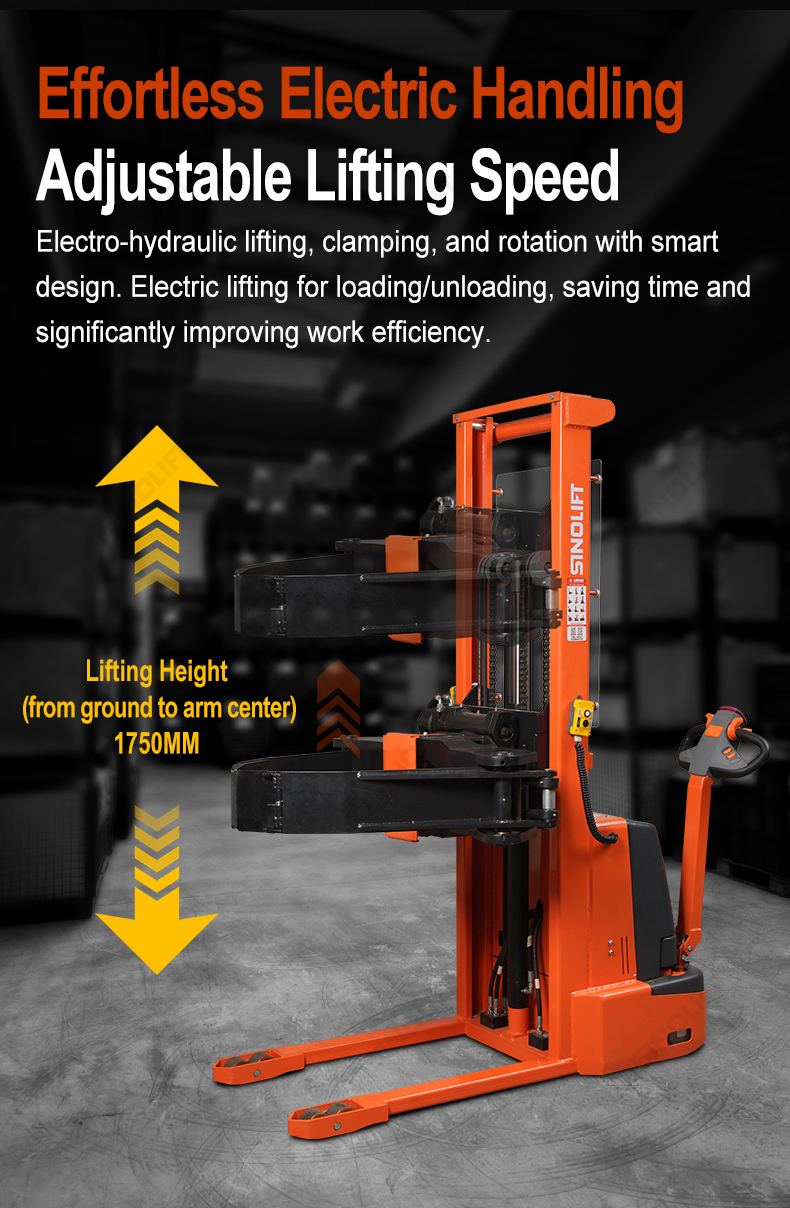

| Lifting Height | mm | 1750 (arm center to ground) |
| Overall Length | mm | 1800 |
| Max. Width (Arms Extended) | mm | 1350 |
| Min. Width (Arms Retracted) | mm | 1150 |
| Overall Height | mm | 2180 |
| Outrigger Width | mm | 666 |
| Turning Radius | mm | 1500 |
| Ground Clearance | mm | 30 |
| Aisle Width | mm | 2360 (coil-dependent) |
| Front Caster Wheels | PU Ø80x60 | |
| Rear Drive Wheels | PU Ø210x75 | |
| Stabilizer Wheel | PU Ø150x50 | |
| Drive Motor Power | kW | 0.75 |
| Max. Travel Speed | km/h | Loaded/Unloaded: 3.5/4.0 |
| Battery Specification | V/Ah | 2x12/120 |
| Battery Weight | kg | 2x28 |
| Charger | V/A | 24/20 |
| Max. Lift Speed | mm/s | Loaded/Unloaded: 70/100 |
| Max. Lowering Speed | mm/s | Loaded/Unloaded: 60/70 |
| Gradeability | % | Loaded/Unloaded: 3.5/4.0 |
| Net Weight | kg | 670 |
