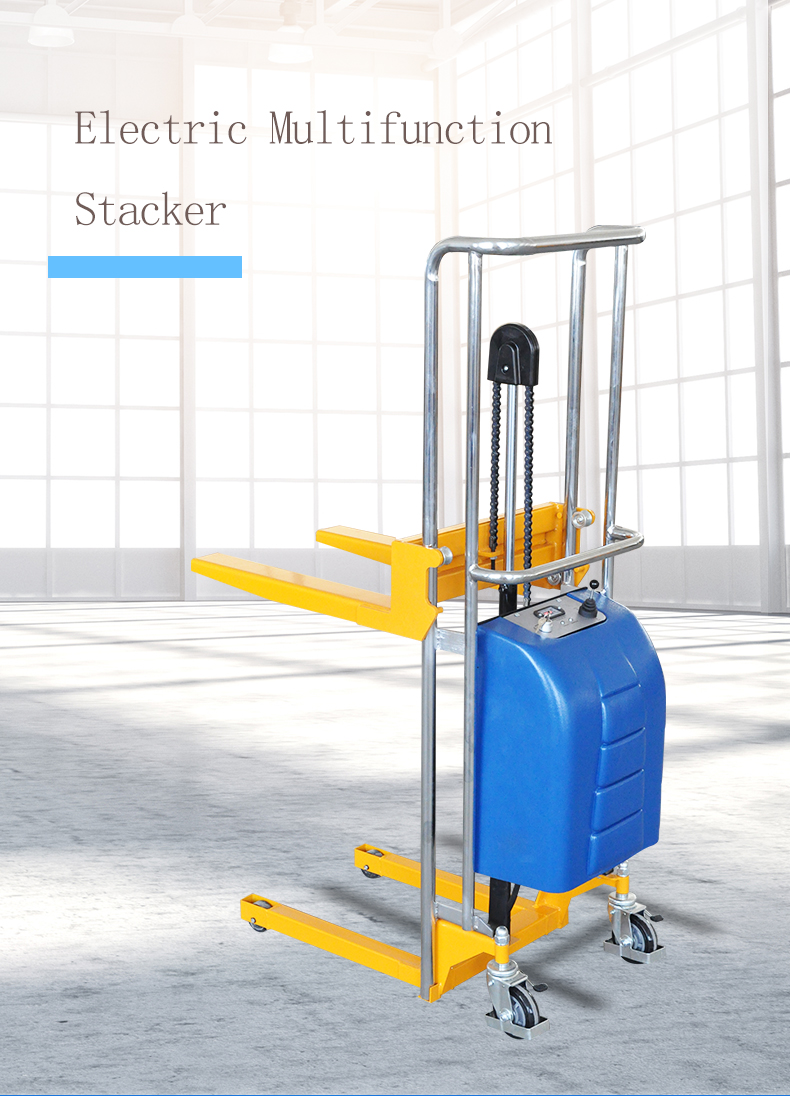

EF EJ Electric Mini Pallet Stacker
EF EJ
The EF EJ Electric Mini Pallet Stacker is ideal for tight spaces like warehouses and shops, featuring low-profile forks, an Italian hydraulic motor, and no-marking castors for smooth, floor-friendly operation. With a maintenance-free battery and optional platform, it ensures hassle-free lifting while complying with EN1757 safety standards. Customizable designs are available to meet specific handling needs.
Quantity:
EF EJ Electric Mini Pallet Stacker
1. Low profile forks can lift the pallet easily.
2. Easier and faster lifting operation.
3. High quality hydraulic motor made in Italy.
4. Service free battery.
5. Option platform available.
6. No-marking castor as standard.
7. Bespoke design can meet various technique requirements.
8. Conforms to EN1757.
| Model (Fixed Fork) | Pallet Stacker EF2085A | Pallet Stacker EF2120A | Pallet Stacker EF4085A | Pallet Stacker EF4120A | Pallet Stacker EF4150A | |
| Model (Adjustable Fork) | EJ2085A | EJ2120A | EJ4085A | EJ4120A | EJ4150A | |
| Capacity | (kg) | 200 | 400 | |||
| Max.Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Min.Fork Height | (mm) | 80 | 80 | |||
| Fork Length | (mm) | 600 | 650 | |||
| Fixed Fork Width | EF series (mm) | 500 | 550 | |||
| Adjustable Fork Width | EJ series (mm) | 215-500 | 235-500 | |||
| Single Fork Width | (mm) | 100 | 110 | |||
| Load Roller | (mm) | Ф75 | Ф75 | |||
| Steering Wheel | (mm) | Ф125 | Ф125 | |||
| Chassis Height | (mm) | 32.5 | 22.5 | |||
| Power Unit | (KW) | 0.8 | 0.8 | |||
| Battery | (Ah/V) | Dec-60 | Dec-70 | |||
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| Overall Width | (mm) | 560 | 590 | |||
| Overall Length | (mm) | 1020 | 1100 | |||
| Net Weight | EF series (kg) | 90 | 97 | 105 | 116 | 122 |
| EJ series (kg) | 93 | 100 | 110 | 121 | 127 | |
| Option Platform | LP10(610x530) | LP20(660x580) | ||||
