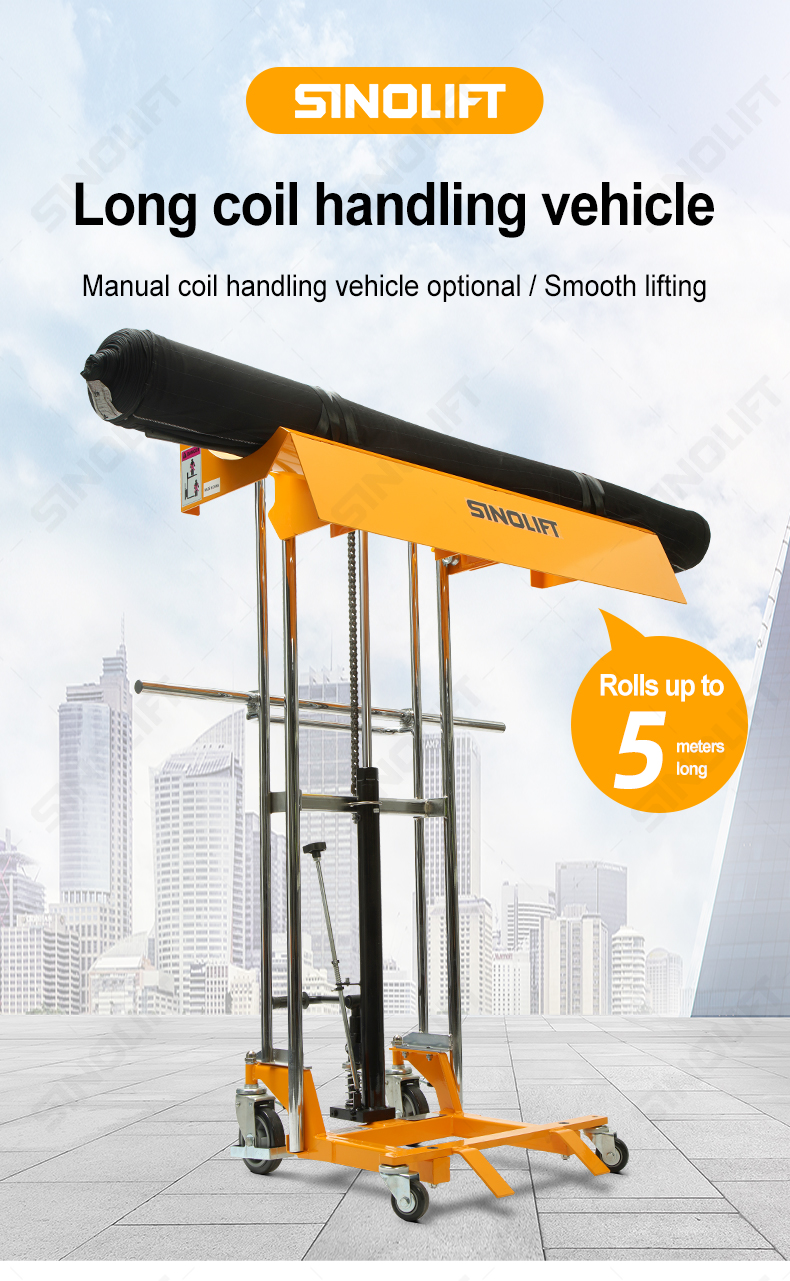

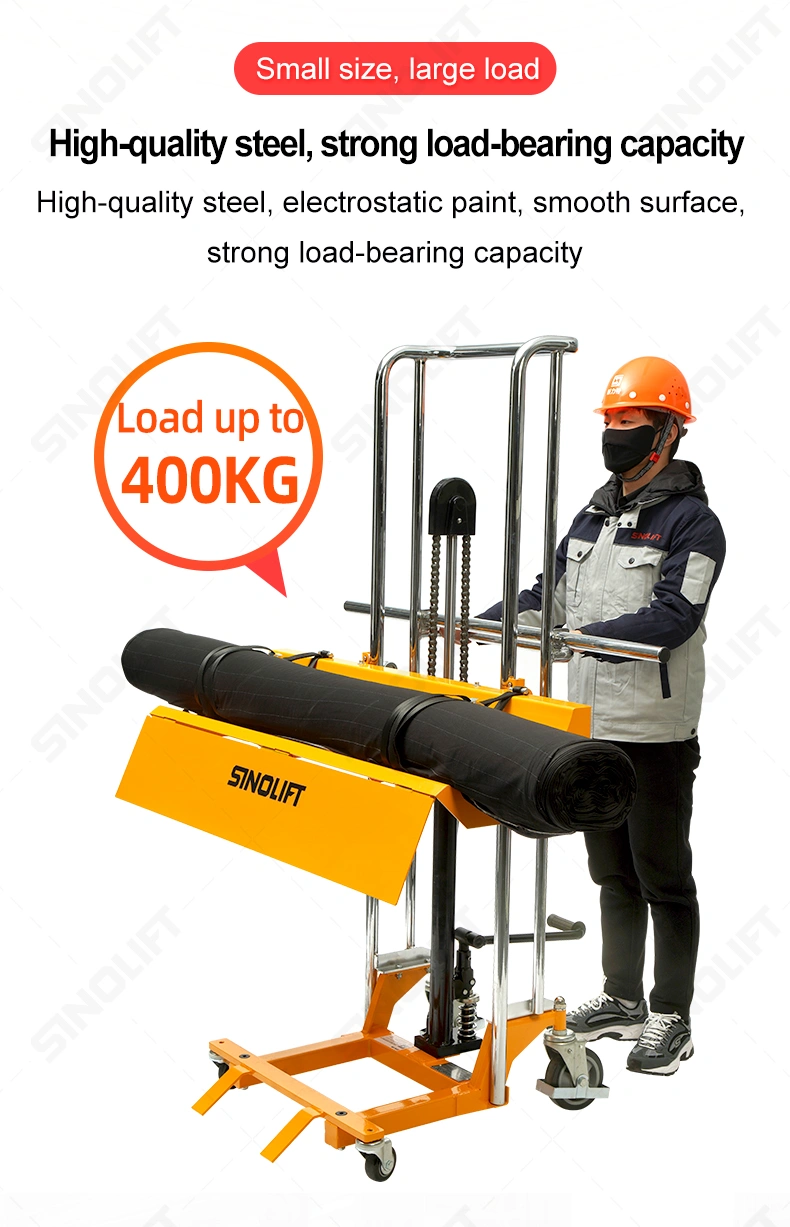

SINOLIFT PFR3050L PFR4025 PFR4050 Roll & Reel Hydraulic Stacker
PFR
Quantity:

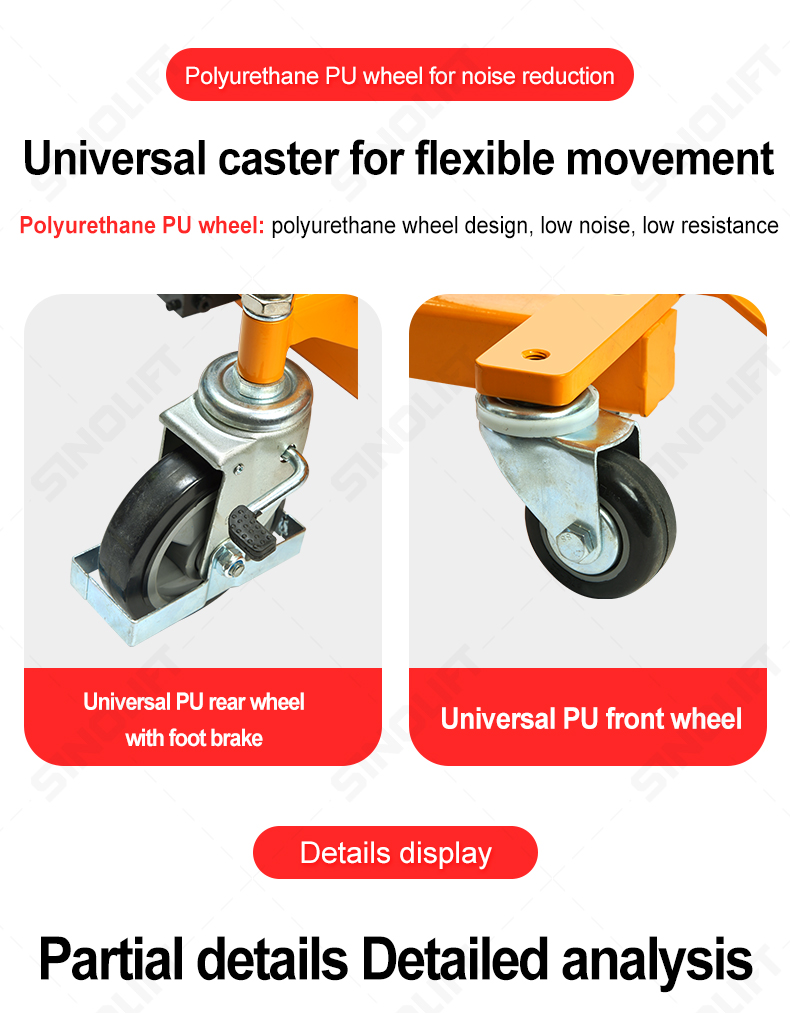

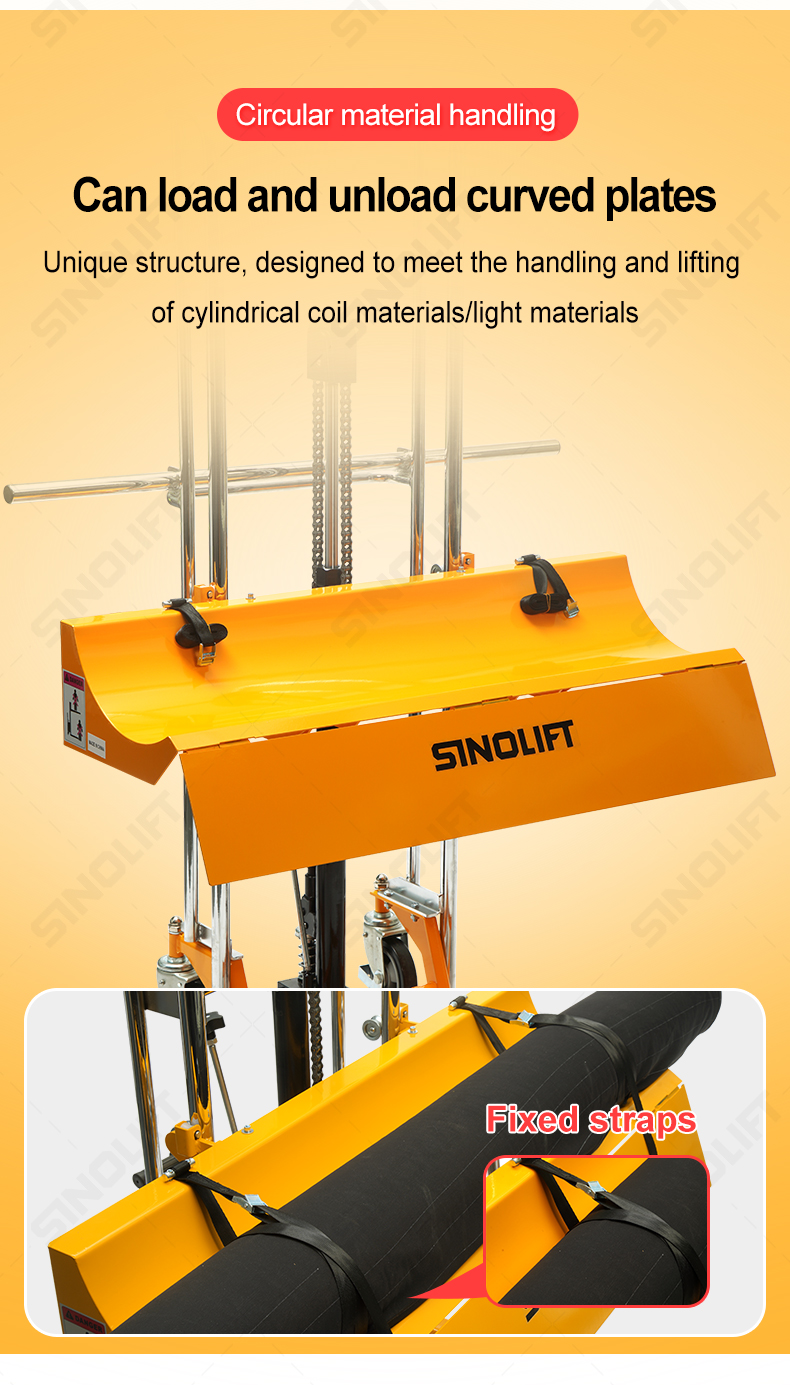

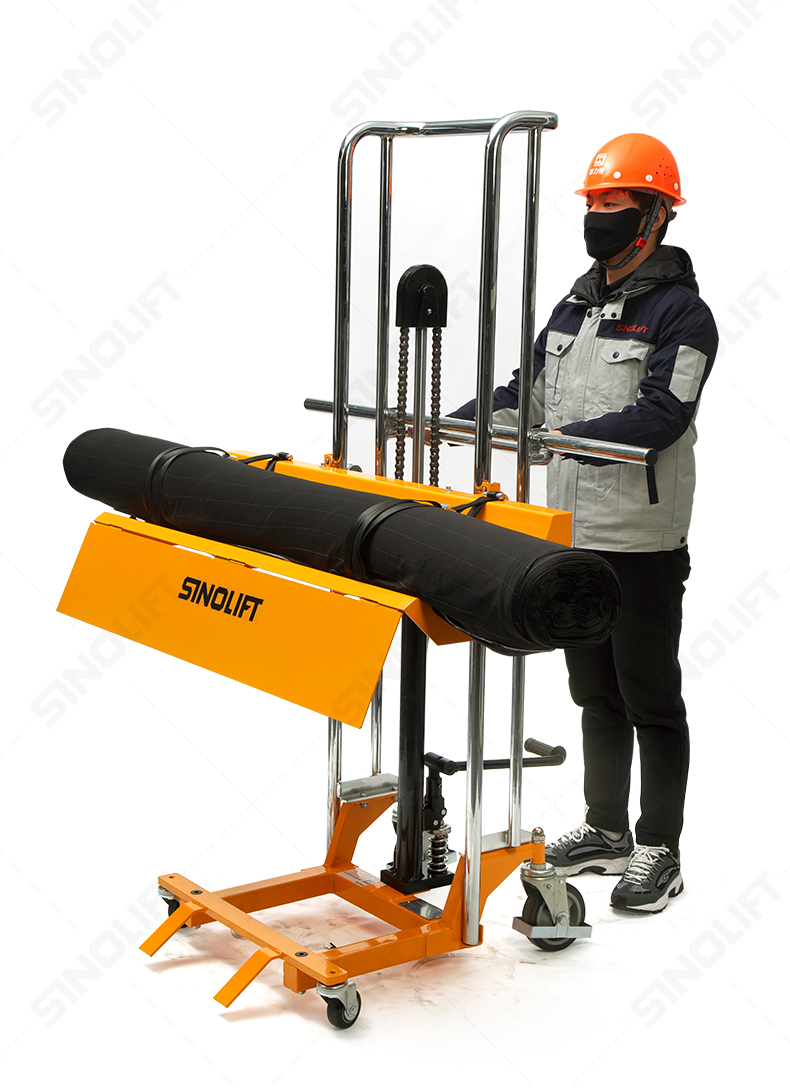

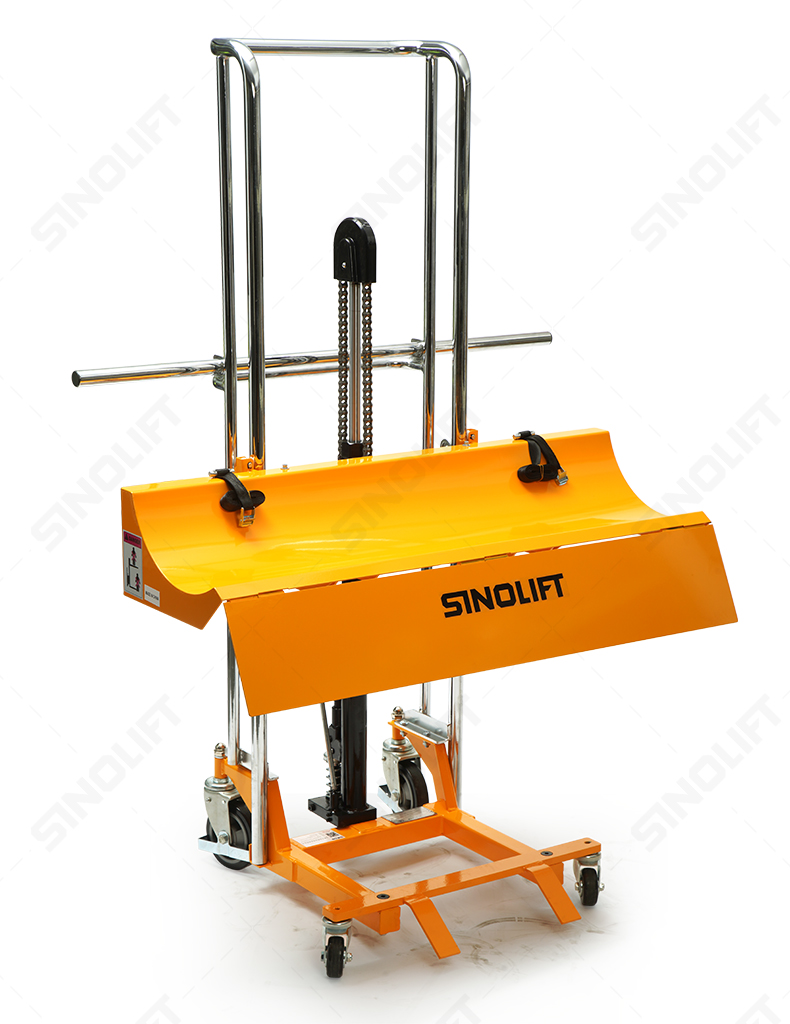

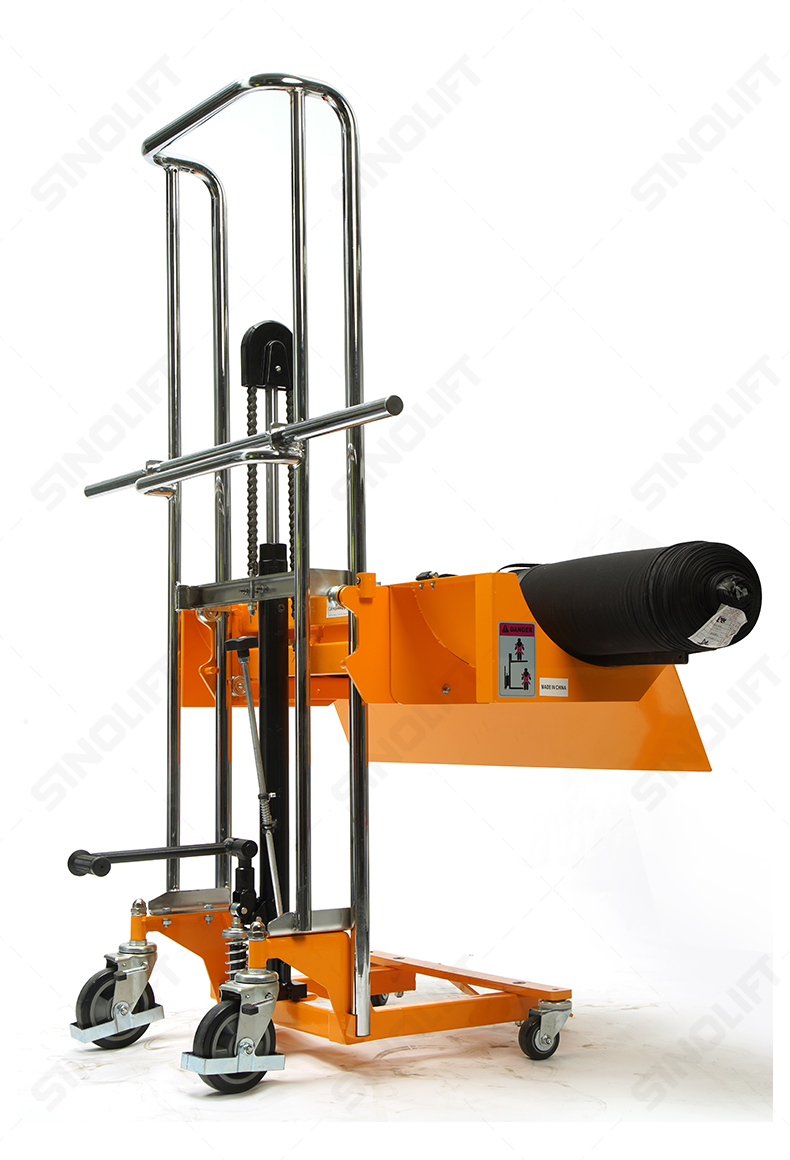

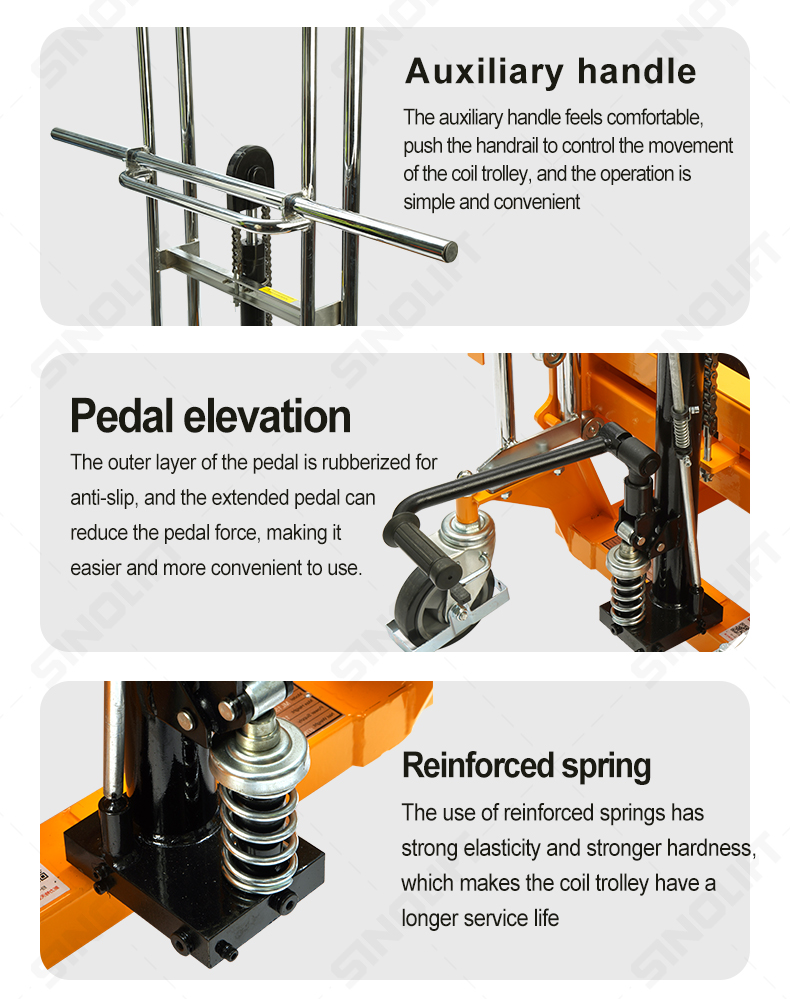

Roll Lifter and Transporters allow single users to maneuver heavy duty rolls onto the lifter and then directly onto the printer feeder. Extended nylon strap provides leverage to help guide the roll into the trough and ensure materials are secured for transport. Concave trough design of the media tray stabilizes rolls for transit. Foot pump allows for smooth and effortless lifting. Heavy duty swivel casters in both front and rear allow the user to maneuver through standard doors and narrow passages.
| Model number | PFR3050L | PFR4025 | PFR4050 | |
| Export code | 61574 | 61584 | 61586 | |
| Rated deadweight | kg | 300 | 400 | 400 |
| Load center | mm | 350 | 350 | 350 |
| Minimum height | mm | 83 | 108 | 108 |
| Lifting height | mm | 850 | 850 | 850 |
| Maximum diameter of drum | mm | 400 | 400 | 400 |
| Maximum length of drum | m | 5 | 2.5 | 5 |
| Carriage size (L x W) | mm | 1116x855 | 800x800 | 1200x800 |
| Vehicle dimensions (L x W x H) | mm | 918x1116x1200 | 808x800x1196 | 808x800x1196 |
| Front wheel specification (PU wheel) | mm | Φ75 | Φ75 | Φ75 |
| Rear wheel specification (PU wheel) | mm | Φ125X40 | Φ125X40 | Φ125X40 |
| Minimum pallet height | 88 | 100 | 100 | |
| Net weight | kg | 90 | 80 | 85 |
