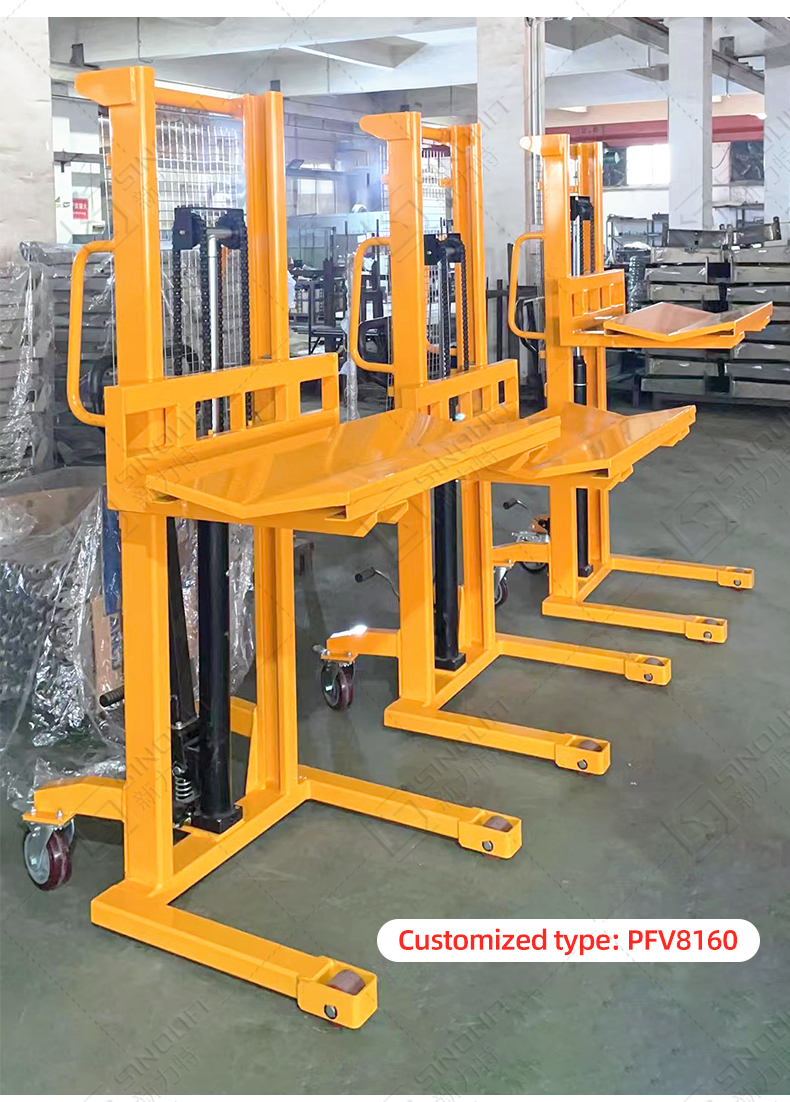

PFV6120 PFV6150 Roll and Reel Hydraulic Stacker
PFV6120 PFV6150
Widely used with low leg and various accessories as option.
Quantity:

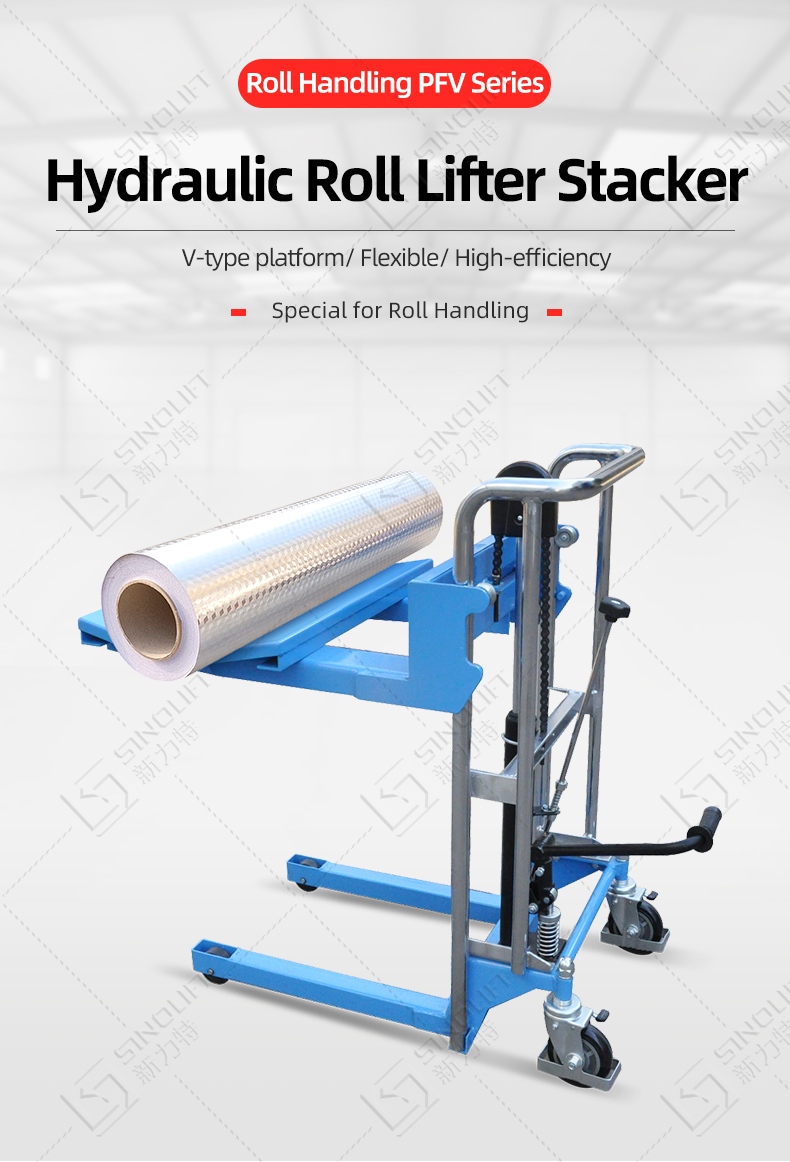

Roll Hydraulic Stacker
- Robust construction.

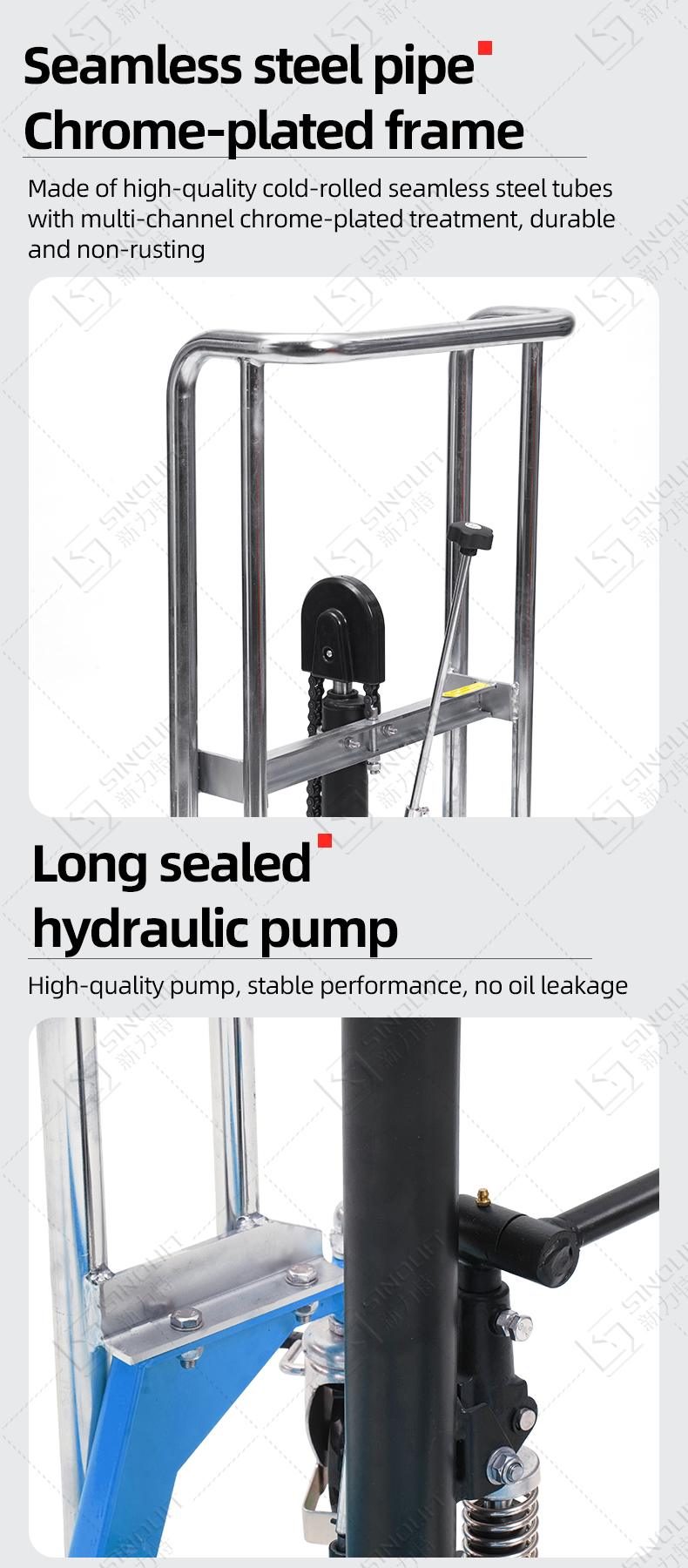

- Hard chromium plated frame.
- Effortless Movement.

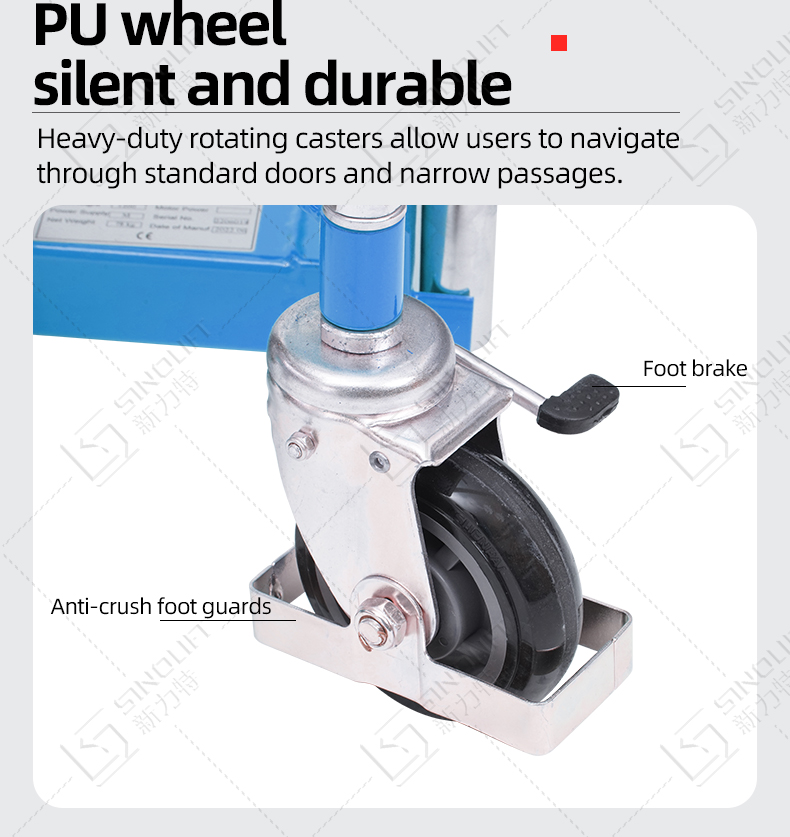

- Polyurethane rollers with bearing
- No-marking castor as standard.

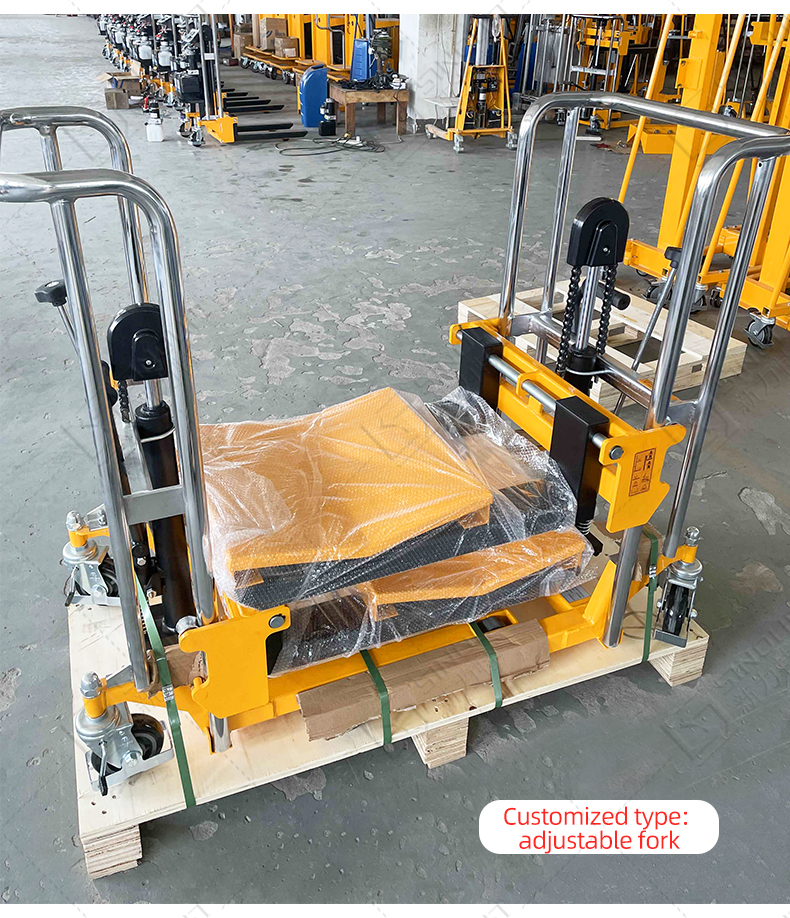

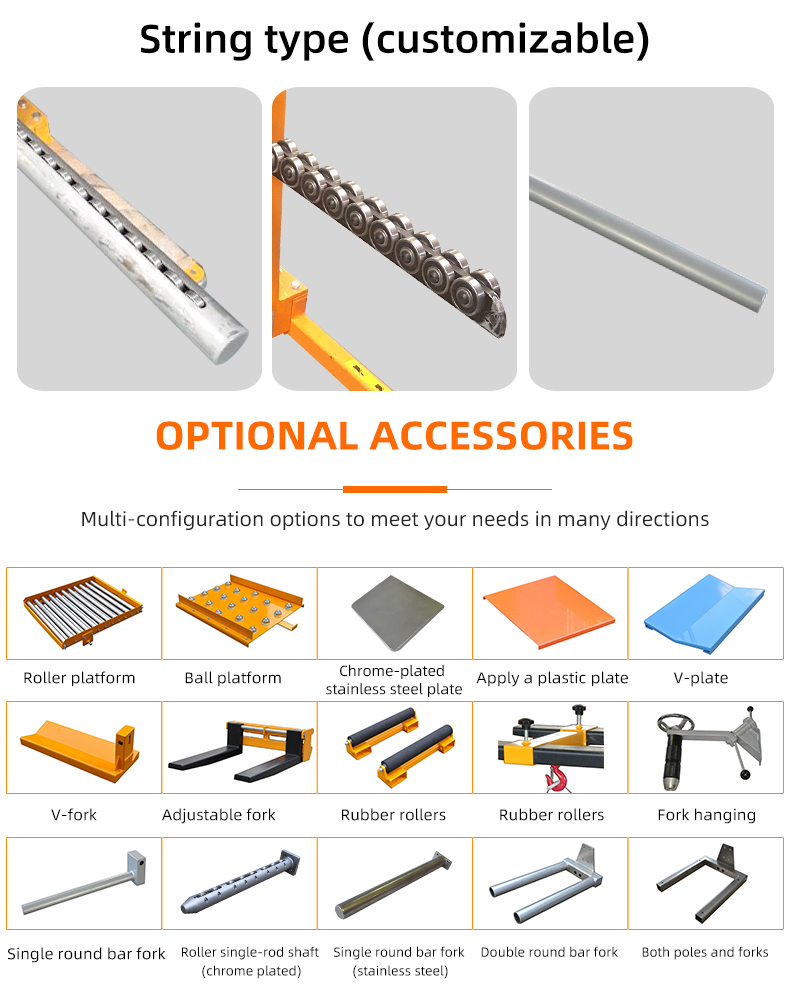

- Widely used with low leg and various accessories as option.

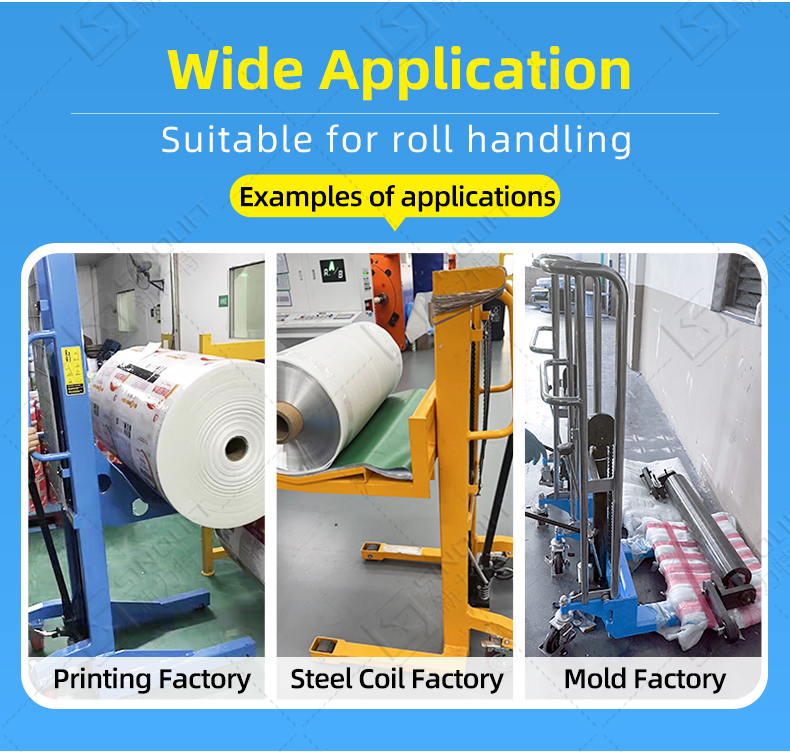

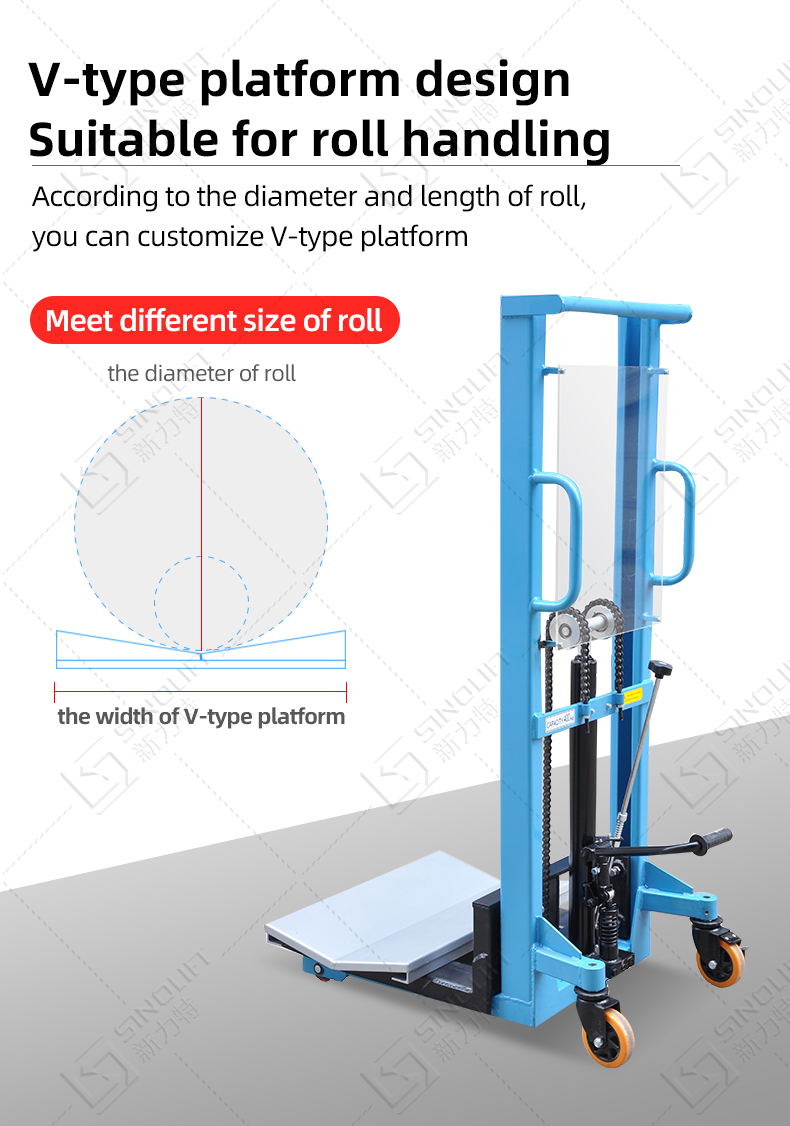

- The V-Shaped plate is suitable for printing work, flexible package industry.

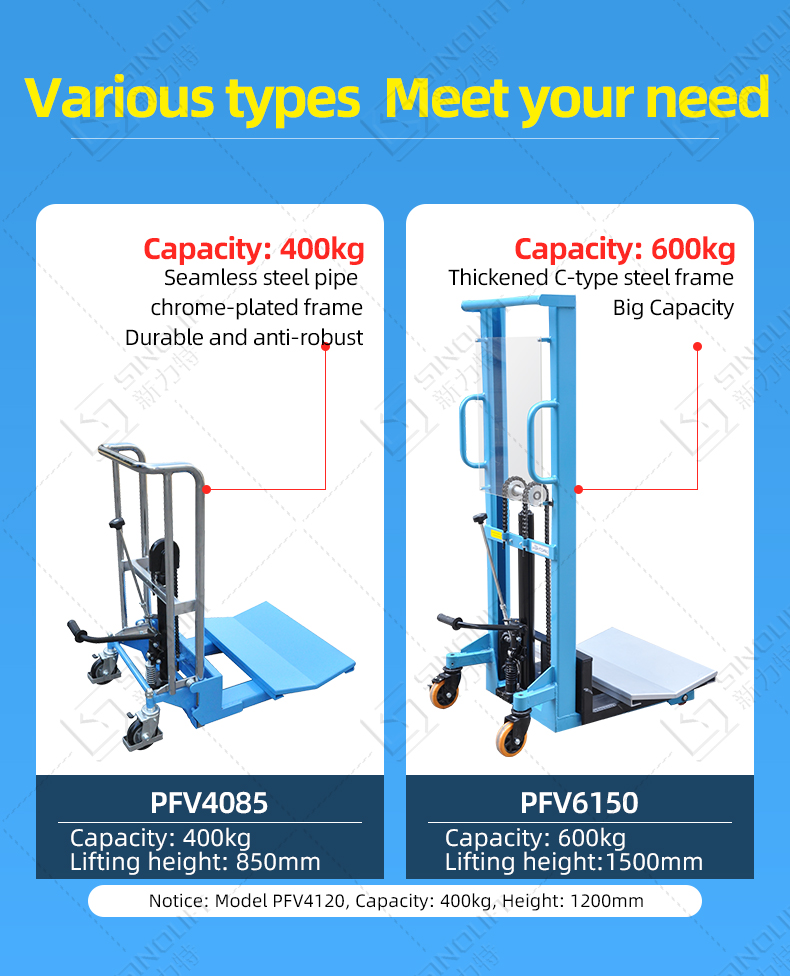

| Model | Roll Hydraulic Stacker PFV6120 | Roll Hydraulic Stacker PFV6150 | |
| Capacity | kg | 600 | 600 |
| Max.Platform Height | mm | 1200 | 1500 |
| Overall Height | mm | 1500 | 1800 |
| Overall Length | mm | 1500 | 1500 |
| Overall Width | mm | 760 | 760 |
| Min.Platform Height | mm | 185 | 185 |
| V-type Platform Size | mm | 700*460 | 700*460 |
| Load Roller | mm | 80 | 80 |
| Steering Wheel | mm | 150 | 150 |
| Net Weight | kg | 115 | 125 |
