PFV4085 PFV4120 PFV4150 PFV4180 Roll & Reel Hydraulic Stacker
PFV4085 PFV4120 PFV4150 PFV4180
Structure made of high resistance steel rolled section to ensure highest strength and durability.
Quantity:

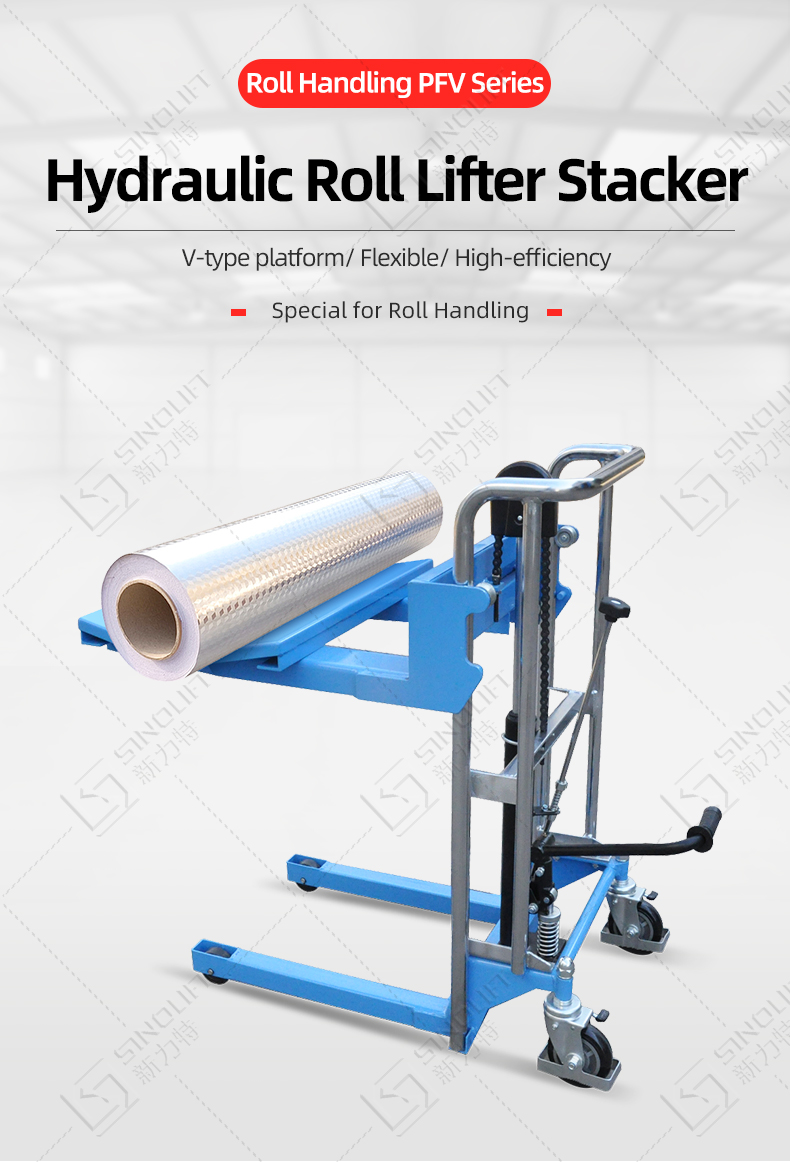

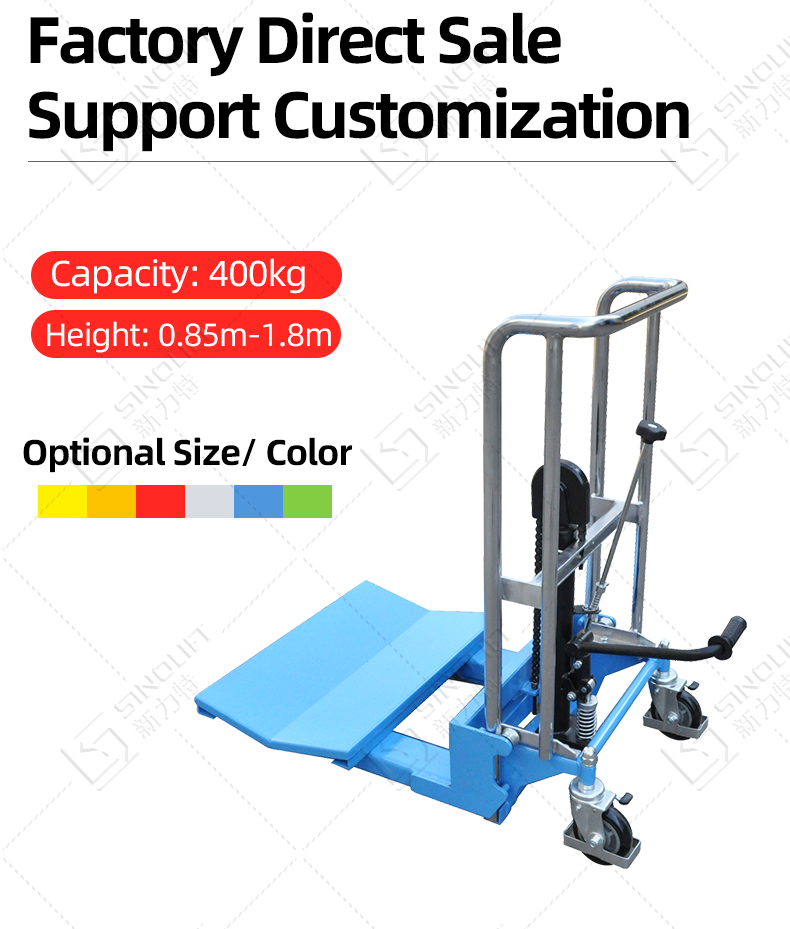

Name:Hydraulic Roll Lifter Stacker
Features of Hydraulic Roll Lifter Stacker:
▲ Structure made of high resistance steel rolled section to ensure highest strength and durability.
▲ Large media and heavy material rolls or reels are handled quickly and easily.

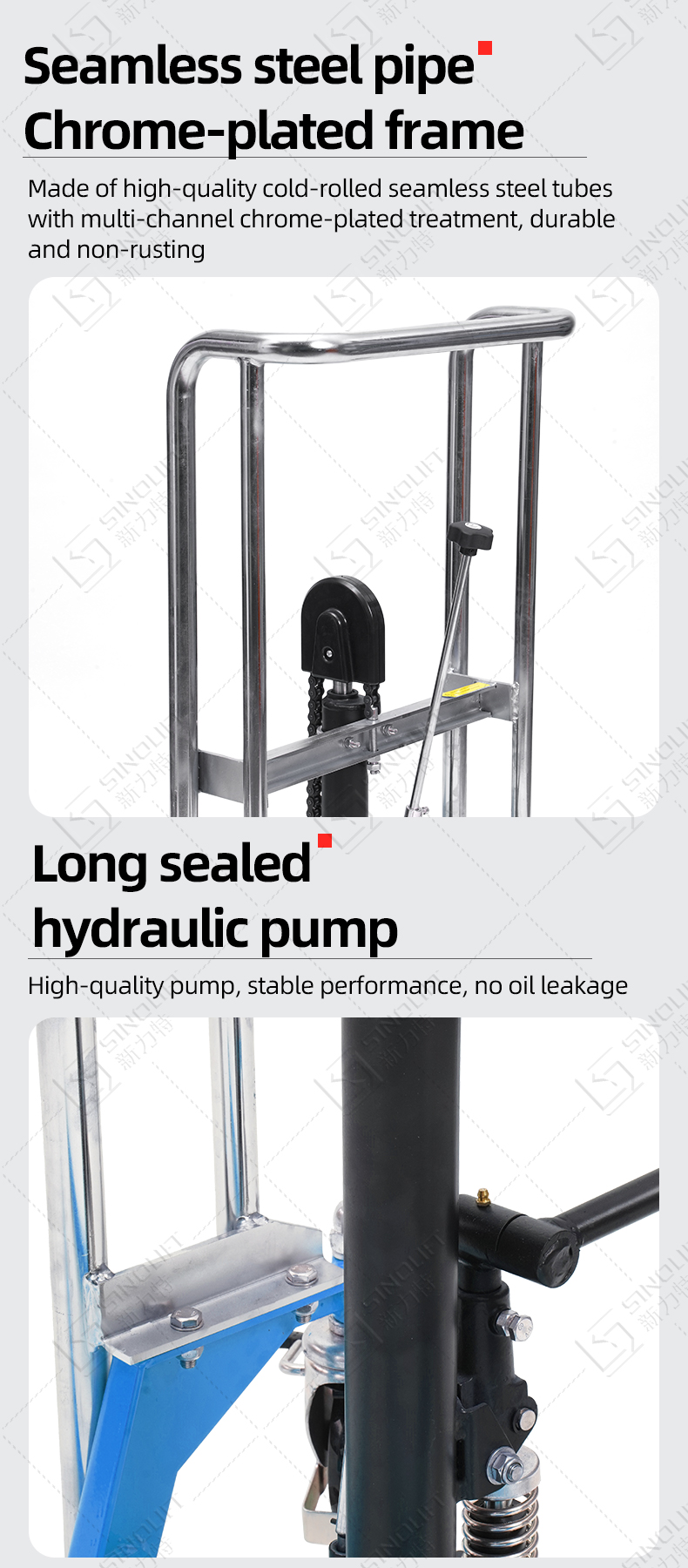

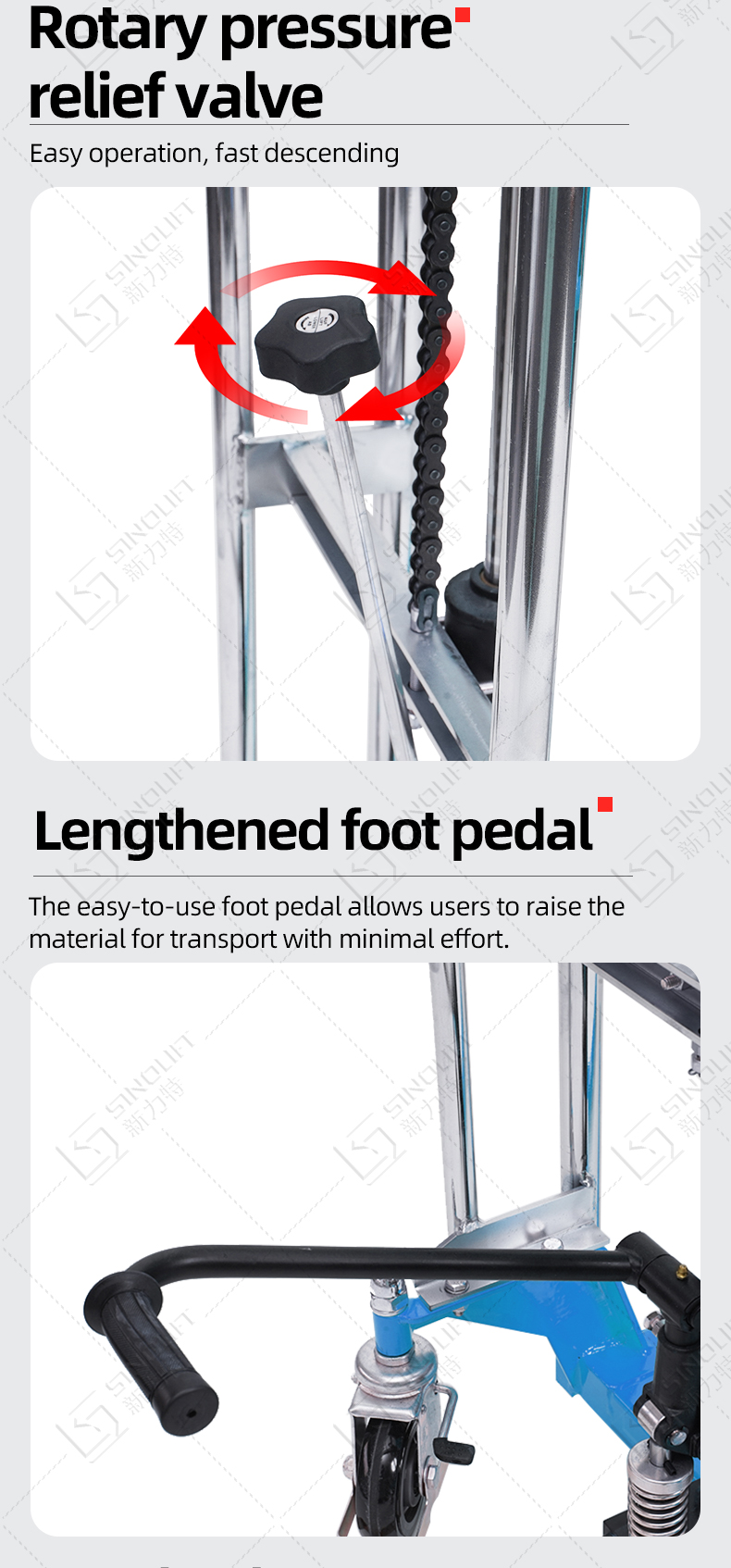

▲ The classic hydraulic hand pump provide lifting effortlessly.
▲ Both manual type and Electric type for options.

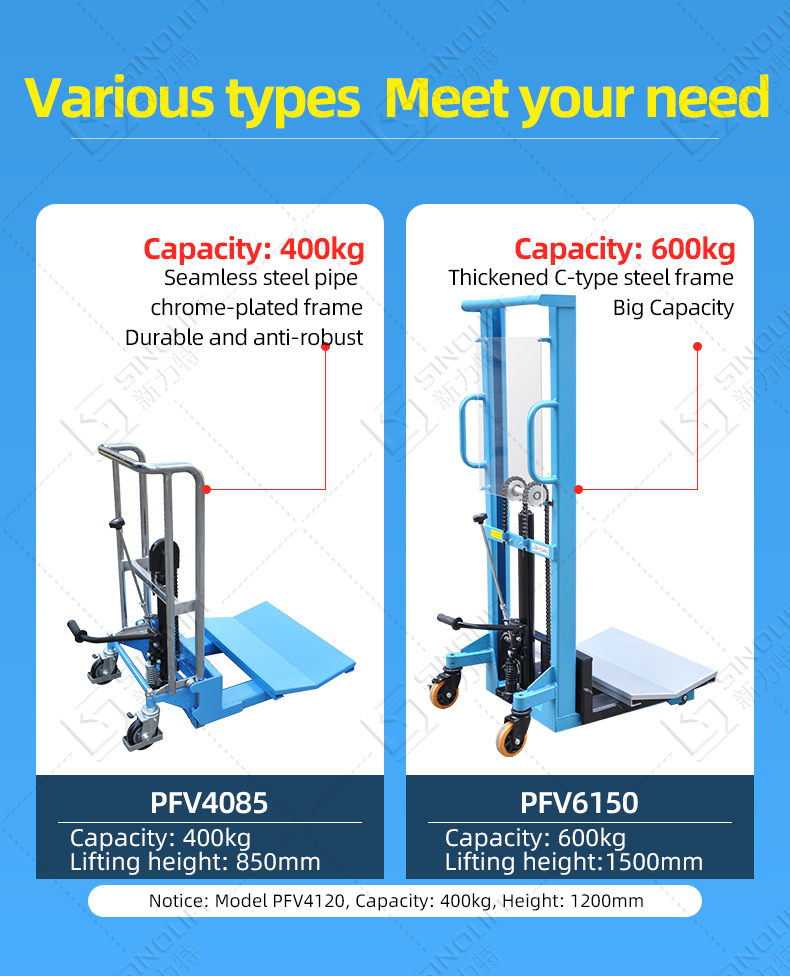

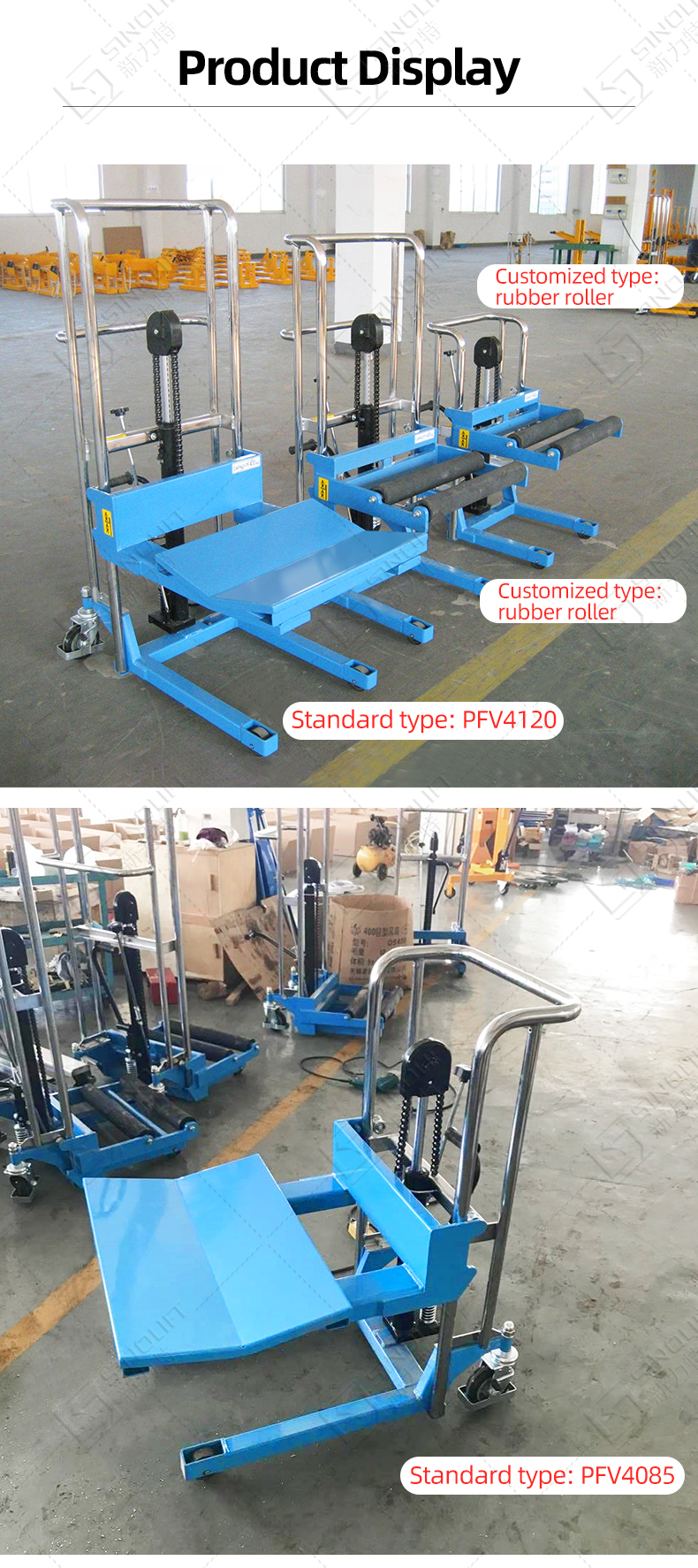

| Model (Adjustable Fork) | Hydraulic Roll Lifter PFV4085 | Hydraulic Roll Lifter PFV4120 | Hydraulic Roll Lifter PFV4150 | Hydraulic Roll Lifter PFV4180 | |
| Capacity | (kg) | 400 | 200-400 | ||
| Max.Platform Height | (mm) | 850 | 1200 | 1500 | 1800 |
| Min. Platform Height | (mm) | 85 | |||
| Load Roller | (mm) | 75 | |||
| Steering Wheel | (mm) | 125 | |||
| Pump Strokes to Max. Height | 35 | 50 | 63 | 76 | |
| Overall Height | (mm) | 1060 | 1410 | 1710 | 2010 |
| Overall Width | (mm) | 590 | |||
| Overall Length | (mm) | 1040 | |||
| Net Weight | (kg) | 66 | 71 | 75 | 82 |
