Smart Single Cantilever String Rod Loading Truck
Key Features of the Smart Single Cantilever Loading Truck：

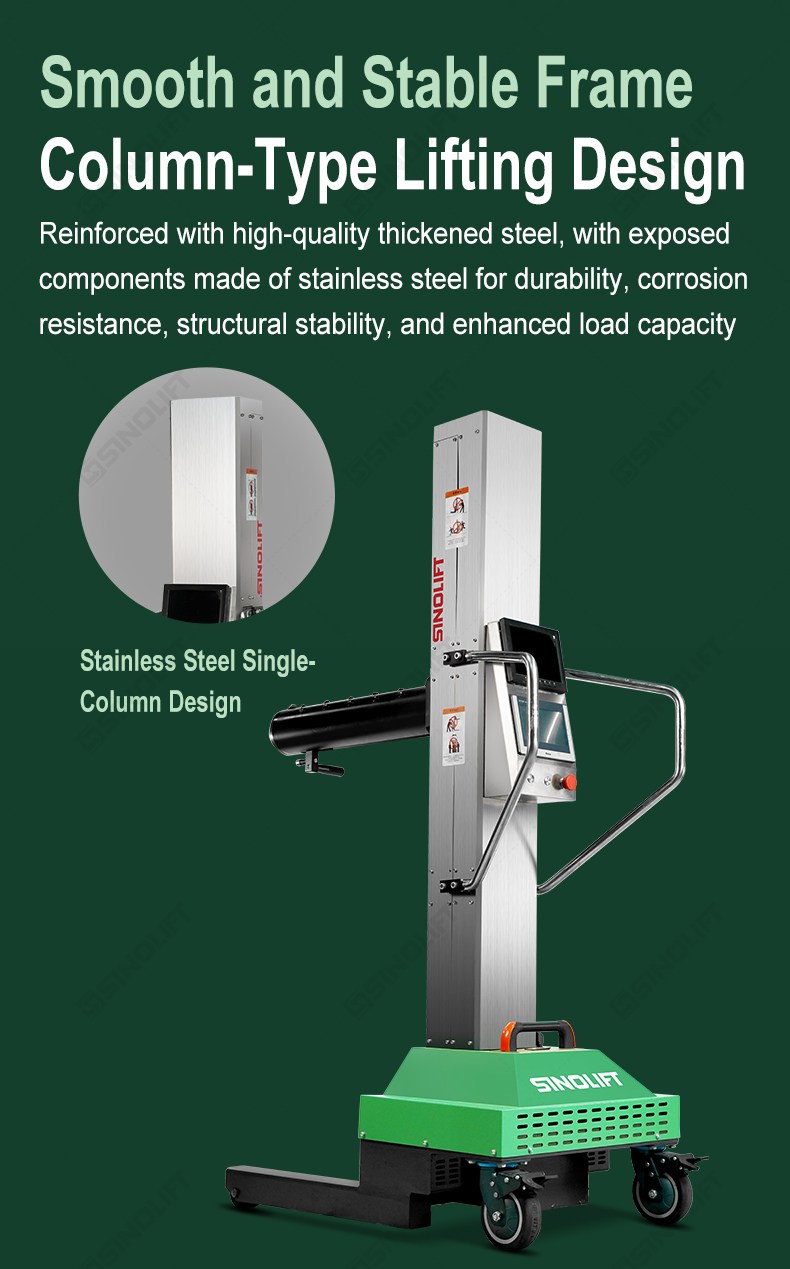

Industry-Specific Design: Specifically engineered for the lithium battery industry, it features a robust construction primarily from 304 stainless steel, ensuring excellent corrosion resistance, durability, and suitability for demanding environments.

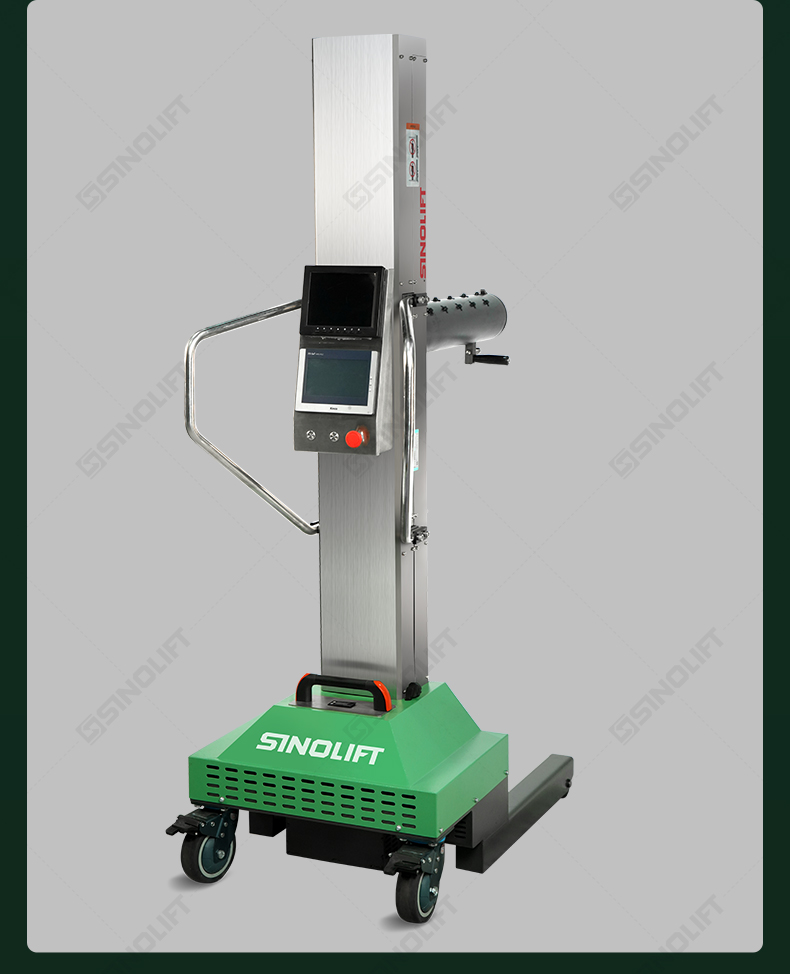

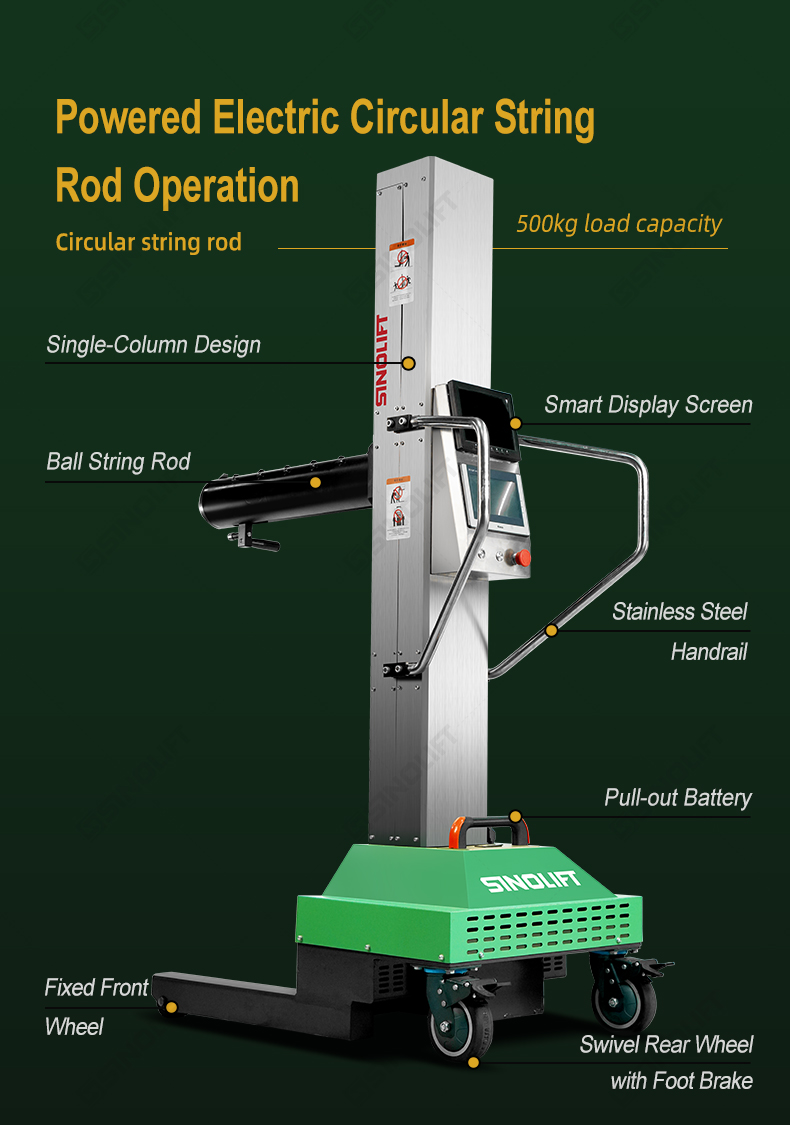

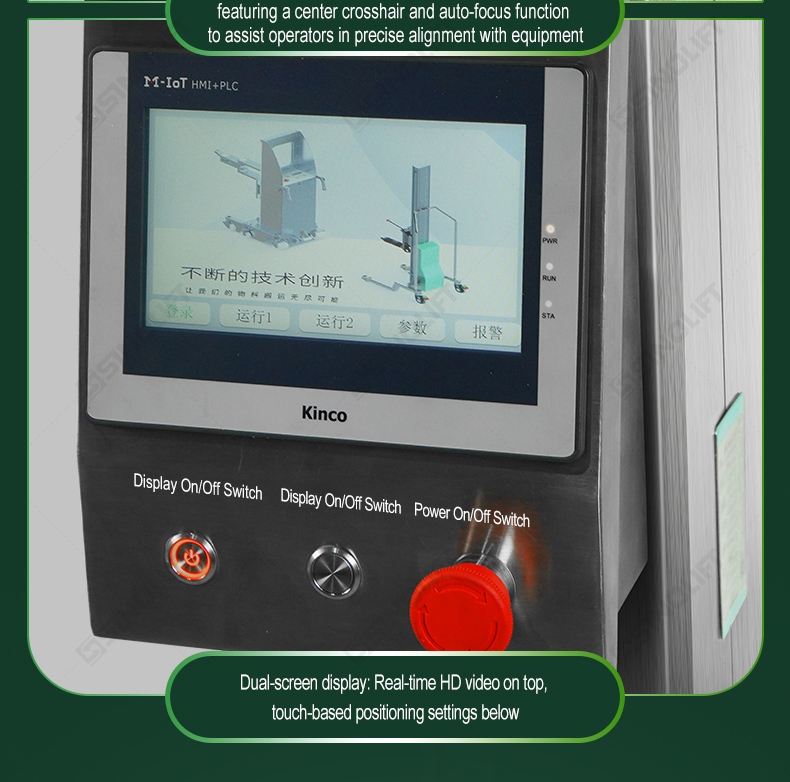

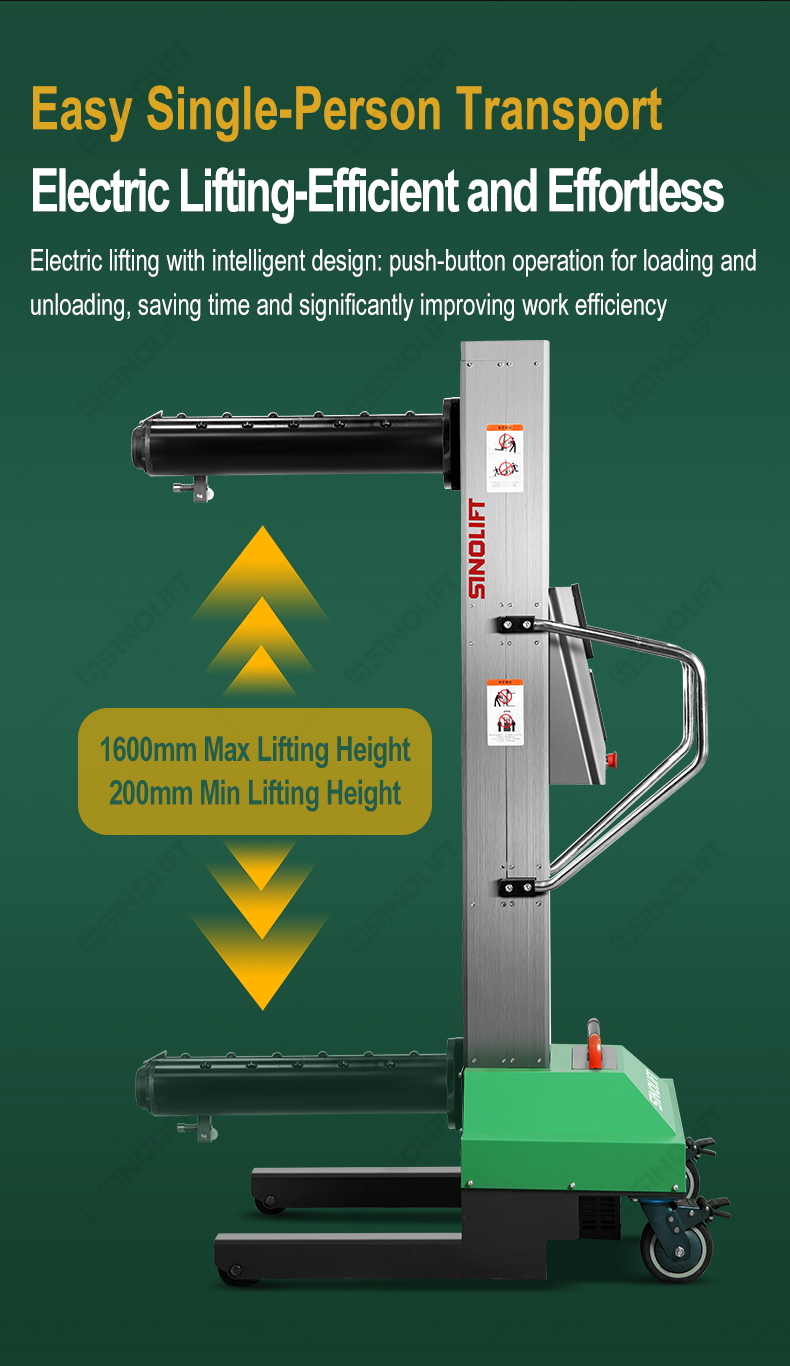

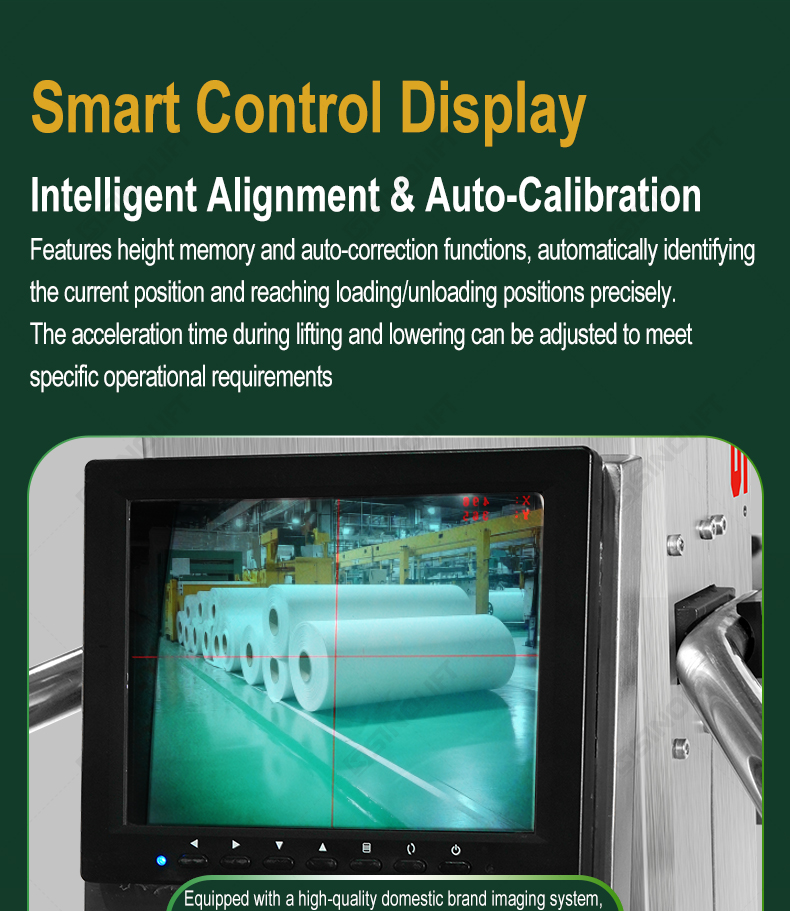

Intelligent & Electric Operation: Equipped with a 750W high-power lifting motor for effortless electric elevation (200mm to 1600mm). The smart control display offers features like height memory, auto-correction, and a crosshair guide for precise alignment, significantly boosting operational efficiency and safety.

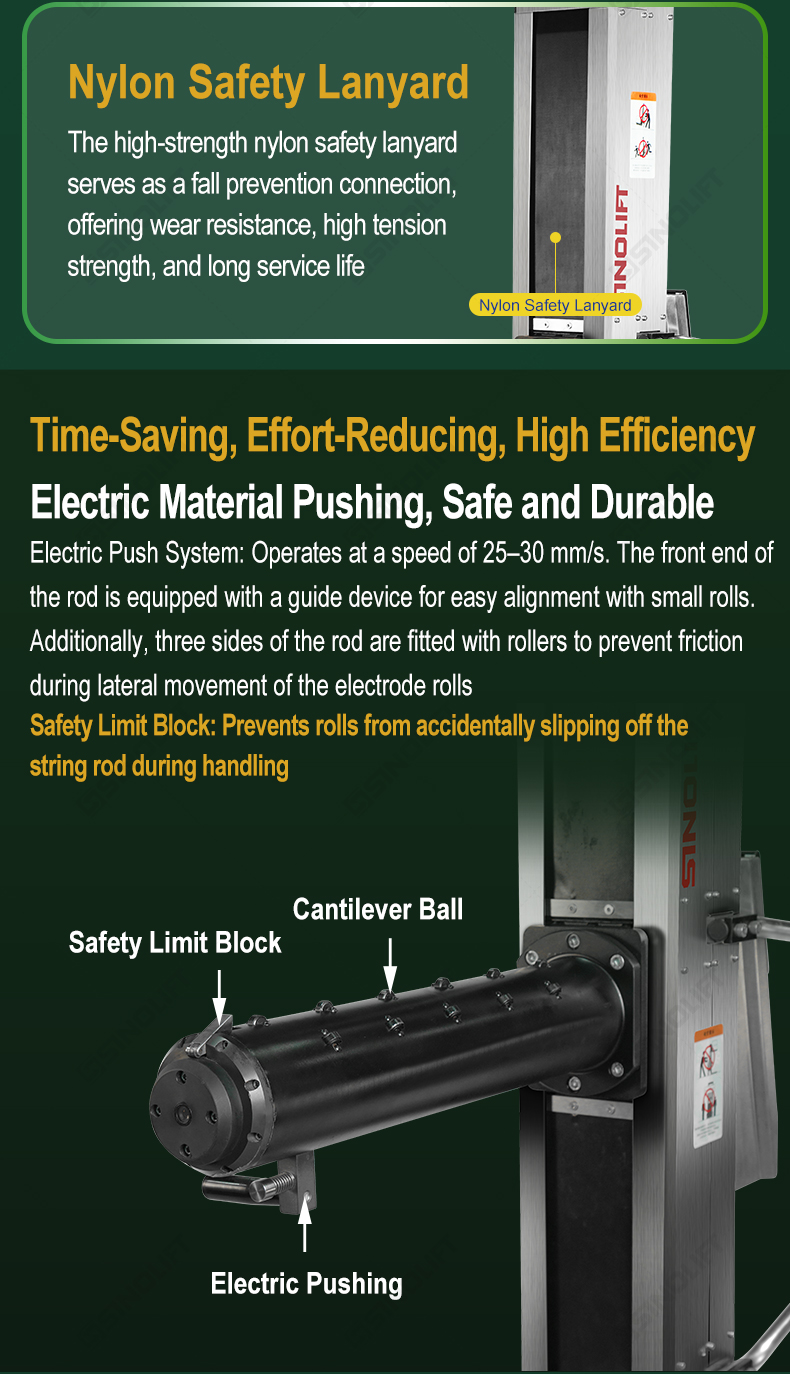

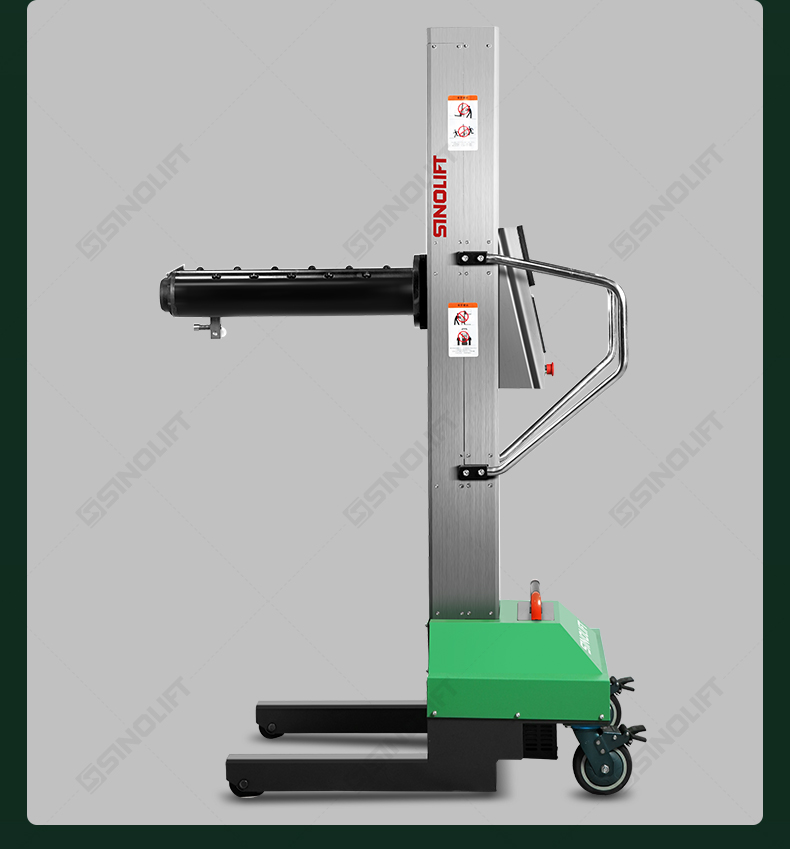

Gentle & Secure Material Handling: The unique ball-string rod design minimizes friction during the loading and transport of delicate rolls. An integrated safety limit block prevents loads from accidentally slipping off, ensuring secure handling of valuable materials like electrode rolls.

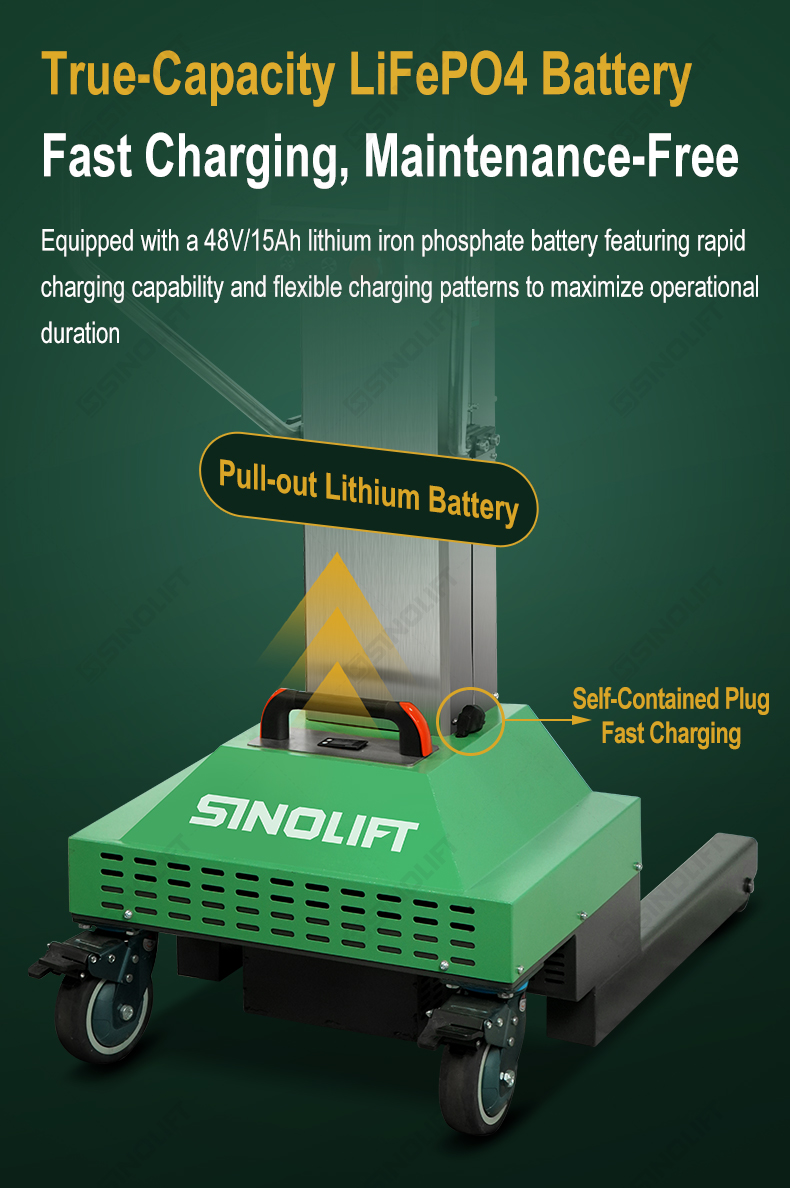

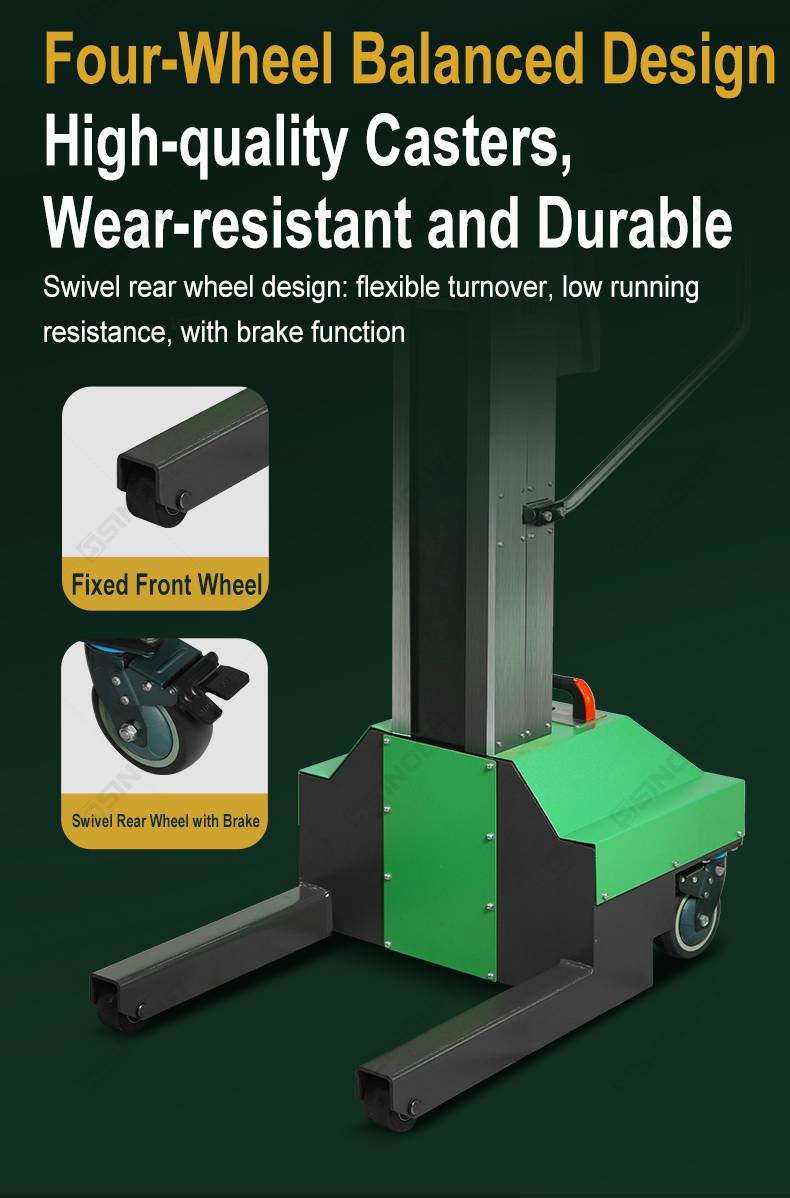

Practical & Versatile Configuration: It includes a pull-out 48V/15Ah LiFePO4 battery for fast charging and easy maintenance, along with a balanced four-wheel system (fixed front and swivel rear wheels with brakes) for smooth and stable maneuverability in various warehouse and production scenarios.
| Model | SH01 | |
| Type | Semi-Electric | |
| Drive Method | Ball Screw | |
| Rated Load | kg | 500 |
| Load Center | mm | 400 |
| Min. Height | mm | 200 |
| Max. Height | mm | 1600 |
| Overall Length | mm | 1260 |
| Overall Width | mm | 634 |
| Overall Height | mm | 1965 |

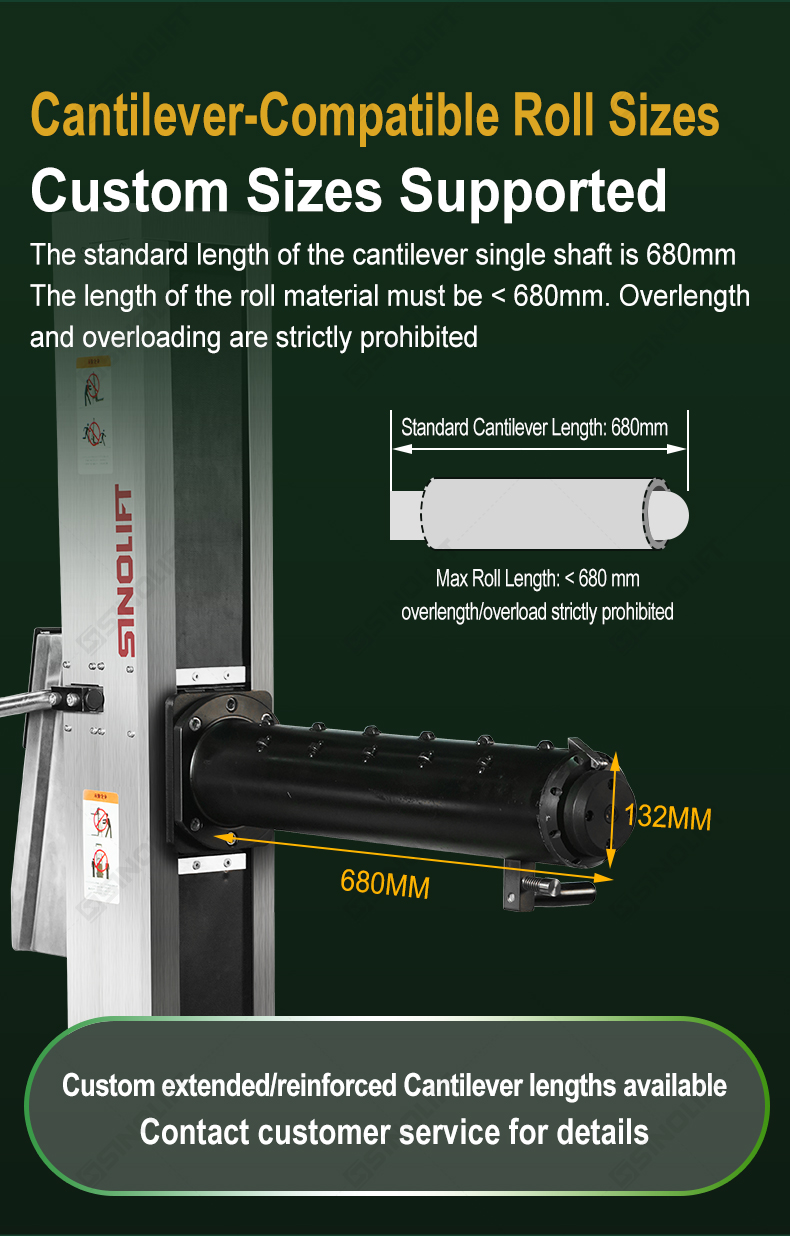

| Cantilever Specification | mm | 132×680 |
| Front Wheel Specification | mm | Φ80×55-2 |
| Rear Wheel Specification | mm | Φ150×50-2 |
| Lifting Motor | kW | DC 0.75 |
| Power Specification | V/Ah | DC 48/15Ah |
| Min. Turning Radius | mm | 1060 |
| Lifting Control Type | PLC Control | |
| Noise Level | DB | <70 |
| Steering Type | Mechanical | |
| Braking System | Dual Swivel AB Brake | |
| Net Weight | kg | 230 |
