Hydraulic Roller Lifter

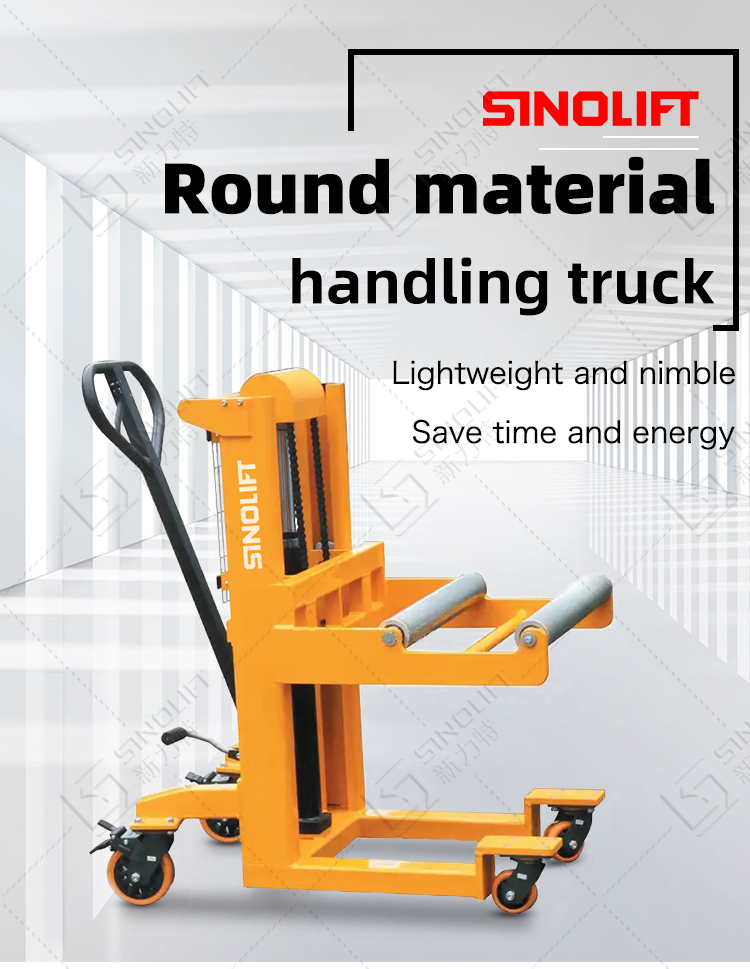

Sinolift MRL Hydraulic Roller Lifter equipment with hand pump

MRL
Hydraulic Roller Lifter and is designed to allow operators to feed media and fabric rolls into their machines directly from the lifter.
Quantity:
Contact Now
add to cart
All Products

Name:Hydraulic Roller Lifter

Features of Hydraulic Roller Lifter:

Hydraulic Roller Lifter and is designed to allow operators to feed media and fabric rolls into their machines directly from the lifter.

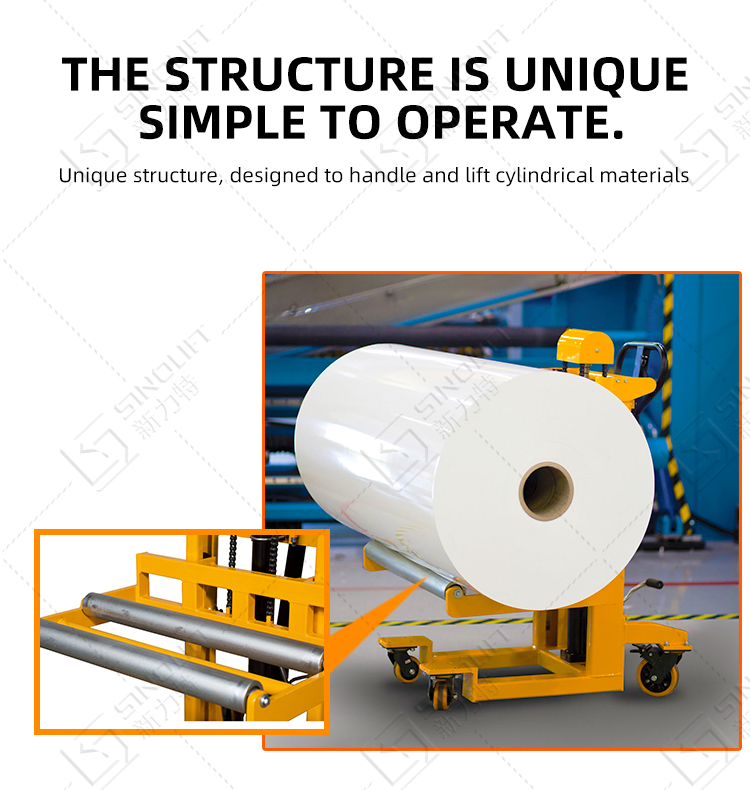

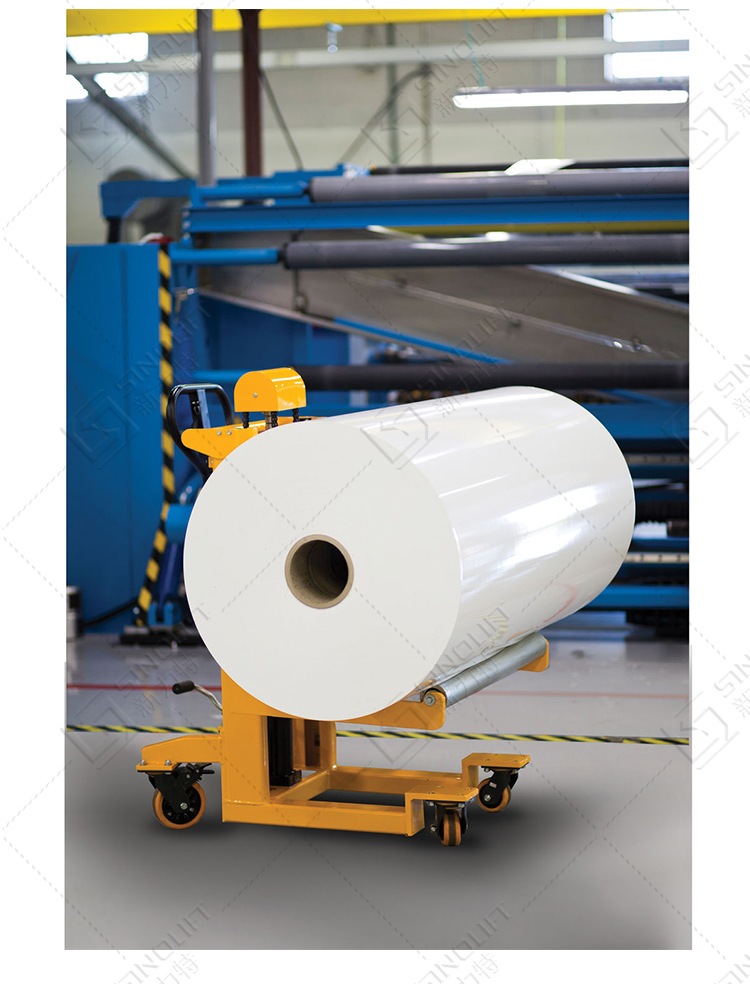

Hydraulic Roller Lifter are specially designed for handling rolls of different materials in industries such as printing, packaging, paper a more.

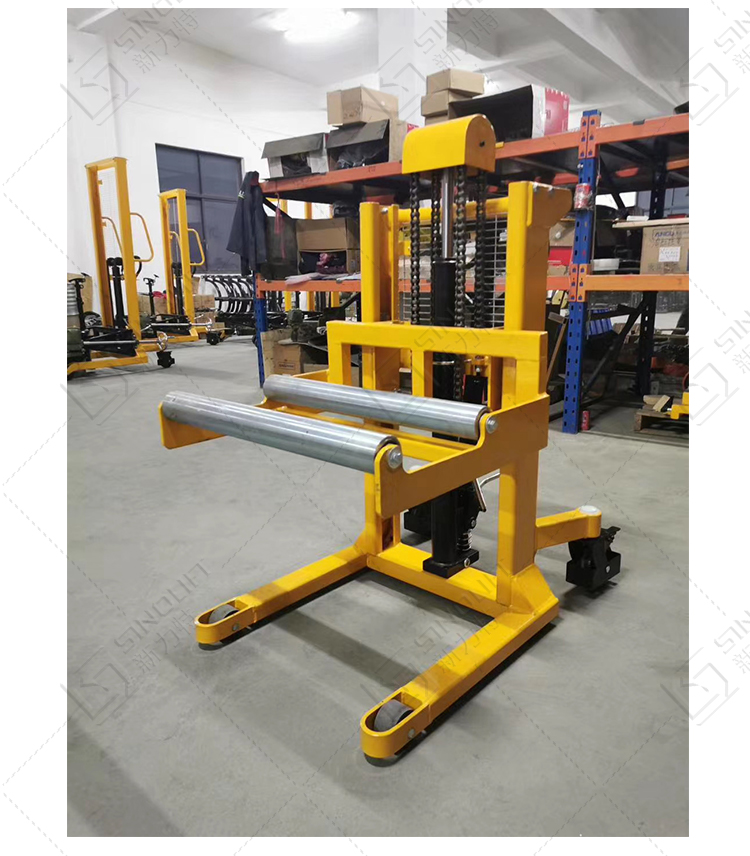

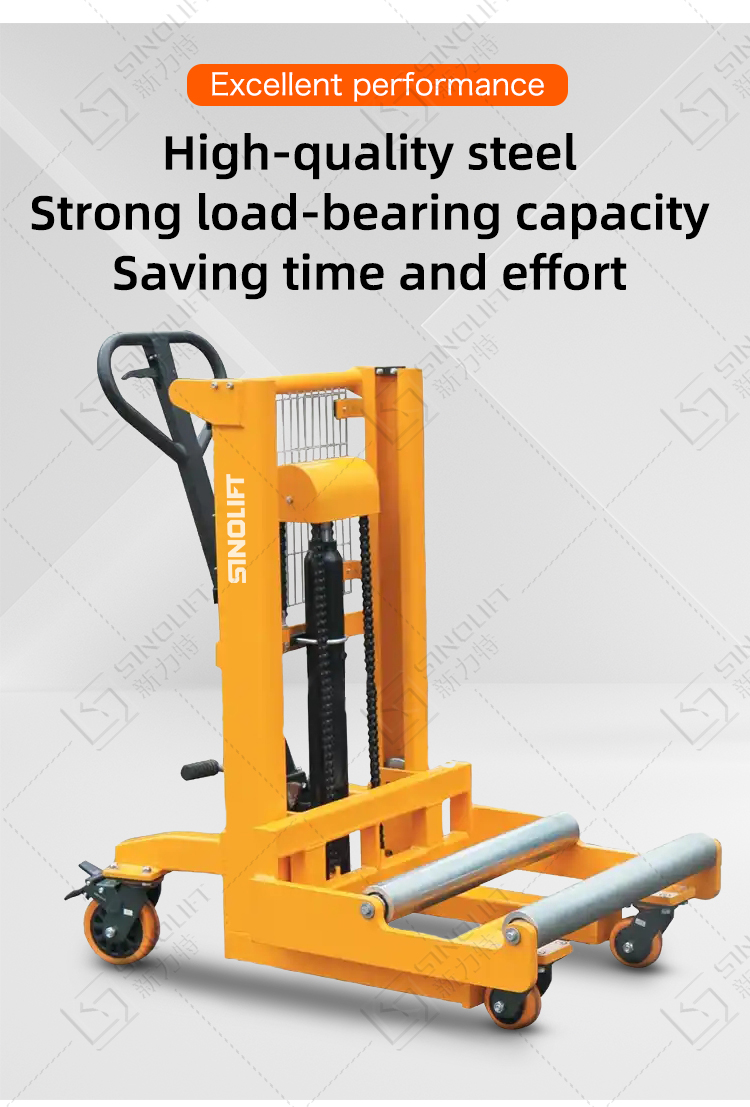

Hydraulic Roller Lifter is roll lifting equipment that allows a single operator to lift and transport rolls that are up to 1550mm width and weigh up to 1000kgs. The roll lifting equipment  maximum roll diameter is 800mm. Built-in ramp is at ground level when the roll lifting equipment  is lowered allowing for easy loading.

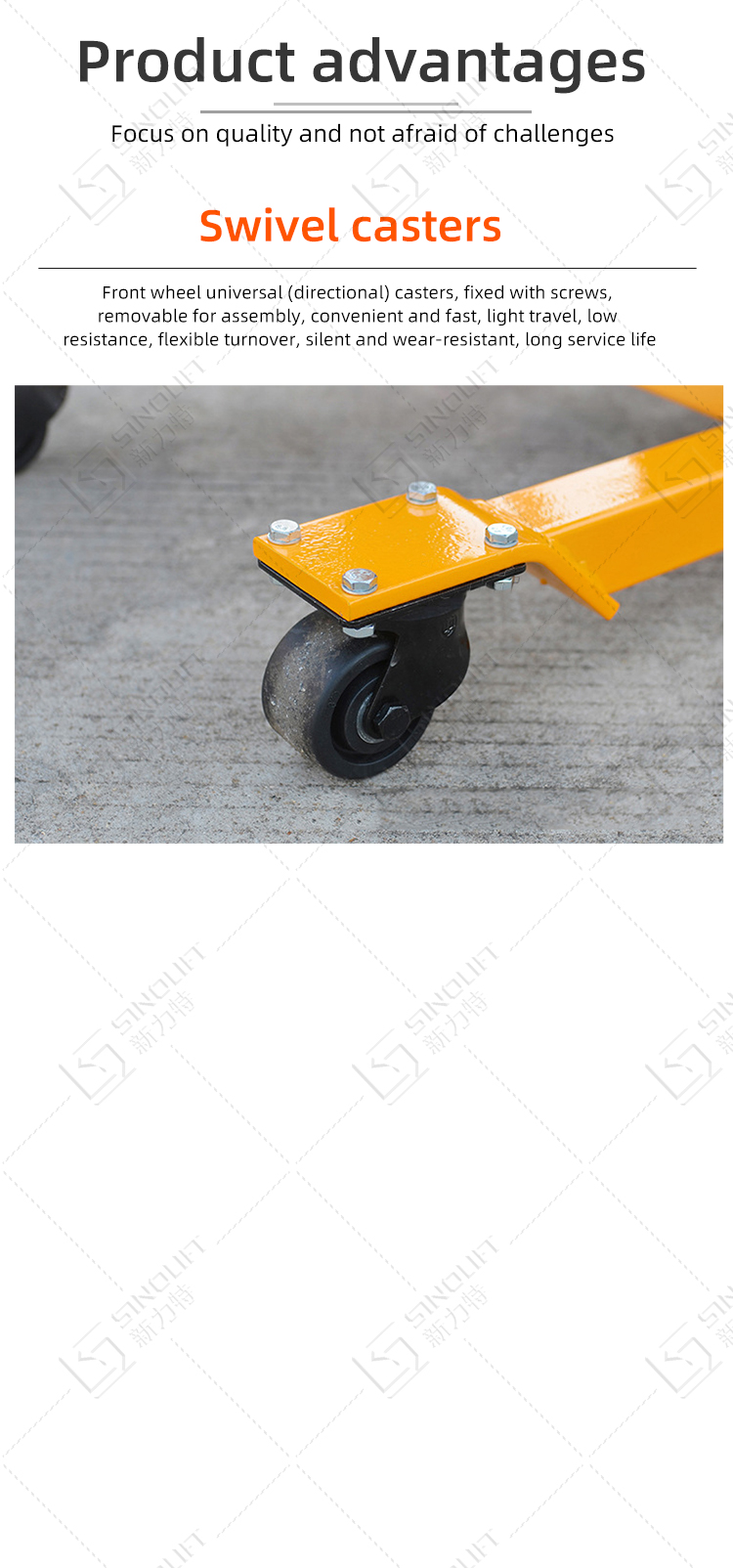

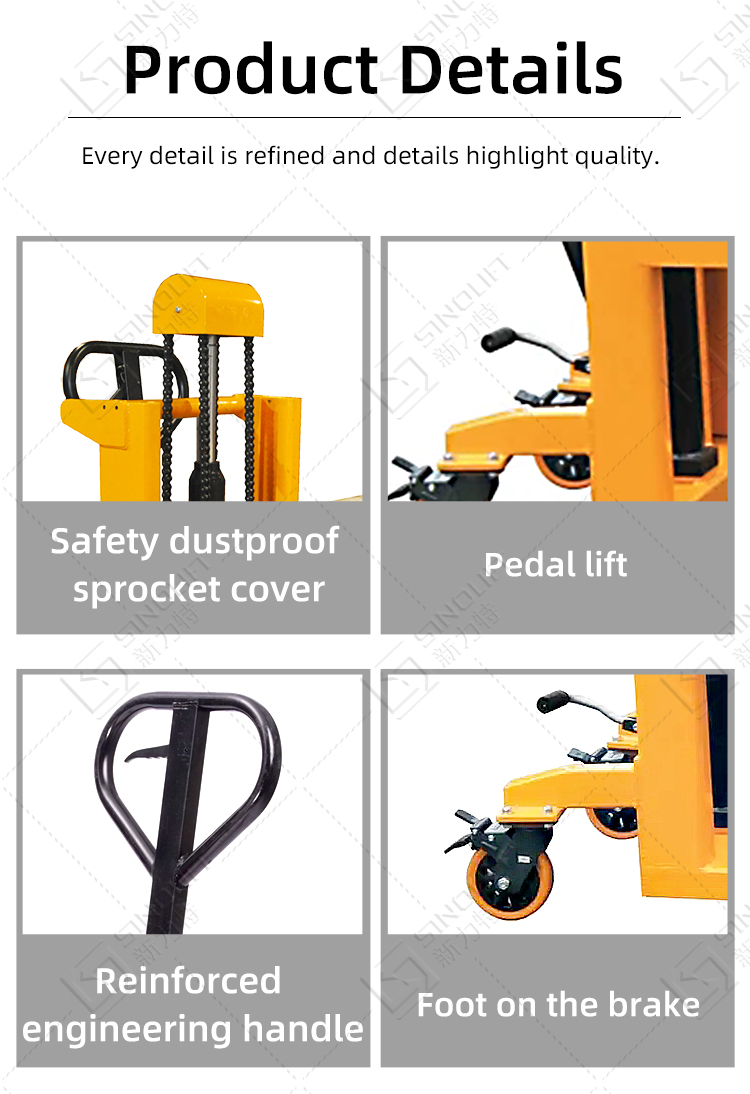

The SINOLIFT roll lifting equipment features heavy duty swivel casters for enhanced maneuverability and a foot brake to hold the lifter in place.

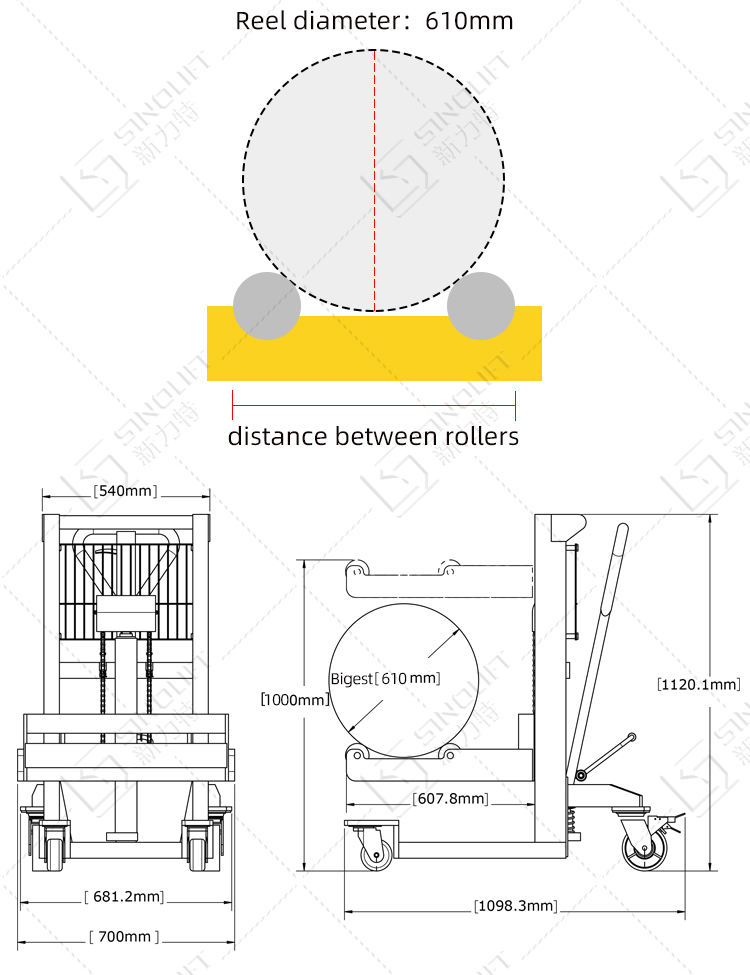

ModelMRL0786MRL1086MRL1015
OperationManual
Load capacity(kg)70010001000
Lifting Height(mm)8658651500
Max.width of reel/roll(mm)155015501550
Max.diameter of reel/roll(mm)800800800
Reel Tray Wdith(mm)700700700
Overall Length(mm)116511651350
Overall Wdith(mm)700700800
Overall Height(mm)113011302060
Net Weight(kg)150160220
