Beyond the Forklift: The Specialized Handling Solution for Lithium Battery Electrode Rolls
The rapid expansion of the new energy sector has placed unprecedented pressure on manufacturing logistics. In the production of lithium-ion batteries, the efficiency of the supply chain is not just about how fast raw materials arrive at the factory, but how safely and effectively they move within the factory. Among the most challenging items to transport is the electrode roll (or pole piece coil).
These rolls are the heart of the battery cell. They are heavy, dense, and cylindrical, yet their surfaces are incredibly sensitive to damage. A scratch on the foil or a dent in the edge can render thousands of dollars of material useless and compromise the safety of the final battery pack. Furthermore, the environment in which these rolls are handled—often clean rooms with narrow aisles—adds a layer of complexity that standard forklifts cannot address.
For facility managers and production engineers, selecting the right equipment is not a luxury; it is a necessity for reducing scrap rates and ensuring worker safety. This guide explores the critical factors in choosing an electrode roll lifter and how specialized equipment solves the specific pain points of the lithium industry.
The Hidden Risks of Manual and Generic Handling
In the early stages of production, or in smaller facilities, there is often a temptation to rely on manual handling or generic pallet jacks modified for the task. This approach is fraught with hidden costs.
First, the ergonomic risk is significant. Electrode rolls are dense. Repeatedly bending, lifting, and positioning these rolls leads to operator fatigue and injury. When a worker is tired, mistakes happen.
Second, generic forks are the enemy of cylindrical loads. Using a standard fork to lift a round object creates pressure points that can deform the inner layers of the electrode roll. Once deformed, the roll may not feed correctly into coating or slitting machines, leading to machine jams and downtime.
The industry solution lies in the "mandrel" or "spindle" style lifter. Unlike forks that lift from the bottom, a mandrel inserts through the core of the roll. This supports the weight evenly from the center, preventing surface contact and deformation. However, not all mandrel stackers are created equal.
Precision Positioning: The "Soft Landing" Requirement

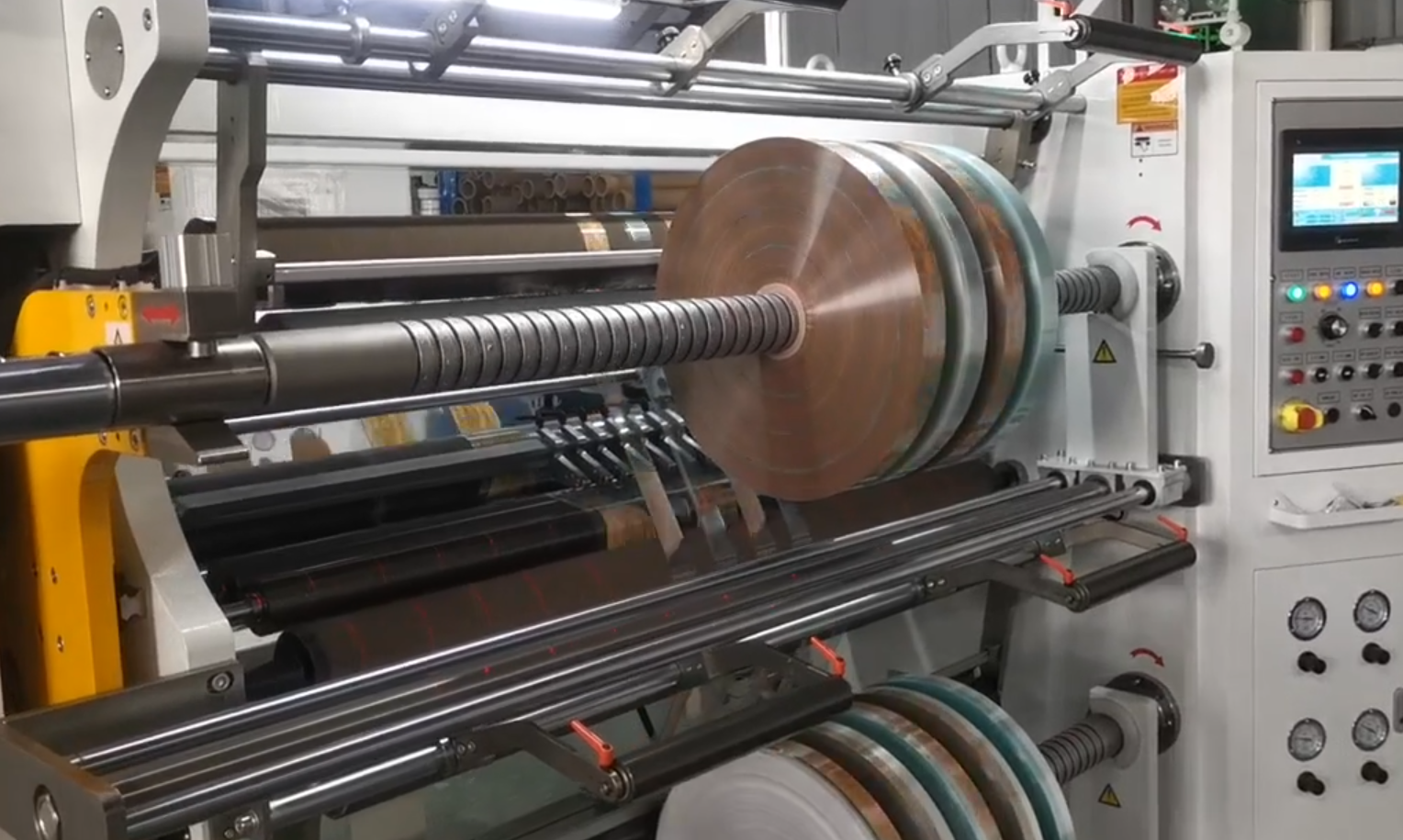

When loading an electrode roll onto a production machine, the margin for error is often measured in millimeters. The operator must align the roll’s core with the machine’s shaft perfectly.
If the lifting equipment is jerky or the hydraulic release is too sudden, the heavy roll can drop onto the machine shaft, damaging the bearings of the production equipment. This is where the hydraulic control system of your electrode roll lifter becomes critical.
Potential clients should look for equipment that offers:
- Variable Descent Speeds: The ability to lower the load rapidly when moving through the warehouse, but switch to a "micro-descent" or slow mode when aligning the material.
- Intelligent Controls: Electronic buttons are generally superior to manual release valves in this context because they eliminate the "human hand tremor" factor, providing a consistent, smooth lowering action.
Navigating the "Clean" Environment
Lithium battery production often takes place in controlled environments. Dust and particulate matter are major contaminants that can cause short circuits in battery cells. Therefore, the material handling equipment used must be designed to minimize particle generation.
The Floor Factor:
Most clean rooms utilize epoxy flooring to maintain hygiene. These floors are expensive and easily damaged by hard nylon wheels. Conversely, black rubber tires can leave marks and release particulate matter. The ideal solution is High-quality Polyurethane (PU) wheels. PU strikes the perfect balance: it is soft enough to protect the epoxy coating and provide shock absorption for the delicate load, yet hard enough to roll easily under heavy weight.
Dust Protection:
The equipment itself should have shielding. In a standard stacker, the moving chain and mast are exposed. Grease from the chain can attract dust, which then falls onto the electrode rolls. A specialized electrode roll lifter for this industry should feature a high-transparency dust shield (often made of Polycarbonate or PC). This serves a dual purpose: it prevents dust from the mast reaching the product, and it protects the operator from moving parts without blocking their line of sight.
The Mechanics of the Mandrel
The arm (or mandrel) is the only part of the lifter that touches your product. Its design is paramount.
A raw steel pole is insufficient. Friction is a major issue when sliding a heavy roll onto a steel shaft. If the operator has to force the roll, they risk "telescoping" the material (where the inner layers slide out).
Top-tier equipment utilizes a "roller mandrel" design. This involves embedding ball bearings or rollers along the top surface of the cantilever arm. These rollers allow the heavy roll to glide effortlessly onto the shaft. Furthermore, the material of the arm matters. A seamless tube that has been machine-finished, ground, and chrome-plated ensures there are no rough burrs to catch on the cardboard or plastic core of the roll.
Safety stops are also non-negotiable. An anti-fall baffle or limit pin at the end of the arm ensures that the roll cannot slide off during transport, even if the operator stops suddenly.
Maximizing Space in Narrow Aisles
Real estate in a battery factory is dedicated to production lines, not walkways. Aisles are notoriously narrow. A standard counterbalance forklift typically requires 3 to 4 meters of turning space. This is often impossible in a lithium battery plant.
Compact, electric stackers are the answer. By removing the counterweight and using support legs, the turning radius can be drastically reduced. When evaluating specs, look for a turning radius near the 1010mm to 1100mm mark. This allows the unit to spin practically within its own footprint, making it possible to maneuver 90-degree turns from a narrow corridor directly into the machine loading zone.
Durability and Maintenance-Free Operations
In a high-output facility, downtime for battery maintenance is a productivity killer. Old-style lead-acid batteries require watering and emit gas during charging—another "no-go" for strict clean rooms.
Modern electrode roll lifters should employ maintenance-free colloid or gel batteries. These are sealed, do not emit gas, and hold a charge longer.
Structurally, the mast of the stacker takes the brunt of the stress. While bent sheet metal is common in light-duty stackers, handling electrode rolls requires the rigidity of C-channel steel. This construction prevents the mast from twisting when the heavy roll is elevated, ensuring that the load remains perfectly horizontal for loading.

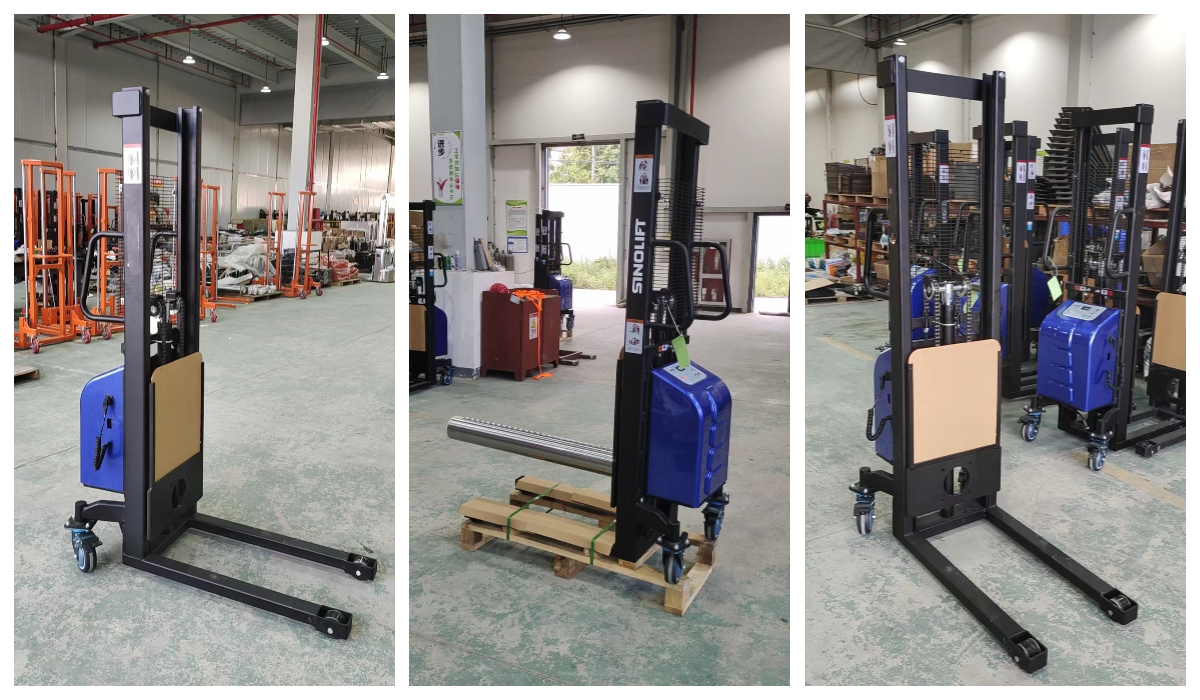

Sinolift Nd95c Intelligent Single-Arm Compact Electric Reel Stacker
For facilities looking to implement these best practices, the market offers various solutions, but few are as purpose-built as the equipment from Sinolift. Specifically, the Sinolift ND95C Intelligent Single-Arm Compact Electric Reel Stacker has been engineered directly in response to the challenges of the lithium battery sector.
This unit is not a modified pallet stacker; it is a dedicated electrode roll lifter designed to solve the specific "transportation problems" of high-value roll materials.
Engineered for the Roll
The ND95C features a specialized single-cantilever structure. The arm is crafted from a seamless tube that undergoes precision machining and high-grinding chrome plating for a bright, smooth finish. To address the friction issue, it incorporates a roller mandrel system with POM-coated guide wheels. This makes loading and unloading remarkably light and easy, preventing damage to the roll's core. Safety is ensured with a limit pin and a PU anti-collision ring at the tail, protecting both the roll and the surroundings.
Intelligent Control for Precision
What sets the ND95C apart is its intelligent operation panel. It moves beyond simple "up/down" levers:
- 3-Speed Descent: Operators can choose between fast, low-speed, and stop modes. The low-speed setting allows for the millimeter-precision alignment required when feeding coating machines.
- Electric Push-Pull: The lifting is fully electric, controlled by stainless steel touch buttons (optional) that are waterproof, dustproof, and durable.
- Safety Limits: The system strictly manages lifting heights (up to 1.6 meters) and prevents overload, ensuring the longevity of the equipment.
Built for the Factory Environment
The chassis is constructed using high-quality C-type channel steel, offering superior rigidity compared to standard bent plate masts. This stability is crucial when the roll is elevated. To meet clean room standards, the ND95C is equipped with a high-transparency PC dust-proof board. This board is impact-resistant and ensures that the lifting mechanism does not contaminate the sensitive electrode rolls.
Maneuverability and Build
Navigating tight spaces is effortless with a turning radius of just 1016mm. The unit glides on thickened, widened PU wheels. The rear swivel wheels are equipped with AB plastic brakes, while the directional front wheels absorb shock and reduce noise, making them perfect for epoxy floors.
Core Reliability
At the heart of the lifting mechanism is a GEKON high-quality hydraulic cylinder, ensuring leak-free, stable lifting. Power is provided by a colloid maintenance-free battery, eliminating the need for water refilling and ensuring long-lasting performance without the risk of acid leaks.
While the standard shaft length is 650mm (ideal for rolls under 650mm in width), Sinolift understands that production lines vary. The arm length and thickness can be customized to meet non-standard requirements.
For manufacturers ready to move away from clumsy manual handling and risk-prone generic forklifts, the ND95C offers a professional, "born for lithium" solution. It transforms the hazardous task of moving electrode rolls into a safe, one-person operation.
If you are ready to streamline your material handling and protect your valuable inventory, visit the product page to learn more about the Sinolift ND95C Intelligent Single-Arm Compact Electric Reel Stacker.
